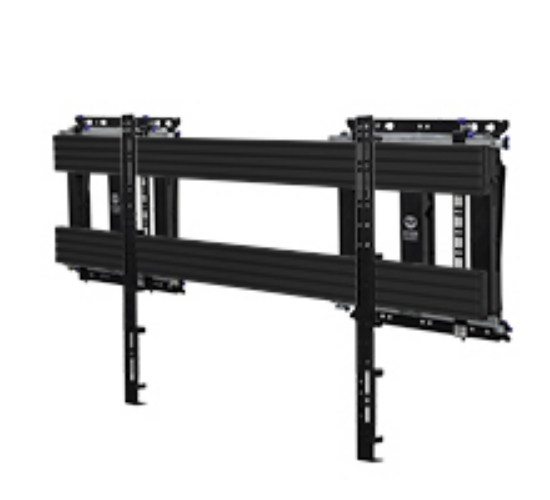

The BT9921 is a dual rail, pop-out wall mount solution designed for extra large signage displays such as the LG 110UM5J-B. Capable of supporting heavy loads, the BT9921 is ideal for recess mounting and features a soft opening for full service access, micro-adjustment for screen alignment and integrated cable management to help keep the finished installation tidy. Safety screws also help to prevent unauthorised removal of the screen.
Products specifications
| Harmonized System (HS) code | 83024200 |
| Product colour | Black |
| Orientation | Landscape |
| Easy to install | Yes |
| Adjustable depth | Yes |
| Depth adjustment range | 115.3 - 268.3 mm |
| Cable management | Yes |
| Maximum weight capacity | 80 kg |
| Minimum screen size | 182.9 cm (72") |
| Number of displays supported | 1 |
| Maximum screen size | 3.05 m (120") |
| Mounting | Screws |
| Mounting type | Wall |
| Maximum VESA mount | 1600 x 800 mm |
