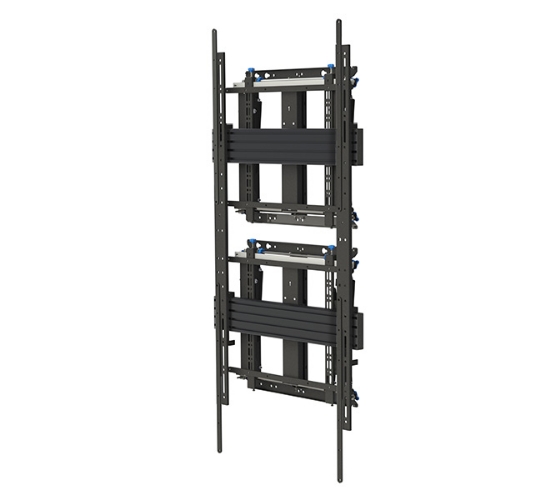

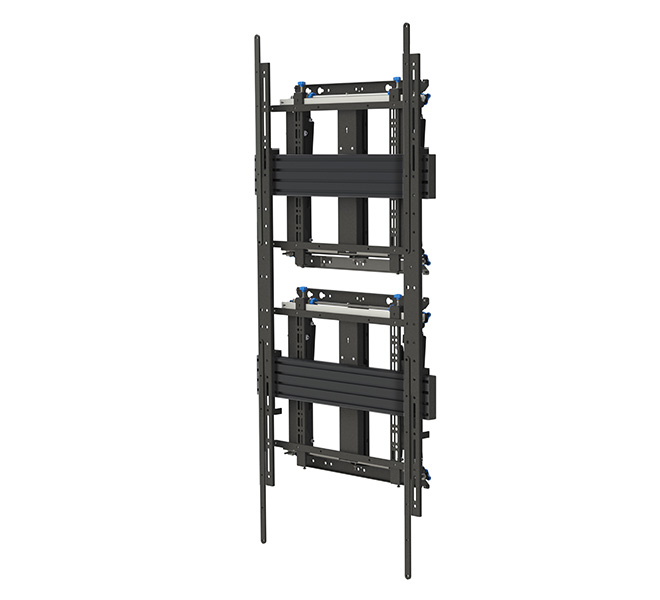

The BT9925 is a dual rail, pop-out wall mount solution designed for portrait mounting extra-large signage displays such as the LG 110UM5J-B. Capable of supporting heavy loads, the BT9925 is ideal for recess mounting and features a soft opening for full service access, micro-adjustment for screen alignment and integrated cable management to help keep the finished installation tidy. Safety screws also help to prevent unauthorised removal of the screen.
Products specifications
| Harmonized System (HS) code | 83024200 |
| Quantity per pack | 1 pc(s) |
| Mounting kit | Yes |
| Compliance certificates | cTUVus |
| Type | Fixed |
| Product colour | Black |
| Adjustable depth | Yes |
| Housing material | Steel |
| Cable management | Yes |
| Tilt adjustment | Yes |
| Certification | TUV |
| Maximum weight capacity | 80 kg |
| Minimum screen size | 182.9 cm (72") |
| Maximum screen size | 3.05 m (120") |
| Mounting type | Wall |
| Maximum VESA mount | 1500 x 600 mm |
| Panel mounting interface | 1500 x 600 mm |
| Number of displays supported | 1 |
