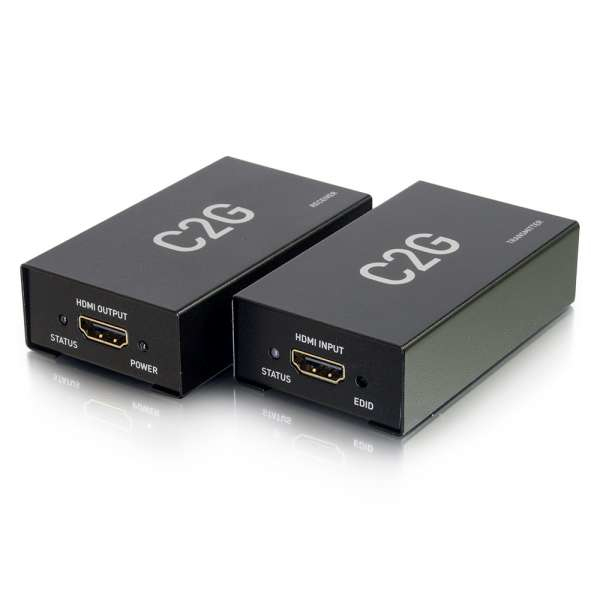

The HDMI over Cat5/6 extender is ideal for extending digital video and audio over long distances of up to 50 metres (164 feet), making it a great solution for digital signs, schools, churches, trade show presentations or other applications where the HDMI source is more than 15 metres (50 feet) from the display. The extender can also send HDMI signals over existing Cat5 or Cat6 cable infrastructure for cost-effective reliability, while maintaining high-performance quality and video resolutions of up to 1080p at 60Hz. With no drivers or software to install, the HDMI over Cat5/6 Extender provides total plug and play convenience. Simply connect the transmitter to the video source, the receiver to the display, and extend with a single category cable for quality video and audio.
Products specifications
| Type | AV transmitter |
| Cable types supported | Cat5, Cat6 |
| Supported video modes | 1080p |
| Bandwidth | 6.75 Gbit/s |
| Cable length | 1.5 m |
| 3D | Yes |
| Dimensions (WxDxH) | 49 x 84.5 x 24 mm |
| Weight | 480 g |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 0.5 A |
| Operating voltage (transmitter) | 5 V |
| Output current | 1 A |
| Compliance certificates | RoHS |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
