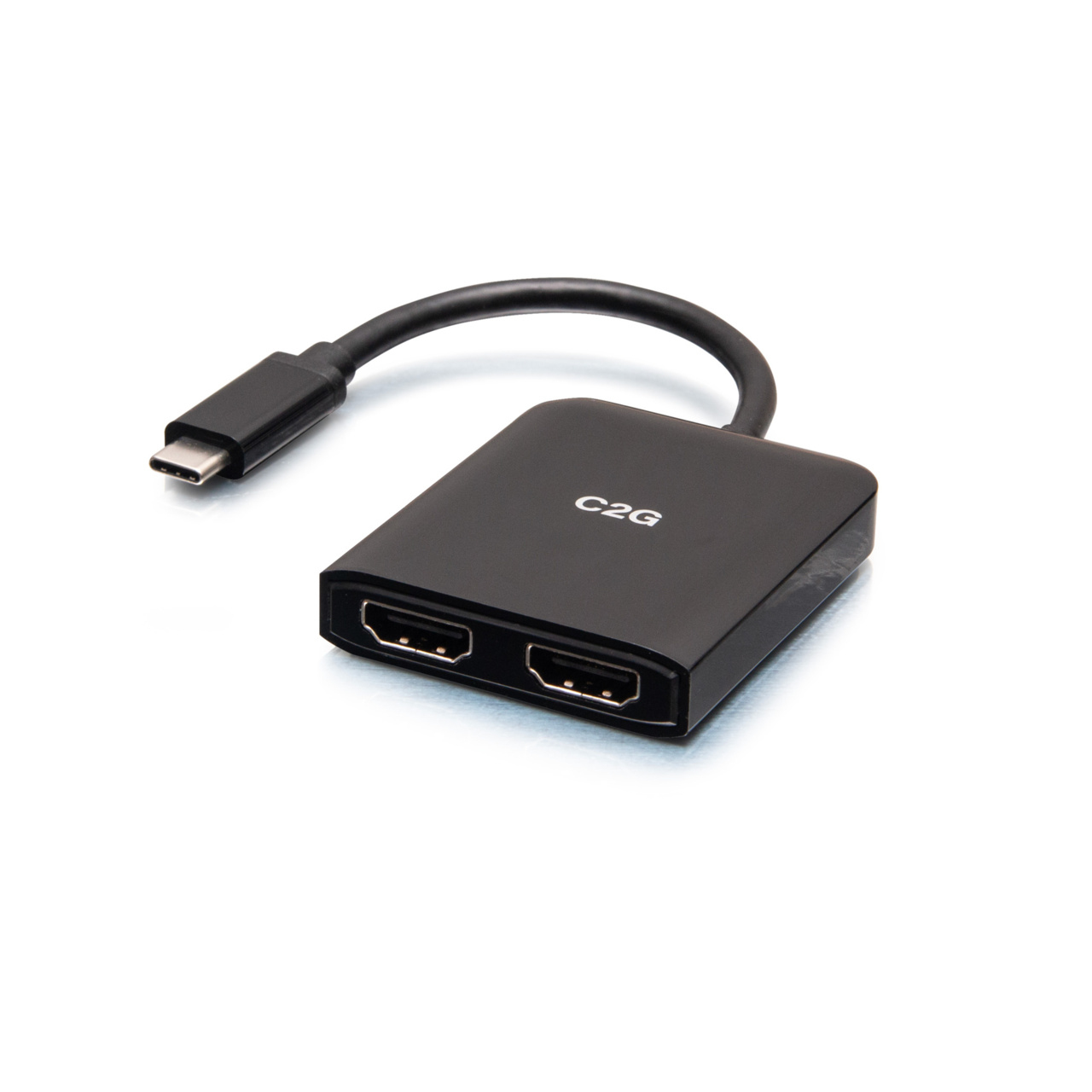

The USB-C to Dual HDMI MST Hub allows a USB-C enabled device to connect to two HDMI enabled displays for video mirroring, video extension, or viewing a single video image across two displays. The hub is perfect for graphic design, spreadsheet analysis, and digital signage applications. This MST hub is a perfect accessory for Microsoft® Surface® products and other leading laptops.
Improve multitasking and increase productivity by configuring the hub to work as a splitter with the same video image on each display, extending a video image to multiple displays, or expanding a video image by joining multiple monitors together as one display. The hub is ideal for a multiple display desk setup and the lightweight, small form factor, also makes it easy to carry while traveling or just on the go.
The hub supports resolutions up to 4K (3840 x 2160) at 60Hz when connected to a single or dual display and has a max bandwidth of 32.4Gbps.
Notes:
This MST hub uses DP Alt Mode. The source device video card and display must support DP Alt Mode and MST.
Maximum resolutions are limited by the capabilities of the connected source’s graphic card.
When connecting to Chromebooks and MacBooks, the desktop image can be extended to two monitors with a single video stream, meaning that you will see two identical images on the two extended monitors.
Products specifications
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Product colour | Black |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| Conductor material | Copper |
| Integrated USB cable | Yes |
| AWG wire size | 32 |
| USB connector type | USB Type-C |
| USB connector gender | Male |
| USB connector form factor | Straight |
| DVI output | No |
| HDMI output | No |
| DisplayPort output | Yes |
| Number of displays supported | 2 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| Maximum resolution | 3840 x 2160 pixels |
| Refresh rate at maximum resolution | 60 Hz |
| Chipset | VL103 |
| Data transfer rate (max) | 32.4 Gbit/s |
