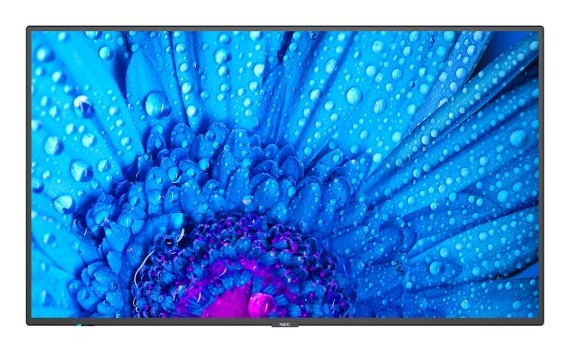

Intuitive professional content delivery
Great first impressions can make all the difference; presenting your business in the best possible way will boost your brand. With slim, modern styling, 24/7 operation and high haze panel to reduce reflections when ambient light is high, the M series is the professional way to deliver your message, yet at an attractive price point.
With the optional NEC MediaPlayer or the more powerful Intel® Smart Display Module (Intel® SDM) computing device, you are primed and ready for intuitive signage creation delivering real-time media playback for exceptional visual experiences. For advertising, infotainment and meeting room applications, the M Series provides powerful, upgradable functionality and all the aesthetic appeal to effortlessly reflect your brand credentials.
Benefits
Unhindered readability – no reflections from windows or other light sources means no disruption to the visibility of signage content or meeting room presentation
Enhanced imaging performance – advanced settings of all relevant visual parameters allow full control of brightness, colour, gamma and uniformity via the SpectraView Engine for precise, natural images.
Mission-critical 24/7 ready operation – the meticulous selection of industrial-grade components and careful design focused on demanding usage scenarios accompany an impressive and continuous viewer experience.
Future Ready Connectivity – featuring multiple industry standard digital and analogue signal inputs for flexible integration into AV infrastructures.
Secure remote management – control your devices remotely and securely using NEC NaviSet Administrator 2; proactively manage maintenance requirements saving time and resources
Products specifications
| Base material | Metal |
| Display width | 1250.2 mm |
| Display depth | 84.3 mm |
| Display height | 1250.2 mm |
| Display weight | 67 kg |
| Package width | 2350 mm |
| Package depth | 310 mm |
| Package height | 1400 mm |
| Package volume | 98700 cm³ |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 80% |
| Power consumption (typical) | 340 W |
| Power consumption (standby) | 0.5 W |
| Energy efficiency class (SDR) | F |
| Energy efficiency class (HDR) | F |
| Energy consumption (SDR) per 1000 hours | 205 kWh |
| Energy consumption (HDR) per 1000 hours | 180 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Energy efficiency scale | A to G |
| HDMI ports quantity | 3 |
| HDMI input ports quantity | 2 |
| HDMI output ports quantity | 1 |
| DVI port | No |
| DisplayPorts quantity | 3 |
| DisplayPorts in | 2 |
| DisplayPorts out | 1 |
| USB port | Yes |
| USB ports quantity | 2 |
| USB version | 2.0 |
| USB connector type | USB Type-B |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| RS-232 interface | Yes |
| PC Audio out | Yes |
| Product design | Digital signage flat panel |
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 600 x 400 mm |
| Bezel width (bottom) | 1.43 cm |
| Bezel width (top) | 1.48 cm |
| Purpose | Corporate |
| HDCP | Yes |
| Panel type | IPS |
| LED backlight | Yes |
| LED backlighting type | Direct-LED |
| Display diagonal | 2.49 m (98") |
| Display technology | LCD |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 500 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen | No |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 8000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.073 billion colours |
| Display diagonal (metric) | 248 cm |
| Horizontal scan range | 15 - 135 kHz |
| Vertical scan range | 23 - 76 Hz |
| Native refresh rate | 60 Hz |
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC, HDMI |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
