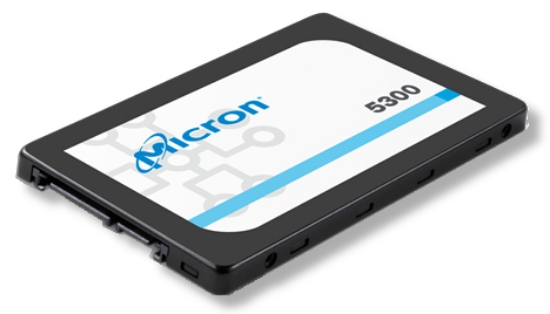

The ThinkSystem 5300 Mainstream SATA 6Gb solid-state drives (SSDs) use Micron 96-layer 3D NAND flash memory technology with a 6Gbps SATA interface. They provide an affordable solution for mixed read/write applications such as cache in transactional applications and high-speed storage for enterprise databases.
Products specifications
| Security algorithms | 256-bit AES |
| SSD capacity | 240 GB |
| SSD form factor | 3.5" |
| Interface | Serial ATA III |
| Memory type | 3D TLC NAND |
| Component for | Server/workstation |
| Hardware encryption | Yes |
| Data transfer rate | 6 Gbit/s |
| Read speed | 540 MB/s |
| Write speed | 380 MB/s |
| Random read (4KB) | 82000 IOPS |
| Random write (4KB) | 60000 IOPS |
| Read latency | 175 µs |
| Write latency | 300 µs |
| S.M.A.R.T. support | Yes |
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 3000000 h |
| Certification | Micron Green Standard Built with sulfur resistant resistors CE (Europe): EN 55032 Class B, RoHS FCC: CFR Title 47, Part 15 Class B UL: UL-60950-1, 2nd Edition BSMI (Taiwan): approval to CNS 13438 RCM (Australia, New Zealand): AS/NZS CISPR32 Class B KCC RRL (Korea): approval to KN 32 Class B, KN 35 Class B W.E.E.E.: Compliance with EU WEEE directive 2002/96/EC. TUV (Germany): approval to IEC60950/EN60950 VCCI (Japan): 2015-04 Class B IC (Canada): CISPR32 Class B: Canadian ICES-003:2016 |
| Width | 257 mm |
| Depth | 193 mm |
| Height | 95 mm |
| Weight | 484 g |
| Harmonized System (HS) code | 84717070 |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Non-operating shock | 1.5 G |
| Power consumption (read) | 2.5 W |
| Power consumption (write) | 3 W |
