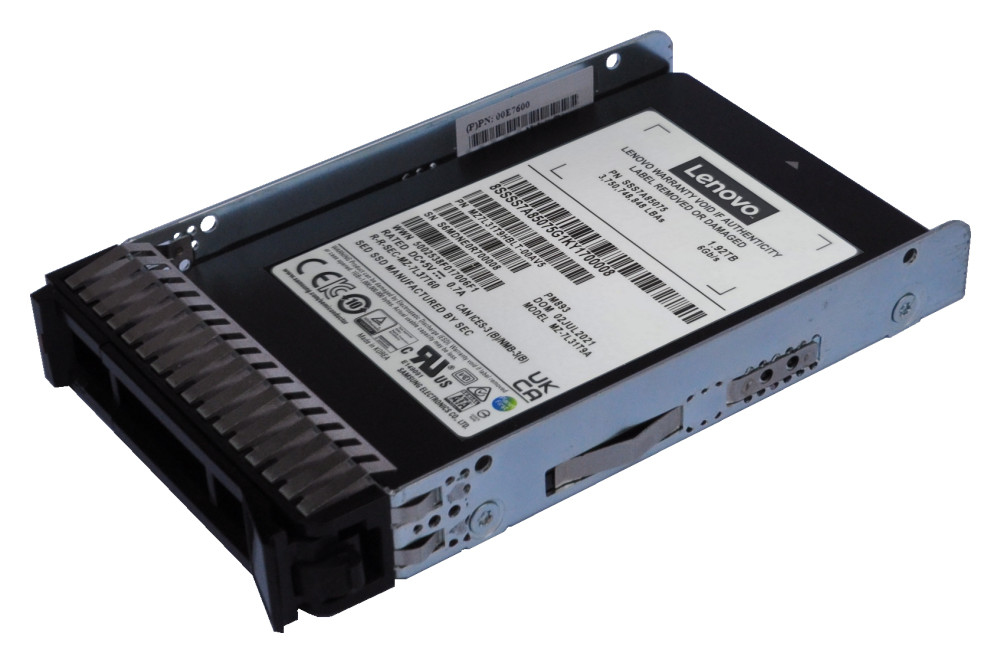

The ThinkSystem PM893 Read Intensive SATA SSDs are general-purpose SSDs based on the Samsung PM893 platform and are available in capacities ranging from 480GB to 7.86TB. They are engineered for greater performance and endurance in a cost-effective design, and to support a broader set of workloads.
This product guide provides essential presales information to understand the PM893 SSDs and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions.
Products specifications
| SSD capacity | 960 GB |
| SSD form factor | 2.5" |
| Interface | Serial ATA III |
| Memory type | V-NAND TLC |
| Component for | Server/workstation |
| Hardware encryption | No |
| Data transfer rate | 6 Gbit/s |
| Random read (4KB) | 98000 IOPS |
| Random write (4KB) | 31000 IOPS |
| Random latency - read (up to) | 120 µs |
| Random latency - write (up to) | 40 µs |
| S.M.A.R.T. support | Yes |
| Hot-swap | Yes |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Mean time between failures (MTBF) | 2000000 h |
| Drive writes per day (DWPD) | 1 |
| Certification | UL TUV FCC CE Mark C-Tick Mark BSMI (Taiwan) KCC (Korea EMI) |
| Width | 70 mm |
| Depth | 100 mm |
| Height | 7 mm |
| Weight | 58 g |
| Package width | 133 mm |
| Package depth | 174 mm |
| Package height | 63 mm |
| Package weight | 433 g |
| Operating temperature (T-T) | 0 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Non-operating vibration | 20 G |
| Non-operating shock | 1500 G |
| Maximum operating altitude | 3050 m |
| Power consumption (read) | 2.2 W |
| Power consumption (write) | 3.2 W |
