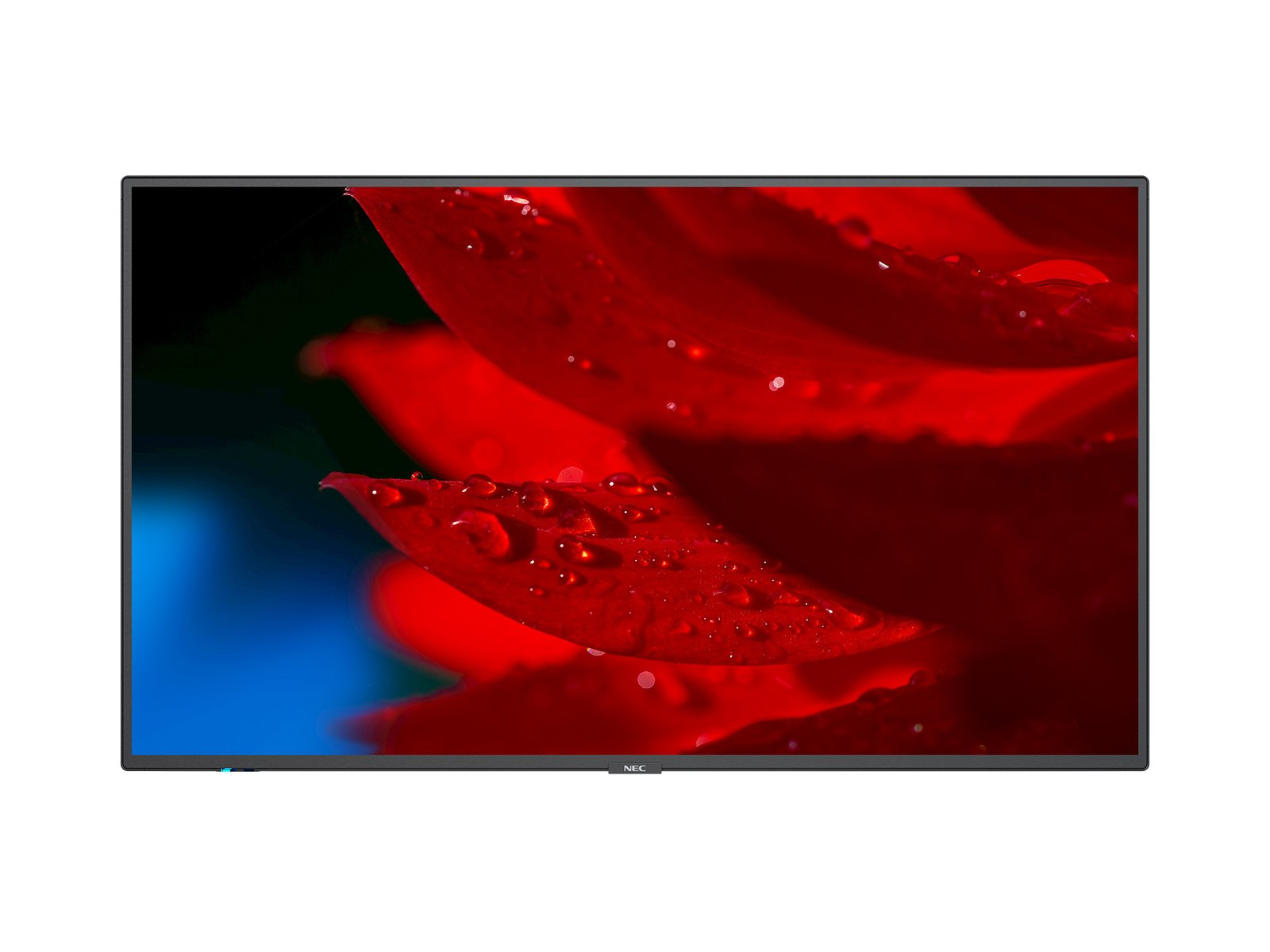

When true-to-life colour rendition is essential, the MA Series’ advanced feature set delivers calibrated precision, without compromise. For specialist applications, the wide colour gamut panel, SpectraView engine technology and 8K signal processing, positions the MA series at the high end of professional content delivery.
The MA series’ modular design includes Intel Smart Display Module (Intel SDM) technology integrated into the display, facilitating powerful media playback for the most intuitive signage creation and delivery. Featuring an integral audio amplifier, multi-picture mode technology and extensive connectivity including video out, the MA series offers versatile functionality for corporate signage and prestige retail applications.
Products specifications
| Display width | 1103.4 mm |
| Display depth | 61.1 mm |
| Display height | 636.2 mm |
| Display weight | 22.9 kg |
| Harmonized System (HS) code | 85285210 |
| Package width | 1298 mm |
| Package depth | 203 mm |
| Package height | 860 mm |
| Package volume | 29800 cm³ |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Power consumption (typical) | 85 W |
| Power consumption (standby) | 2 W |
| Power consumption (off) | 0.5 W |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | G |
| Energy consumption (SDR) per 1000 hours | 102 kWh |
| Energy consumption (HDR) per 1000 hours | 95 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Sustainability certificates | ENERGY STAR |
| HDMI ports quantity | 3 |
| HDMI input ports quantity | 2 |
| HDMI output ports quantity | 1 |
| DisplayPorts quantity | 3 |
| DisplayPorts in | 2 |
| DisplayPorts out | 1 |
| USB port | Yes |
| USB ports quantity | 3 |
| USB version | 2.0 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet LAN data rates | 100 Mbit/s |
| Audio (L/R) out | 1 |
| RS-232 interface | Yes |
| Product design | Digital signage flat panel |
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 300 x 300 mm |
| Bezel width (bottom) | 1.56 cm |
| Bezel width (side) | 1.25 cm |
| Bezel width (top) | 1.2 cm |
| Purpose | Universal |
| Picture-in-Picture | Yes |
| Ambient light sensor | Yes |
| Operating hours (hours/days) | 24/7 |
| HDCP | Yes |
| International Protection (IP) code | IP5X, IP2X |
| Panel type | IPS |
| LED backlight | Yes |
| LED backlighting type | Edge-LED |
| Display diagonal | 124.5 cm (49") |
| Display technology | LCD |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 500 cd/m² |
| HD type | 4K Ultra HD |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 8000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display diagonal (metric) | 124 cm |
| Horizontal scan range | 15 - 135 kHz |
| Vertical scan range | 23 - 76 Hz |
| Native refresh rate | 60 Hz |
| Haze rate | 28% |
