Reliable touch performance for budget-driven usage

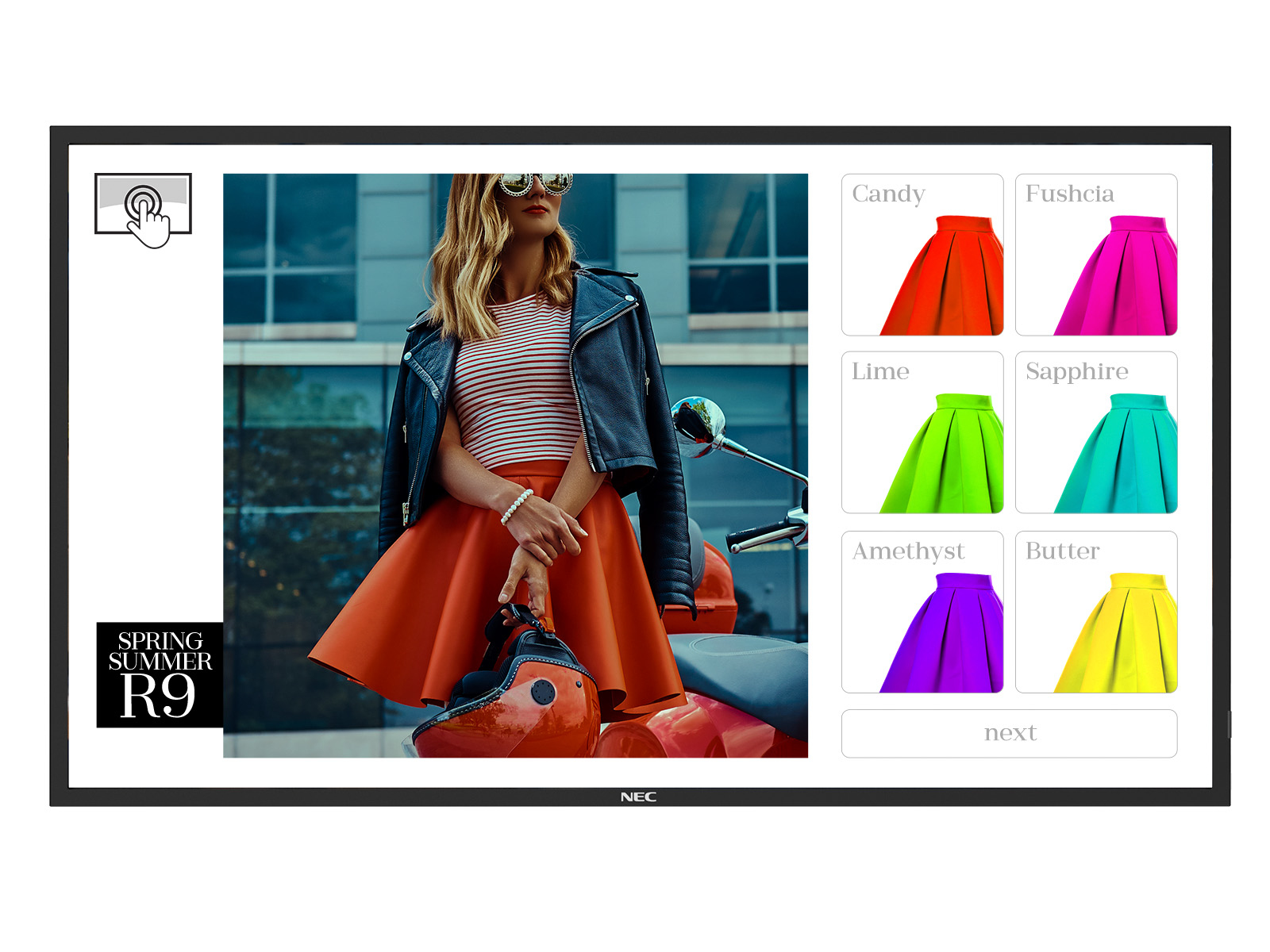

Offering a professional feature set and Sharp/NEC’s renowned high reliability, yet at a very attractive price point, the NEC ME series with infrared touch delivers a satisfying user experience with a fast and precise touch response. Only commercial-grade displays are capable of delivering reliable, longlife performance and the ME series presents lower budget business operators the upgrade path to professional interactive digital signage without requiring specialist expertise
Thanks to Sharp/NEC’s modular computing approach and compatibility with all major operating systems, the ME series infrared touch provides all the flexibility you need to address all kinds of different use cases. Capable of landscape or portrait orientation and up to 18/7 hours continuous operation, the M series with infrared touch is designed for local retailers, restaurants and small business enterprises to assist shoppers, take orders and facilitate interaction in small meeting spaces.
Products specifications
| Base material | Metal |
| Display width | 1146.4 mm |
| Display depth | 85.7 mm |
| Display height | 667 mm |
| Display weight | 27 kg |
| Package width | 1298 mm |
| Package depth | 224 mm |
| Package height | 860 mm |
| Package weight | 33.8 kg |
| Operating temperature (T-T) | 0 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Power consumption (typical) | 85 W |
| Power consumption (standby) | 0.5 W |
| Energy consumption (SDR) per 1000 hours | 85 kWh |
| AC input voltage | 100-240 V |
| AC input frequency | 50/60 Hz |
| Certification | CE; EMC Class B; REACH; RoHS SO 9241-307, Class 1 |
| HDMI ports quantity | 4 |
| HDMI input ports quantity | 2 |
| HDMI output ports quantity | 2 |
| DVI port | No |
| DisplayPorts quantity | 2 |
| DisplayPorts in | 1 |
| DisplayPorts out | 1 |
| USB port | Yes |
| USB ports quantity | 1 |
| USB version | 2.0 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 10 W |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100 Mbit/s |
| Wi-Fi | No |
| RS-232 interface | Yes |
| DC-in jack | Yes |
| Audio Return Channel (ARC) | Yes |
| Product design | Kiosk design |
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 400 x 400 mm |
| Bezel width (bottom) | 2.53 cm |
| Bezel width (side) | 2.53 cm |
| Bezel width (top) | 2.53 cm |
| Purpose | Retail |
| Operating hours (hours/days) | 18/7 |
| HDCP | Yes |
| International Protection (IP) code | IP5X, IP2X |
| Panel type | IPS |
| LED backlight | Yes |
| LED backlighting type | Direct-LED |
| Display diagonal | 127 cm (50") |
| Display technology | LED |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 400 cd/m² |
| Touchscreen | Yes |
| Touchscreen technology | Infrared |
| Number of simultaneous touchpoints | 20 |
| Multi-touch | Yes |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 8000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.073 billion colours |
| Display diagonal (metric) | 125.7 cm |
| Horizontal scan range | 26 - 135 kHz |
| Vertical scan range | 23 - 86 Hz |
| Native refresh rate | 60 Hz |
| Surface hardness | 7H |
| Touch response time | 5 ms |
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | HDMI, Power, USB |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 10 W |
| Computer system | Yes |
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Video formats supported | MP4, MPG, TS |
| Audio formats supported | AAC, LPCM, MP3, WMV |
| Image formats supported | JPG |
