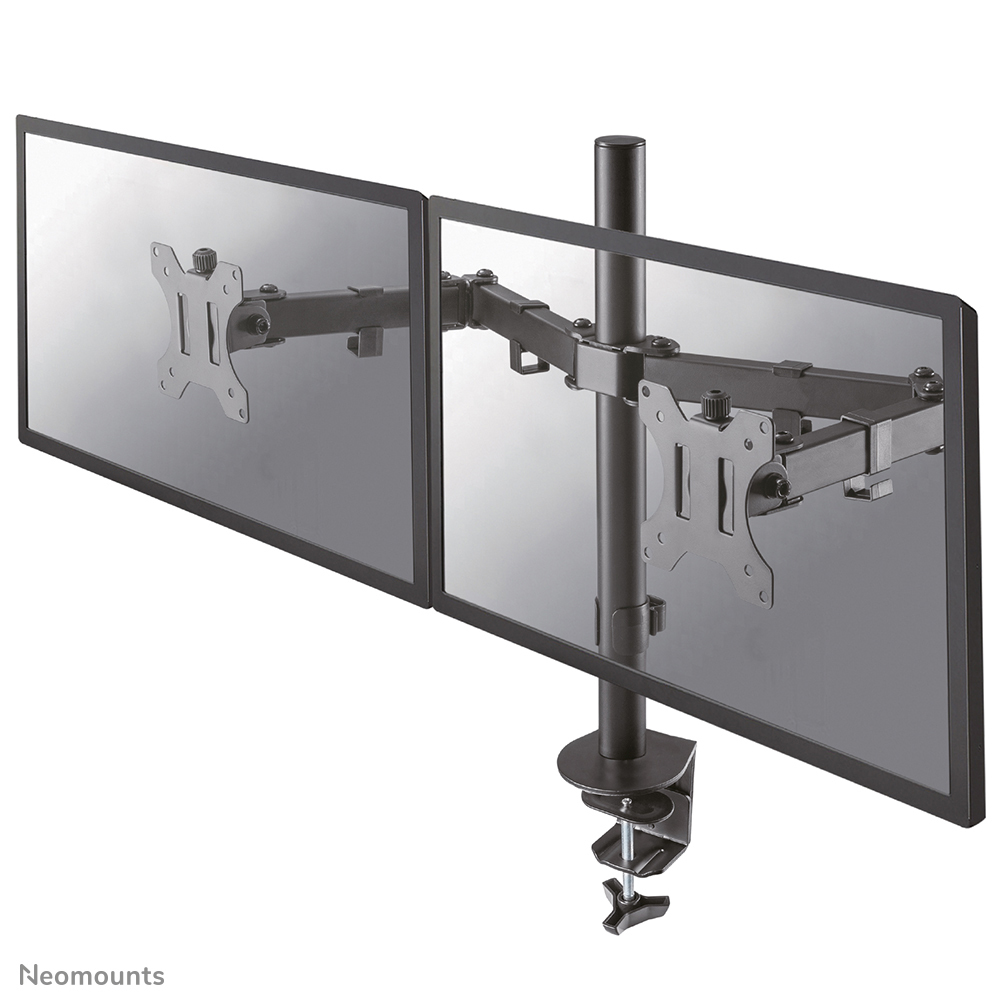

The Neomounts desk mount, model FPMA-D550DBLACK is a tilt-, swivel and rotatable desk mount for 2 flat screens up to 32". This mount is a great choice for space saving placement on desks using a desk clamp or grommet mount.
Neomounts versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 0 to 44 centimetres. Depth adjustable from 4 to 46 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.
Neomounts FPMA-D550DBLACK has three pivot points and is suitable for screens up to 32". The weight capacity of this product is 8 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
Products specifications
| Width | 800 mm |
| Depth | 460 mm |
| Height | 440 mm |
| Weight | 4.32 kg |
| Width adjustment range | 0 - 800 mm |
| Master (outer) case width | 265 mm |
| Master (outer) case length | 375 mm |
| Master (outer) case height | 505 mm |
| Master (outer) case gross weight | 4.8 kg |
| Products per master (outer) case | 4 pc(s) |
| Country of origin | China |
| Master (outer) case net weight | 3.8 kg |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 96 pc(s) |
| Package width | 190 mm |
| Package depth | 120 mm |
| Package height | 489 mm |
| Package weight | 4.8 kg |
| Housing material | Steel |
| Product colour | Black |
| Height adjustment | Yes |
| Height adjustment type | Manual |
| Height adjustment range | 0 - 440 mm |
| Adjustable depth | Yes |
| Depth adjustment range | 40 - 460 mm |
| Tilt adjustment | Yes |
| Tilt angle range | 0 - 90° |
| Swivelling | Yes |
| Swivel angle | 180° |
| Rotating | Yes |
| Angle of rotation | 360° |
| Cable management | Yes |
| Minimum screen size | 25.4 cm (10") |
| Number of displays supported | 2 |
| Maximum weight capacity (per display) | 8 kg |
| Maximum screen size | 81.3 cm (32") |
| Mounting | Clamp/Grommet |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Desk thickness (min) | 1 cm |
| Desk thickness (max) | 8.8 cm |
