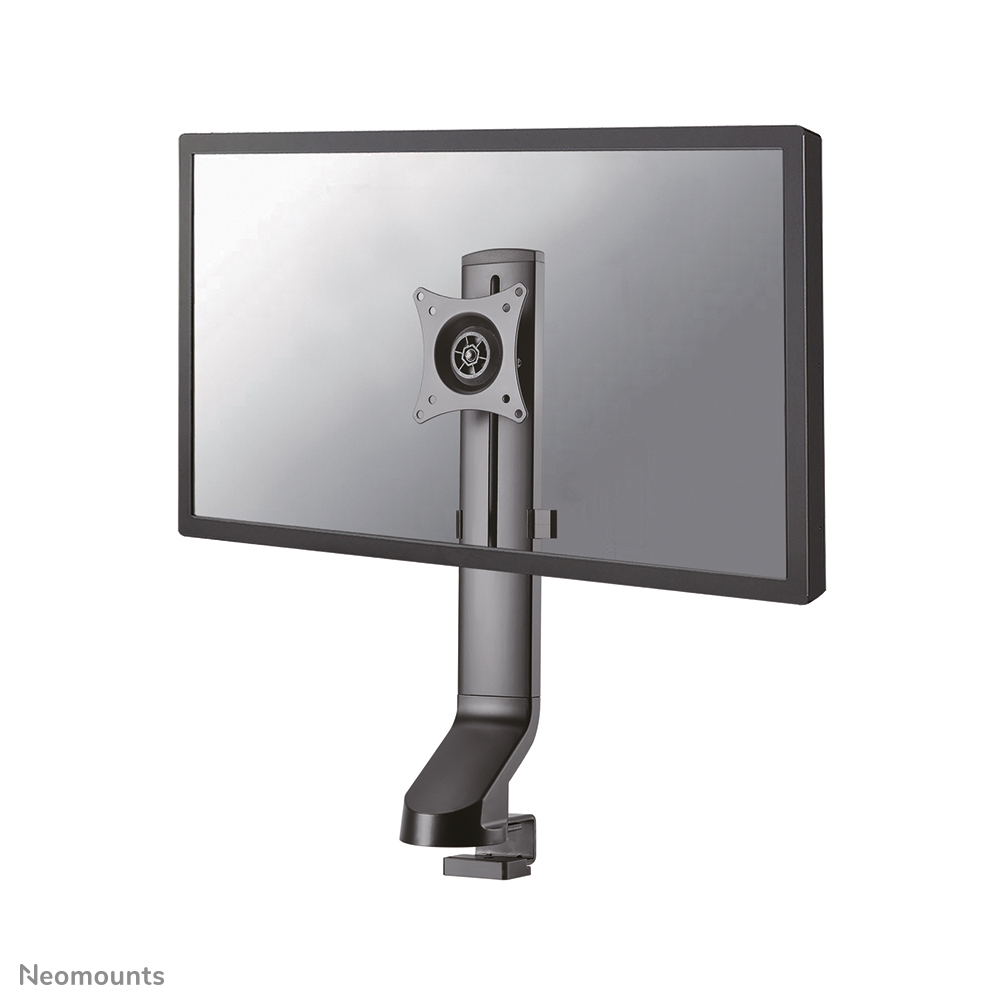

The Neomounts desk mount, model FPMA-D860BLACK is a tilt-, swivel and rotatable desk mount for flat screens up to 32". This mount is a great choice for space saving placement on desks.
Neomounts' versatile tilt (20°), rotate (360°) and swivel (20°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 26 to 45 centimetres. Depth 5 centimetres.
Neomounts FPMA-D860BLACK has one pivot point and is suitable for screens up to 32" (81 cm). The weight capacity of this product is 8 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
Products specifications
| Depth | 50 mm |
| Height | 450 mm |
| Weight | 2.08 kg |
| Master (outer) case width | 540 mm |
| Master (outer) case length | 320 mm |
| Master (outer) case height | 445 mm |
| Master (outer) case gross weight | 12.5 kg |
| Products per master (outer) case | 8 pc(s) |
| Country of origin | China |
| Master (outer) case net weight | 10 kg |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 176 pc(s) |
| Package width | 130 mm |
| Package depth | 90 mm |
| Package height | 405 mm |
| Package weight | 2.4 kg |
| Housing material | Steel |
| Product colour | Black |
| Height adjustment | Yes |
| Height adjustment type | Manual |
| Height adjustment range | 260 - 450 mm |
| Depth adjustment range | 0 - 50 mm |
| Tilt adjustment | Yes |
| Tilt angle range | -10 - 10° |
| Swivelling | Yes |
| Swivel angle | 20° |
| Swivel angle range | -10 - 10° |
| Rotating | Yes |
| Angle of rotation | 360° |
| Number of pivot points | 1 |
| Cable management | Yes |
| Maximum weight capacity | 8 kg |
| Minimum screen size | 25.4 cm (10") |
| Number of displays supported | 1 |
| Maximum screen size | 81.3 cm (32") |
| Mounting | Clamp/Grommet |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Desk thickness (max) | 2.5 cm |
