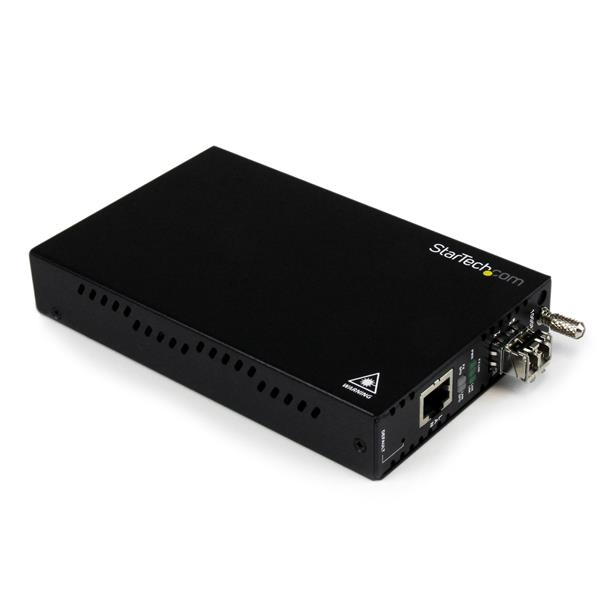

StarTech.com OAM Managed Gigabit Ethernet Fiber Media Converter - Multi Mode LC 550m - 802.3ah Compliant

StarTech.com OAM Managed Gigabit Ethernet Fiber Media Converter - Multi Mode LC 550m - 802.3ah Compliant. Maximum data transfer rate: 1250 Mbit/s, Converter input interface: 1000Base-LX, 1000Base-SX, 1000Base-T, 100Base-TX, 10Base-T, Converter output interface: 1000Base-LX, 1000Base-SX. Maximum transfer distance: 550 m, Wavelength: 850 nm, Fiber mode structure: Multi-mode. LED indicators: LAN, Link, Power, Product colour: Black, Housing material: Steel. Fiber optic connector: LC, Connectivity technology: Wired. Input voltage: 100 - 240 V, Input current: 0.36 A, Output voltage: 12 V
Manufacturer: StarTech
SKU: ET91000LCOAM
Vendor: Aspects
Convert and extend a Gigabit Ethernet connection over Multimode LC fiber with remote management capabilities

The ET91000LCOAM Managed Fiber Media Converter lets you extend a Gigabit Ethernet connection over Multimode LC fiber, with the added benefit of remote management capabilities.

Compliant with 802.3ah OAM (Operations, Administration & Management), this managed media converter incorporates an easy-to-use web interface for operation, administration and maintenance, enabling you to quickly determine the location of failing links and the fault conditions without sending service personnel to the physical location of the device.

An effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX/SX) fiber backbone, the Ethernet to fiber converter supports full Gigabit speeds at distances of up to 550m (1804ft) through the installed Multi-Mode LC SFP. The converter also features an all-steel chassis, for durability in harsh environments.

For added versatility, this fiber media converter supports standalone operation, or installation into the ETCHS2U" text="20 Slot, 2U Rackmount Chassis(ETCHS2U), as well as a replaceable MSA-compliant SFP slot.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Adjust settings and monitor the link remotely with OAM management capabilities
- Operates as standalone device or can be installed into the ETCHS2U 20 slot chassis for added versatility
- Rugged steel casing for durability in harsh environments
  • Legal warranty via the seller
  • 30 days to change your mind — free returns
  • Free delivery from €25
€232.21 incl tax
increase decrease
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Convert and extend a Gigabit Ethernet connection over Multimode LC fiber with remote management capabilities

The ET91000LCOAM Managed Fiber Media Converter lets you extend a Gigabit Ethernet connection over Multimode LC fiber, with the added benefit of remote management capabilities.

Compliant with 802.3ah OAM (Operations, Administration & Management), this managed media converter incorporates an easy-to-use web interface for operation, administration and maintenance, enabling you to quickly determine the location of failing links and the fault conditions without sending service personnel to the physical location of the device.

An effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX/SX) fiber backbone, the Ethernet to fiber converter supports full Gigabit speeds at distances of up to 550m (1804ft) through the installed Multi-Mode LC SFP. The converter also features an all-steel chassis, for durability in harsh environments.

For added versatility, this fiber media converter supports standalone operation, or installation into the ETCHS2U" text="20 Slot, 2U Rackmount Chassis(ETCHS2U), as well as a replaceable MSA-compliant SFP slot.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Adjust settings and monitor the link remotely with OAM management capabilities
- Operates as standalone device or can be installed into the ETCHS2U 20 slot chassis for added versatility
- Rugged steel casing for durability in harsh environments
Products specifications
Features
InternalNo
LED indicatorsLAN, Link, Power
Product colourBlack
Housing materialSteel
Weight & dimensions
Width87 mm
Depth163 mm
Height23 mm
Weight411 g
Logistics data
Harmonized System (HS) code85176990
Packaging data
Package width136 mm
Package depth206 mm
Package height92 mm
Package weight789 g
Operational conditions
Operating temperature (T-T)0 - 60 °C
Storage temperature (T-T)-10 - 70 °C
Operating relative humidity (H-H)10 - 90%
Power
Input voltage100 - 240 V
Input current0.36 A
Output voltage12 V
Output current1 A
Power over Ethernet (PoE)No
External power adapterYes
Certificates
Compliance certificatesRoHS
CertificationFCC, CE
Ports & interfaces
Connectivity technologyWired
Ethernet LAN (RJ-45) ports1
Fiber ports quantity1
Fiber optic connectorLC
DC-in jackYes
Network
Maximum data transfer rate1250 Mbit/s
Converter input interface1000Base-LX, 1000Base-SX, 1000Base-T, 100Base-TX, 10Base-T
Converter output interface1000Base-LX, 1000Base-SX
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3z
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
Auto MDI/MDI-XYes
Duplex systemFull, Half
Performance
Maximum transfer distance550 m
Wavelength850 nm
Fiber mode structureMulti-mode
Mean time between failures (MTBF)65000 h
Packaging content
ManualYes
*
*
*
Products specifications
Features
InternalNo
LED indicatorsLAN, Link, Power
Product colourBlack
Housing materialSteel
Weight & dimensions
Width87 mm
Depth163 mm
Height23 mm
Weight411 g
Logistics data
Harmonized System (HS) code85176990
Packaging data
Package width136 mm
Package depth206 mm
Package height92 mm
Package weight789 g
Operational conditions
Operating temperature (T-T)0 - 60 °C
Storage temperature (T-T)-10 - 70 °C
Operating relative humidity (H-H)10 - 90%
Power
Input voltage100 - 240 V
Input current0.36 A
Output voltage12 V
Output current1 A
Power over Ethernet (PoE)No
External power adapterYes
Certificates
Compliance certificatesRoHS
CertificationFCC, CE
Ports & interfaces
Connectivity technologyWired
Ethernet LAN (RJ-45) ports1
Fiber ports quantity1
Fiber optic connectorLC
DC-in jackYes
Network
Maximum data transfer rate1250 Mbit/s
Converter input interface1000Base-LX, 1000Base-SX, 1000Base-T, 100Base-TX, 10Base-T
Converter output interface1000Base-LX, 1000Base-SX
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3z
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
Auto MDI/MDI-XYes
Duplex systemFull, Half
Performance
Maximum transfer distance550 m
Wavelength850 nm
Fiber mode structureMulti-mode
Mean time between failures (MTBF)65000 h
Packaging content
ManualYes
