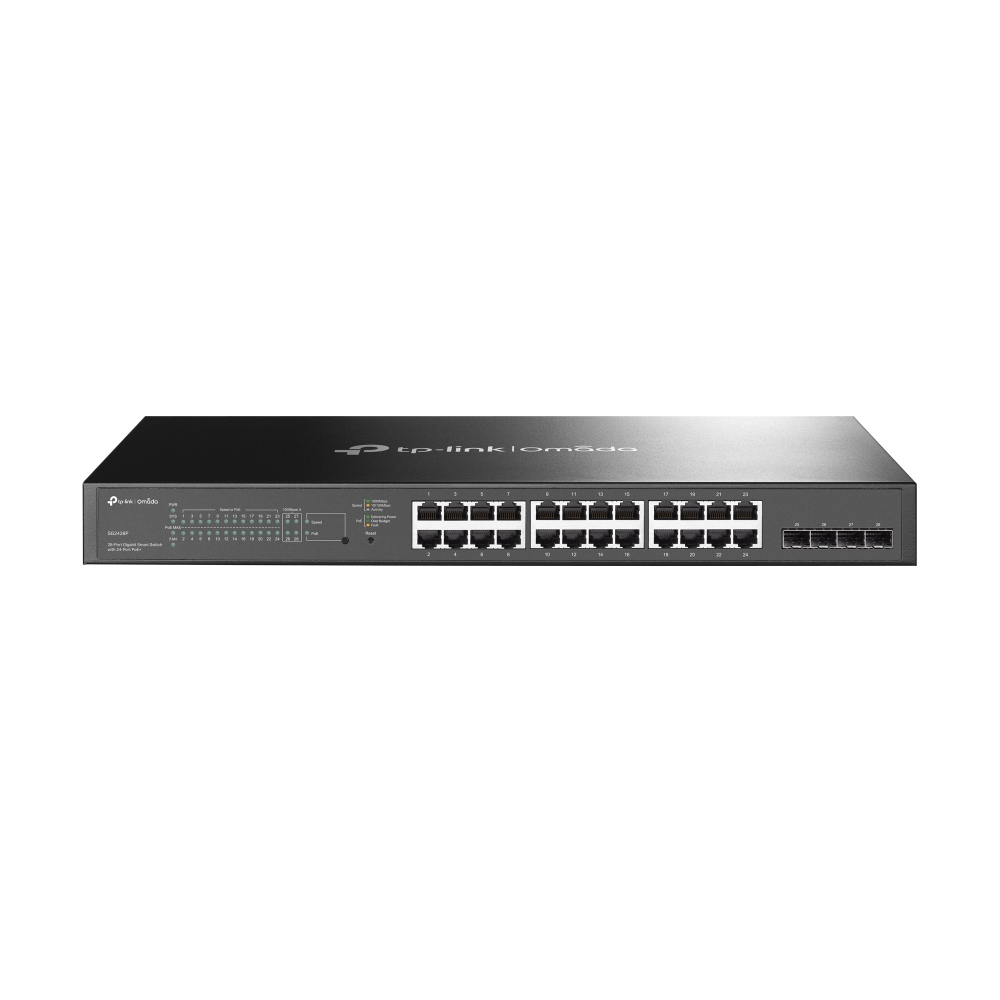

TP-Link Omada 28-Port Gigabit Smart Switch with 24-Port PoE+

Be the first to review this product
TP-Link Omada 28-Port Gigabit Smart Switch with 24-Port PoE+. Switch type: Managed, Switch layer: L2/L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Manufacturer: TP-Link
SKU: SG2428P
Vendor: Aspects
TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.
  • ✔ Legal warranty via the seller
  • ✔ 30 days to change your mind — free returns
  • ✔ Free delivery from €25
€306.70 incl tax
increase decrease
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.
Products specifications
Weight & dimensions
Width440 mm
Depth220 mm
Height44 mm
Operational conditions
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Heat dissipation1052.94 BTU/h
Power
Power sourceAC
Power supply includedYes
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Power consumption (max)301.1 W
Certificates
CertificationCE, FCC, RoHS
Management features
Switch typeManaged
Switch layerL2/L2+
Quality of Service (QoS) supportYes
Web-based managementYes
ARP inspectionYes
System event logYes
MIB supportY
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity24
SFP module slots quantity4
Network
Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportNo
Copper ethernet cabling technology10BASE-T, 1000BASE-T
Cable types supportedCat3, Cat4, Cat5, Cat5e
Port mirroringYes
Flow control supportYes
Link aggregationYes
Broadcast storm controlYes
Rate limitingYes
Spanning tree protocolYes
VLAN supportYes
Virtual LAN featuresMAC address-based VLAN, Protocol-based VLAN, Voice VLAN
Number of VLANs4000
Data transmission
Switching capacity56 Gbit/s
Forwarding rate41.66 Mpps
MAC address table8000 entries
Number of queues8
Jumbo frames supportYes
Jumbo frames9000
Packet buffer memory4.1 MB
Design
Rack mountingYes
Form factor1U
Product colourBlack
Number of fans2 fan(s)
Performance
Firmware upgradeableYes
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity24
Power over Ethernet (PoE) power per port30 W
Total Power over Ethernet (PoE) budget250 W
Packaging content
Cables includedAC
User guideYes
Rack mount kitYes
Security
DHCP featuresDHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client
Access Control List (ACL)Yes
IGMP snoopingYes
Security algorithmsHTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2, SSL/TLS
SSH/SSL supportYes
BPDU filtering/protectionYes
IP-MAC-Port bindingYes
Authentication typeRADIUS
Queue scheduling algorithmsSP, WRR+SP, Weighted Round Robin (WRR)
Protocols
Management protocolsSNMPv1/v2c/v3, SNTP
Multicast features
Multicast supportYes
Optical fiber
Fiber ethernet cabling technology1000BASE-X
*
*
*
Products specifications
Weight & dimensions
Width440 mm
Depth220 mm
Height44 mm
Operational conditions
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Heat dissipation1052.94 BTU/h
Power
Power sourceAC
Power supply includedYes
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Power consumption (max)301.1 W
Certificates
CertificationCE, FCC, RoHS
Management features
Switch typeManaged
Switch layerL2/L2+
Quality of Service (QoS) supportYes
Web-based managementYes
ARP inspectionYes
System event logYes
MIB supportY
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity24
SFP module slots quantity4
Network
Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportNo
Copper ethernet cabling technology10BASE-T, 1000BASE-T
Cable types supportedCat3, Cat4, Cat5, Cat5e
Port mirroringYes
Flow control supportYes
Link aggregationYes
Broadcast storm controlYes
Rate limitingYes
Spanning tree protocolYes
VLAN supportYes
Virtual LAN featuresMAC address-based VLAN, Protocol-based VLAN, Voice VLAN
Number of VLANs4000
Data transmission
Switching capacity56 Gbit/s
Forwarding rate41.66 Mpps
MAC address table8000 entries
Number of queues8
Jumbo frames supportYes
Jumbo frames9000
Packet buffer memory4.1 MB
Design
Rack mountingYes
Form factor1U
Product colourBlack
Number of fans2 fan(s)
Performance
Firmware upgradeableYes
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity24
Power over Ethernet (PoE) power per port30 W
Total Power over Ethernet (PoE) budget250 W
Packaging content
Cables includedAC
User guideYes
Rack mount kitYes
Security
DHCP featuresDHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client
Access Control List (ACL)Yes
IGMP snoopingYes
Security algorithmsHTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2, SSL/TLS
SSH/SSL supportYes
BPDU filtering/protectionYes
IP-MAC-Port bindingYes
Authentication typeRADIUS
Queue scheduling algorithmsSP, WRR+SP, Weighted Round Robin (WRR)
Protocols
Management protocolsSNMPv1/v2c/v3, SNTP
Multicast features
Multicast supportYes
Optical fiber
Fiber ethernet cabling technology1000BASE-X
