Sorry - this product is no longer available

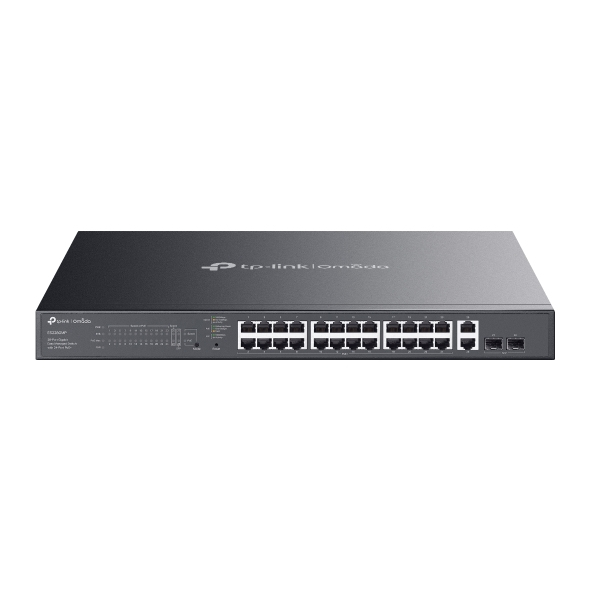

TP-Link Omada ES228GMP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Be the first to review this product
TP-Link Omada ES228GMP. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 26. MAC address table: 8000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i,.... Power over Ethernet (PoE). Rack mounting
Manufacturer: TP-Link
SKU: ES228GMP
Vendor: Aspects
Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management
Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
  • ✔ Legal warranty via the seller
  • ✔ 30 days to change your mind — free returns
  • ✔ Free delivery from €25
€307.98 incl tax
increase decrease
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management
Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
Products specifications
Weight & dimensions
Width440 mm
Depth330 mm
Height44 mm
Operational conditions
Operating temperature (T-T)-5 - 45 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Heat dissipation1546.15 BTU/h
Power
Power sourceAC
Power supply includedYes
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Power consumption (max)454.8 W
Surge protectionYes
Surge protection voltage6 kV
Certificates
Compliance certificatesCE, Federal Communications Commission (FCC), RoHS
CertificationFCC, CE, RoHS
Management features
Switch typeManaged
Switch layerL2
Quality of Service (QoS) supportYes
Web-based managementYes
Cloud-managedYes
Unified static configurationYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity26
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity26
SFP module slots quantity2
Network
Networking standardsIEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportNo
Copper ethernet cabling technology10BASE-T, 100BASE-X, 1000BASE-T, 1000BASE-X
Port mirroringYes
Flow control supportYes
Link aggregationYes
Broadcast storm controlYes
Auto MDI/MDI-XYes
Ethernet LAN data rates10,100,1000 Mbit/s
Fast leaveYes
VLAN supportYes
Virtual LAN featuresMTU VLAN, Port-based VLAN, Tagged VLAN
Number of VLANs32
Data transmission
Switching capacity56 Gbit/s
Forwarding rate41.66 Mpps
MAC address table8000 entries
Store-and-forwardYes
Jumbo frames supportYes
Jumbo frames15000
Packet buffer memory4 MB
Design
Rack mountingYes
Product colourBlack
Housing materialMetal
LED indicatorsYes
Number of fans2 fan(s)
Performance
Flash memory64 MB
Noise level46.2 dB
Firmware upgradeableYes
FanlessNo
Mean time between failures (MTBF)224143 h
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) type supportedPoE+
Power over Ethernet plus (PoE+) ports quantity24
Power over Ethernet (PoE) power per port30 W
Total Power over Ethernet (PoE) budget384 W
Packaging content
Cables includedAC
Quick start guideYes
ManualYes
Rack mount kitYes
Security
DHCP featuresDHCP client
IGMP snoopingYes
Queue scheduling algorithmsWeighted Round Robin (WRR)
Multicast features
Multicast supportYes
*
*
*
Products specifications
Weight & dimensions
Width440 mm
Depth330 mm
Height44 mm
Operational conditions
Operating temperature (T-T)-5 - 45 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Heat dissipation1546.15 BTU/h
Power
Power sourceAC
Power supply includedYes
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Power consumption (max)454.8 W
Surge protectionYes
Surge protection voltage6 kV
Certificates
Compliance certificatesCE, Federal Communications Commission (FCC), RoHS
CertificationFCC, CE, RoHS
Management features
Switch typeManaged
Switch layerL2
Quality of Service (QoS) supportYes
Web-based managementYes
Cloud-managedYes
Unified static configurationYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity26
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity26
SFP module slots quantity2
Network
Networking standardsIEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportNo
Copper ethernet cabling technology10BASE-T, 100BASE-X, 1000BASE-T, 1000BASE-X
Port mirroringYes
Flow control supportYes
Link aggregationYes
Broadcast storm controlYes
Auto MDI/MDI-XYes
Ethernet LAN data rates10,100,1000 Mbit/s
Fast leaveYes
VLAN supportYes
Virtual LAN featuresMTU VLAN, Port-based VLAN, Tagged VLAN
Number of VLANs32
Data transmission
Switching capacity56 Gbit/s
Forwarding rate41.66 Mpps
MAC address table8000 entries
Store-and-forwardYes
Jumbo frames supportYes
Jumbo frames15000
Packet buffer memory4 MB
Design
Rack mountingYes
Product colourBlack
Housing materialMetal
LED indicatorsYes
Number of fans2 fan(s)
Performance
Flash memory64 MB
Noise level46.2 dB
Firmware upgradeableYes
FanlessNo
Mean time between failures (MTBF)224143 h
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) type supportedPoE+
Power over Ethernet plus (PoE+) ports quantity24
Power over Ethernet (PoE) power per port30 W
Total Power over Ethernet (PoE) budget384 W
Packaging content
Cables includedAC
Quick start guideYes
ManualYes
Rack mount kitYes
Security
DHCP featuresDHCP client
IGMP snoopingYes
Queue scheduling algorithmsWeighted Round Robin (WRR)
Multicast features
Multicast supportYes
