Sorry - this product is no longer available

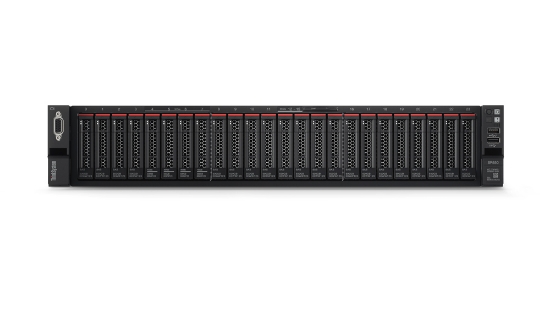

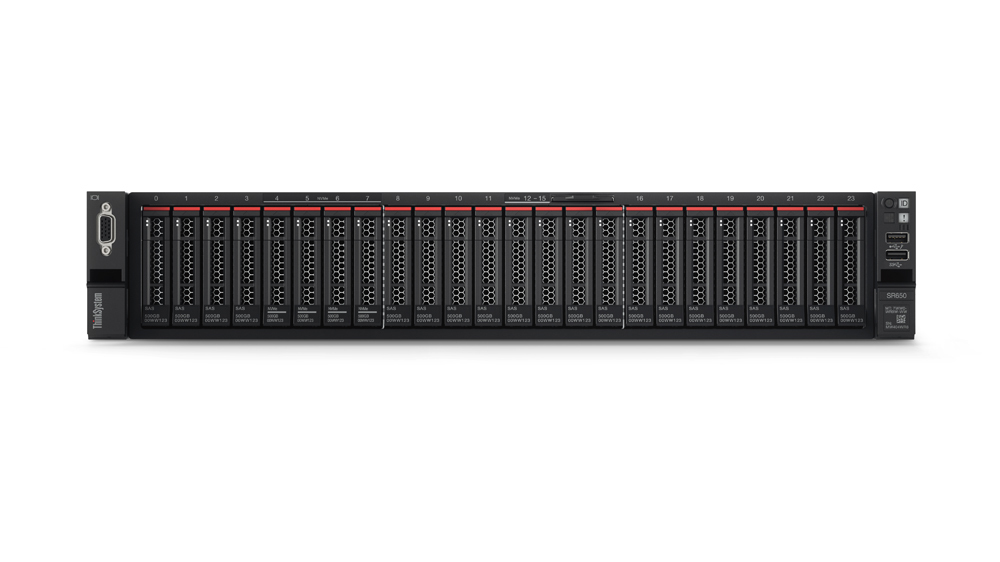

Lenovo ThinkSystem SR650 server 0 GB Rack (2U) Intel® Xeon® Gold 6226R 2.9 GHz 32 GB DDR4-SDRAM 750 W

Lenovo ThinkSystem SR650. Processor family: Intel® Xeon® Gold, Processor frequency: 2.9 GHz, Processor model: 6226R. Internal memory: 32 GB, Internal memory type: DDR4-SDRAM, Memory layout (slots x size): 1 x 32 GB. Total storage capacity: 0 GB, HDD interface: Serial ATA, Serial Attached SCSI (SAS). Ethernet LAN. Power supply: 750 W, Redundant power supply (RPS) support. Chassis type: Rack (2U)
Manufacturer: Lenovo
SKU: 7X06A0K7EA
Vendor: Aspects
Future defined data center
Lenovo delivers cost-effective, reliable, and scalable solutions by combining industry-leading technology and the world’s best software-defined offerings with Lenovo ThinkShield, XClarity, and TruScale Infrastructure Services to manage the life cycle of your data center needs. ThinkSystem SR650 provides support for data analytics, hybrid cloud, hyperconverged infrastructure, video surveillance, high performance computing and much more.

Workload-optimized support
Intel® Optane™ DC Persistent Memory delivers a new, flexible tier of memory designed specifically for data center workloads that offer an unprecedented combination of high capacity, affordability, and persistence. This technology will have a significant impact on real-world data center operations: reduction of restart times from minutes down to seconds, 1.2x virtual machine density, dramatically improved data replication with 14x lower latency and 14x higher IOPS, and greater security for persistent data built into hardware.

Flexible storage
Lenovo AnyBay design features a choice of drive interface type in the same drive bay: SAS drives, SATA drives, or U.2 NVMe PCIe drives. Freedom to configure some of the bays with PCIe SSDs and still use the remaining bays for capacity SAS drives provides the ability to upgrade to more PCIe SSDs in the future as needed.

Empowering IT management
Lenovo XClarity Controller is the embedded management engine in all ThinkSystem servers that is designed to standardize, simplify, and automate foundation server management tasks. Lenovo XClarity Administrator is a virtualized application that centrally manages ThinkSystem servers, storage, and networking, which can reduce provisioning time up to 95% versus manual operation. Running XClarity Integrator helps you streamline IT management, speed provisioning, and contain costs by seamlessly integrating XClarity into an existing IT environment.
  • Legal warranty via the seller
  • 30 days to change your mind — free returns
  • Free delivery from €25
€6336.05 incl tax
increase decrease
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Future defined data center
Lenovo delivers cost-effective, reliable, and scalable solutions by combining industry-leading technology and the world’s best software-defined offerings with Lenovo ThinkShield, XClarity, and TruScale Infrastructure Services to manage the life cycle of your data center needs. ThinkSystem SR650 provides support for data analytics, hybrid cloud, hyperconverged infrastructure, video surveillance, high performance computing and much more.

Workload-optimized support
Intel® Optane™ DC Persistent Memory delivers a new, flexible tier of memory designed specifically for data center workloads that offer an unprecedented combination of high capacity, affordability, and persistence. This technology will have a significant impact on real-world data center operations: reduction of restart times from minutes down to seconds, 1.2x virtual machine density, dramatically improved data replication with 14x lower latency and 14x higher IOPS, and greater security for persistent data built into hardware.

Flexible storage
Lenovo AnyBay design features a choice of drive interface type in the same drive bay: SAS drives, SATA drives, or U.2 NVMe PCIe drives. Freedom to configure some of the bays with PCIe SSDs and still use the remaining bays for capacity SAS drives provides the ability to upgrade to more PCIe SSDs in the future as needed.

Empowering IT management
Lenovo XClarity Controller is the embedded management engine in all ThinkSystem servers that is designed to standardize, simplify, and automate foundation server management tasks. Lenovo XClarity Administrator is a virtualized application that centrally manages ThinkSystem servers, storage, and networking, which can reduce provisioning time up to 95% versus manual operation. Running XClarity Integrator helps you streamline IT management, speed provisioning, and contain costs by seamlessly integrating XClarity into an existing IT environment.
Products specifications
Weight & dimensions
Width445 mm
Depth720 mm
Height87 mm
Weight19 kg
Logistics data
Harmonized System (HS) code84714100
Power
Redundant power supply (RPS) supportYes
Power supply750 W
Number of redundant power supplies supported2
Number of redundant power supplies installed1
Power supply input frequency50 - 60 Hz
Ports & interfaces
Ethernet LAN (RJ-45) ports4
USB 2.0 ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
VGA (D-Sub) ports quantity1
Network
Ethernet LANYes
Ethernet interface type10 Gigabit Ethernet
Design
Chassis typeRack (2U)
Product colourBlack, Stainless steel
Rack mountingYes
Performance
Performance managementXClarity Enterprise
Trusted Platform Module (TPM)Yes
Sustainability
Sustainability certificatesENERGY STAR
Processor
Processor manufacturerIntel
Processor familyIntel® Xeon® Gold
Processor generation2nd Generation Intel® Xeon® Scalable
Processor model6226R
Processor frequency2.9 GHz
Processor boost frequency3.9 GHz
Processor cores16
Processor cache22 MB
Motherboard chipsetIntel® C624
Number of processors installed1
Thermal Design Power (TDP)150 W
Maximum number of SMP processors2
Processor socketLGA 3647 (Socket P)
Processor lithography14 nm
Processor threads32
Processor operating modes64-bit
Processor codenameCascade Lake
Tcase85 °C
Maximum internal memory supported by processor1.02 TB
Memory types supported by processorDDR4-SDRAM
Memory clock speeds supported by processor2933 MHz
Execute Disable BitYes
Maximum number of PCI Express lanes48
Processor package size76.0 x 56.5 mm
Supported instruction setsSSE4.2, AVX, AVX 2.0, AVX-512
Scalability2S
Embedded options availableYes
Memory
Internal memory32 GB
Internal memory typeDDR4-SDRAM
Memory slots24x DIMM
Memory clock speed2933 MHz
Memory layout (slots x size)1 x 32 GB
Maximum internal memory7.5 TB
Storage
Maximum storage capacity400 TB
Total storage capacity0 GB
HDD interfaceSerial ATA, Serial Attached SCSI (SAS)
SSD interfaceNVMe, PCI Express
NVMeYes
RAID supportNo
Optical drive typeNo
Graphics
On-board graphics cardYes
On-board graphics card modelNot available
Maximum graphics card memory16 MB
Expansion slots
PCI Express x8 slots2
PCI Express slots version3.0
Software
Operating system installedNo
Compatible operating systemsMicrosoft Windows Server 2016/2012 R2 Red Hat Enterprise Linux 7.3/6.9 SUSE Linux Enterprise Server 12 SP2/11 SP4 VMware vSphere (ESXi) 6.5/6.0 U3
Processor special features
Enhanced Intel SpeedStep TechnologyYes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® Hyper Threading Technology (Intel® HT Technology)Yes
Intel® Turbo Boost Technology2.0
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel Trusted Execution TechnologyYes
Intel VT-x with Extended Page Tables (EPT)Yes
Intel 64Yes
Intel Virtualization Technology (VT-x)Yes
Processor ARK ID199347
*
*
*
Products specifications
Weight & dimensions
Width445 mm
Depth720 mm
Height87 mm
Weight19 kg
Logistics data
Harmonized System (HS) code84714100
Power
Redundant power supply (RPS) supportYes
Power supply750 W
Number of redundant power supplies supported2
Number of redundant power supplies installed1
Power supply input frequency50 - 60 Hz
Ports & interfaces
Ethernet LAN (RJ-45) ports4
USB 2.0 ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
VGA (D-Sub) ports quantity1
Network
Ethernet LANYes
Ethernet interface type10 Gigabit Ethernet
Design
Chassis typeRack (2U)
Product colourBlack, Stainless steel
Rack mountingYes
Performance
Performance managementXClarity Enterprise
Trusted Platform Module (TPM)Yes
Sustainability
Sustainability certificatesENERGY STAR
Processor
Processor manufacturerIntel
Processor familyIntel® Xeon® Gold
Processor generation2nd Generation Intel® Xeon® Scalable
Processor model6226R
Processor frequency2.9 GHz
Processor boost frequency3.9 GHz
Processor cores16
Processor cache22 MB
Motherboard chipsetIntel® C624
Number of processors installed1
Thermal Design Power (TDP)150 W
Maximum number of SMP processors2
Processor socketLGA 3647 (Socket P)
Processor lithography14 nm
Processor threads32
Processor operating modes64-bit
Processor codenameCascade Lake
Tcase85 °C
Maximum internal memory supported by processor1.02 TB
Memory types supported by processorDDR4-SDRAM
Memory clock speeds supported by processor2933 MHz
Execute Disable BitYes
Maximum number of PCI Express lanes48
Processor package size76.0 x 56.5 mm
Supported instruction setsSSE4.2, AVX, AVX 2.0, AVX-512
Scalability2S
Embedded options availableYes
Memory
Internal memory32 GB
Internal memory typeDDR4-SDRAM
Memory slots24x DIMM
Memory clock speed2933 MHz
Memory layout (slots x size)1 x 32 GB
Maximum internal memory7.5 TB
Storage
Maximum storage capacity400 TB
Total storage capacity0 GB
HDD interfaceSerial ATA, Serial Attached SCSI (SAS)
SSD interfaceNVMe, PCI Express
NVMeYes
RAID supportNo
Optical drive typeNo
Graphics
On-board graphics cardYes
On-board graphics card modelNot available
Maximum graphics card memory16 MB
Expansion slots
PCI Express x8 slots2
PCI Express slots version3.0
Software
Operating system installedNo
Compatible operating systemsMicrosoft Windows Server 2016/2012 R2 Red Hat Enterprise Linux 7.3/6.9 SUSE Linux Enterprise Server 12 SP2/11 SP4 VMware vSphere (ESXi) 6.5/6.0 U3
Processor special features
Enhanced Intel SpeedStep TechnologyYes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® Hyper Threading Technology (Intel® HT Technology)Yes
Intel® Turbo Boost Technology2.0
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel Trusted Execution TechnologyYes
Intel VT-x with Extended Page Tables (EPT)Yes
Intel 64Yes
Intel Virtualization Technology (VT-x)Yes
Processor ARK ID199347
