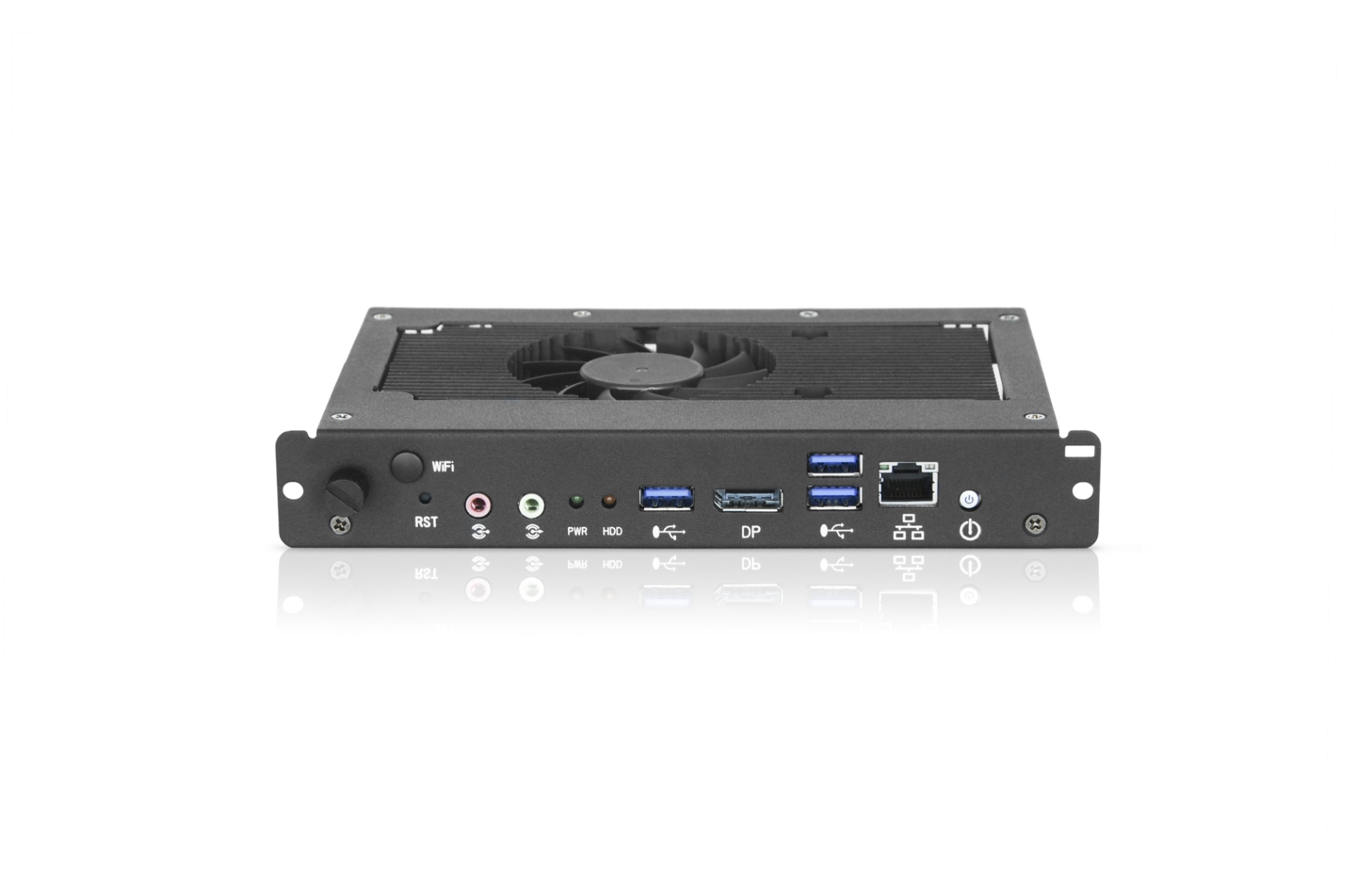

Picture of NEC 100014546 embedded computer 2.7 GHz Intel® Core™ i5 64 GB SSD 8 GB

Sorry - this product is no longer available

NEC 100014546 embedded computer 2.7 GHz Intel® Core™ i5 64 GB SSD 8 GB

Name: NEC 100014546 embedded computer 2.7 GHz Intel® Core™ i5 64 GB SSD 8 GB
SKU: 100014546
Price: 1300.79 EUR
Availability: OutOfStock

Be the first to review this product

NEC 100014546. Processor frequency: 2.7 GHz, Processor family: Intel® Core™ i5, Processor model: i5-6440EQ. Internal memory: 8 GB, Internal memory type: DDR4-SDRAM, Maximum internal memory: 16 GB. Total storage capacity: 64 GB, Storage media: SSD, SSD interface: M.2. On-board graphics card model: Intel® HD Graphics 530, Maximum on-board graphics card memory: 64 GB, On-board graphics card base frequency: 350 MHz. Cabling technology: 10/100/1000Base-T(X), Ethernet LAN data rates: 10,100,1000 Mbit/s

Manufacturer: Nec

SKU: 100014546

Vendor: Aspects

OPS Slot-In PCs make digital signage simpler and more flexible without additional cables or devices
The full line-up of OPS Slot-in PCs supports a wide variety of applications starting from static content playback and ranging to the most demanding interactive, high resolution or resource hungry applications. The 6th generation Intel® processors (Skylake) deliver a new class of computing to power the next generation of slot-in computing. The OPS concept provides a compact and fully embedded solution ensuring that all connectors are integrated including power, video & audio signals and RS-232. All NEC large format displays (except E series 32" to 65"), PX and PH installation projectors feature this option slot

- Powerful possibilities - the 6th generation Intel® processors deliver a new class of computing with a host of new features to power the next generation of embedded computing.
- Intel ® HD graphics - provides Ultra HD resolution, intense detail and faster frame rates, giving you a remarkable visual experience.
- Industrial grade components - secure high reliability whilst withstanding extreme operating conditions.
- Seamless and fully embedded - as all connectors are inside the display including power, video, audio signals and RS-232, no external cables are required.
- High usage flexibility - thanks to wide connectivity such as 3 x USB, DisplayPort out, Gigabit ethernet and audio.
- Upgrade the power of your displays at any time - savings are possible by upgrading only your OPS device or your display with no need to change all hardware.
- A commitment to quality - tailored warranties available to best match long-term demands by extending standard warranty up to 5 years.
- Economical - enjoy more performance whilst consuming less power.

✔ Legal warranty via the seller
✔ 30 days to change your mind — free returns
✔ Free delivery from €25

€1300.79 incl tax

increase decrease

Overview
Specifications
Contact Us

Products specifications

Weight & dimensions
Width	120 mm
Depth	190 mm
Height	30 mm
Weight	900 g
Package width	190 mm
Package depth	260 mm
Package height	70 mm
Package weight	1 kg
Logistics data
Harmonized System (HS) code	84713000
Operational conditions
Operating temperature (T-T)	0 - 35 °C
Operating relative humidity (H-H)	0 - 90%
Certificates
Certification	CE/FCC
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
DVI port	No
DisplayPorts quantity	1
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
Network
Wi-Fi	No
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10,100,1000 Mbit/s
Wake-on-LAN ready	Yes
Performance
Motherboard chipset	Intel® HM170
Product colour	Black
Audio chip	Realtek ALC887
Processor
Processor generation	6th gen Intel® Core™ i5
Processor frequency	2.7 GHz
Processor family	Intel® Core™ i5
Processor model	i5-6440EQ
Processor cores	4
Processor boost frequency	3.4 GHz
Processor socket	BGA 1440
Processor cache	6 MB
Processor cache type	Smart Cache
System bus rate	8 GT/s
Processor threads	4
PCI Express slots version	3.0
Processor lithography	14 nm
Processor operating modes	64-bit
Stepping	R0
Bus type	DMI3
Processor codename	Skylake
Thermal Design Power (TDP)	45 W
Processor series	Intel Core i5-6400 Mobile series
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 1x8+2x4, 2x8
Tcase	100 °C
Tjunction	100 °C
Maximum internal memory supported by processor	64 GB
Conflict-Free processor	Yes
Memory types supported by processor	DDR3L-SDRAM, DDR4-SDRAM, LPDDR3-SDRAM
Memory clock speeds supported by processor	1600,1866,2133 MHz
Memory bandwidth supported by processor (max)	34.1 GB/s
ECC supported by processor	No
Memory
Internal memory	8 GB
Internal memory type	DDR4-SDRAM
Maximum internal memory	16 GB
Memory slots	2x SO-DIMM
Memory channels	Dual-channel
Storage
Total storage capacity	64 GB
Storage media	SSD
Card reader integrated	No
SSD interface	M.2
SSD capacity	64 GB
Graphics
On-board graphics card	Yes
On-board graphics card model	Intel® HD Graphics 530
Maximum on-board graphics card memory	64 GB
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1000 MHz
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.4
On-board graphics card ID	0x191B
Discrete graphics card	No
Discrete graphics card model	Not available
Number of displays supported (on-board graphics)	3
Software
Operating system installed	Windows 10 IoT Enterprise
Processor special features
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Processor code	SR2DU
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Turbo Boost Technology	2.0
Intel® Quick Sync Video Technology	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Wireless Display (Intel® WiDi)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Insider™	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Thermal Monitoring Technologies	Yes
Intel Trusted Execution Technology	Yes
Intel Enhanced Halt State	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Embedded options available	Yes
Graphics & IMC lithography	14 nm
Intel TSX-NI	Yes
Intel® Secure Key	Yes
Intel 64	Yes
Intel® OS Guard	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel Clear Video Technology	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel HD Graphics	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Virtualization Technology (VT-x)	Yes
Intel TSX-NI version	1.00
Processor package size	42 x 28 mm
Processor ARK ID	90425
