NEC 100015585 PC/workstation Intel® Celeron® G4930E 8 GB DDR4-SDRAM 128 GB SSD Windows 10 IoT Black, Bronze, Green, Silver

NEC 100015585. Processor frequency: 2.4 GHz, Processor family: Intel® Celeron®, Processor model: G4930E. Internal memory: 8 GB, Internal memory type: DDR4-SDRAM. Total storage capacity: 128 GB, Storage media: SSD. On-board graphics card model: Intel® HD Graphics 630. Wi-Fi. Operating system installed: Windows 10 IoT, Operating system architecture: 64-bit. Weight: 1 kg. Product colour: Black, Bronze, Green, Silver
Manufacturer: Nec
SKU: 100015585
Vendor: Aspects

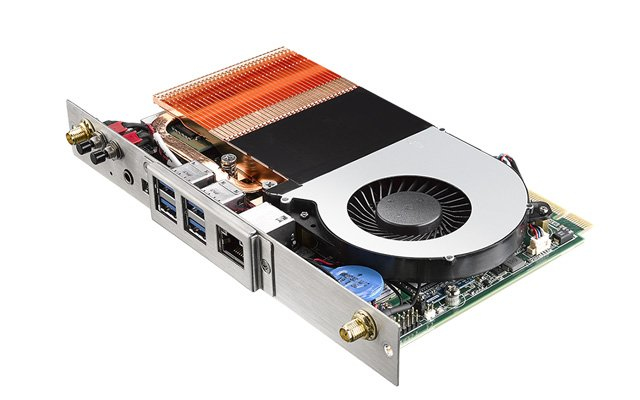

Intel Smart Display Module (SDM) 8th Generation - The Standard Celeron SDM

This Celeron powered Intel SDM Large Slot-in PC supports a wide variety of applications such as flight information controllers in airports, media players for retail or corporate signage, menu board play-out systems in restaurants and many more.

Tailor-made solutions can be provided with a wide choice of processors, solid-state drives, RAM and operating systems as well as Wi-Fi connectivity.


Versatile Performance - the G4930E Intel® Celeron processor with 8GB dual channel DDR4 RAM delivers fast data processing and is capable to run multiple operations and applications at the same time; powering the next generation of embedded computing.
Tailored for your needs - customer specific configurations for RAM, SSD, operating system and pre-installed software.
High usage flexibility -thanks to wide connectivity such as 4 x USB, MiniDP++, Gigabit Ethernet, Audio and optional WiFi; there’s no need to add additional adapters or signal splitters.
Seamless and fully embedded - the Intel® SDM form factor provides a compact and fully embedded solution ensuring that all connectors are integrated including Power, Video & Audio Signals and RS232.
100% compatibility and enhanced feature-set - in combination with supported NEC large format displays.
Built for business - the TPM chipset provides enhanced hardware security through integrated cryptographic keys.
High reliability - ideally suited for 24/7 operation due to the use of industrial grade components.
  • Legal warranty via the seller
  • 30 days to change your mind — free returns
  • Free delivery from €25
€1221.55 incl tax
increase decrease
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Intel Smart Display Module (SDM) 8th Generation - The Standard Celeron SDM

This Celeron powered Intel SDM Large Slot-in PC supports a wide variety of applications such as flight information controllers in airports, media players for retail or corporate signage, menu board play-out systems in restaurants and many more.

Tailor-made solutions can be provided with a wide choice of processors, solid-state drives, RAM and operating systems as well as Wi-Fi connectivity.


Versatile Performance - the G4930E Intel® Celeron processor with 8GB dual channel DDR4 RAM delivers fast data processing and is capable to run multiple operations and applications at the same time; powering the next generation of embedded computing.
Tailored for your needs - customer specific configurations for RAM, SSD, operating system and pre-installed software.
High usage flexibility -thanks to wide connectivity such as 4 x USB, MiniDP++, Gigabit Ethernet, Audio and optional WiFi; there’s no need to add additional adapters or signal splitters.
Seamless and fully embedded - the Intel® SDM form factor provides a compact and fully embedded solution ensuring that all connectors are integrated including Power, Video & Audio Signals and RS232.
100% compatibility and enhanced feature-set - in combination with supported NEC large format displays.
Built for business - the TPM chipset provides enhanced hardware security through integrated cryptographic keys.
High reliability - ideally suited for 24/7 operation due to the use of industrial grade components.
Products specifications
Weight & dimensions
Width175 mm
Depth100 mm
Height20 mm
Weight1 kg
Package width325 mm
Package depth245 mm
Package height75 mm
Package weight1.2 kg
Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity4
Mini DisplayPorts quantity1
Ethernet LAN (RJ-45) ports1
Combo headphone/mic portYes
Network
Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
Cabling technology10/100/1000Base-T(X)
Wi-FiYes
Top Wi-Fi standard802.11a
Wi-Fi standards802.11a
WLAN controller manufacturerIntel
WLAN controller modelIntel Dual Band Wireless-AC 9260
Antenna type2x2
Design
Product colourBlack, Bronze, Green, Silver
Display
Display includedNo
Processor
Processor manufacturerIntel
Processor familyIntel® Celeron®
Processor modelG4930E
Processor cores2
Processor frequency2.4 GHz
Memory
Internal memory8 GB
Internal memory typeDDR4-SDRAM
Storage
Total storage capacity128 GB
Storage mediaSSD
Optical drive typeNo
Total SSDs capacity128 GB
SSD capacity128 GB
SSD interfaceM.2
Card reader integratedNo
Graphics
Discrete graphics cardNo
On-board graphics cardYes
Discrete graphics card modelNot available
On-board GPU manufacturerIntel
On-board graphics card modelIntel® HD Graphics 630
Software
Operating system installedWindows 10 IoT
Operating system architecture64-bit
Processor special features
Intel 64Yes
Enhanced Intel SpeedStep TechnologyYes
Embedded options availableYes
Intel Clear Video TechnologyYes
Intel VT-x with Extended Page Tables (EPT)Yes
Intel TSX-NINo
Idle StatesYes
Intel Stable Image Platform Program (SIPP)No
Intel Trusted Execution TechnologyNo
Execute Disable BitYes
Intel Software Guard Extensions (Intel SGX)Yes
CPU configuration (max)1
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel Virtualization Technology (VT-x)Yes
*
*
*
