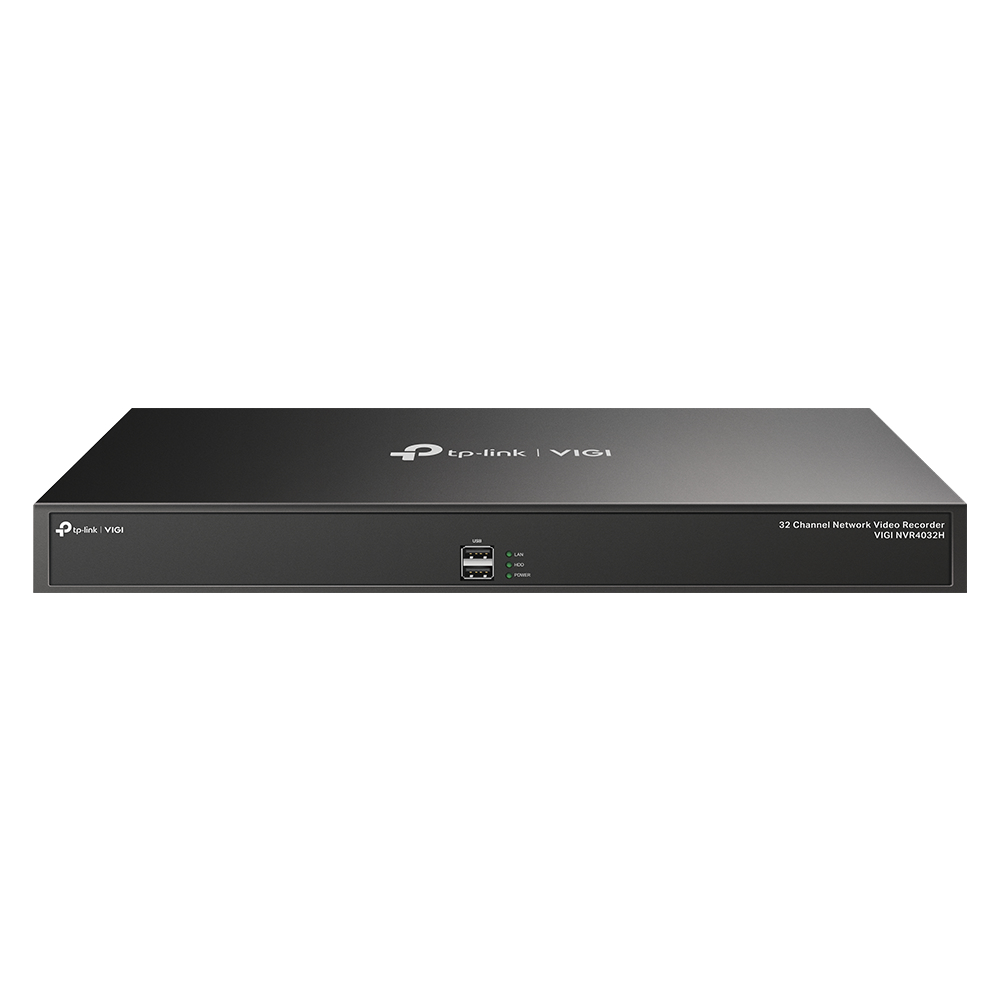

TP-Link VIGI 32 Channel Network Video Recorder

Be the first to review this product
TP-Link VIGI 32 Channel Network Video Recorder. Video input channels: 32 channels, Maximum resolution: 3840 x 2160 pixels, Number of simultaneously playbacked channels: 16 channels. Maximum storage capacity: 10 TB, HDD interface: SATA. Ethernet LAN data rates: 10,100,1000 Mbit/s, Supported network protocols: UPnP, NTP, ONVIF, CGI. Product colour: Black. Power consumption (max): 48 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz
Manufacturer: TP-Link
SKU: VIGI NVR4032H
Vendor: Aspects
Security Never Shuts Down
32 Channel Network Video Recorder

Every angle all on one screen.
4K HDMI Video Output & 32MP Decoding Capacity
Sharp image definition up to 8MP ensures you capture every detail. 16-ch@2MP/ 8-ch@4MP decoding capacity allows you to enjoy more-channels live view and playback at the same time

Independent Video Output
Greatly reduces the time spent on switching between screens.

Connect the HDMI and VGA ports to the two different screens and freely choose what live views each screen shows. That way, you will enjoy multi-channels live views simultaneously.

The VGA and HDMI ports display live views and configuration & playback interface, respectively. It will allow users to play back the videos or configure the devices while watching live views at the same time.

Rich Ports for Diversified Functions.
Equipped with a variety of ports, VIGI NVR4032H integrates 16× alarm in, 4× alarm out, two-way audio, video input, independent video output, and more, suitable for SMB surveillance scenarios.

Dual Ethernet Ports Design
Supports a variety of network modes to meet your different needs.

Higher bandwidth for high-definition cameras.
320 Mbps Video Access Bandwidth
High video access bandwidth ensures your NVR manages more cameras with high resolutions.Based on laboratory testing using VIGI cameras, VIGI NVR can manage up to 32 HD cameras.

Smart Video Coding by H.265+
Compresses the video size without sacrificing video quality, easing the network load and saving disk space.

Security for every hour and every day.
4 SATA (1 up to 10TB)
Automatically and continuously stores up to 40 TB of footage from connected cameras to secure your data for quick, convenient access.

Space-saving and easy installation.
Rack Mounting
Just simply plug your NVR into the rack and connect it to the appropriate power and communication cables. Then, it is ready to go. This will give more convenience for many industrial and commercial applications.

No need to check long compatibility lists.
ONVIF Ensures Compatibility
Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility

One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
  • ✔ Legal warranty via the seller
  • ✔ 30 days to change your mind — free returns
  • ✔ Free delivery from €25
€820.06 incl tax
increase decrease
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Security Never Shuts Down
32 Channel Network Video Recorder

Every angle all on one screen.
4K HDMI Video Output & 32MP Decoding Capacity
Sharp image definition up to 8MP ensures you capture every detail. 16-ch@2MP/ 8-ch@4MP decoding capacity allows you to enjoy more-channels live view and playback at the same time

Independent Video Output
Greatly reduces the time spent on switching between screens.

Connect the HDMI and VGA ports to the two different screens and freely choose what live views each screen shows. That way, you will enjoy multi-channels live views simultaneously.

The VGA and HDMI ports display live views and configuration & playback interface, respectively. It will allow users to play back the videos or configure the devices while watching live views at the same time.

Rich Ports for Diversified Functions.
Equipped with a variety of ports, VIGI NVR4032H integrates 16× alarm in, 4× alarm out, two-way audio, video input, independent video output, and more, suitable for SMB surveillance scenarios.

Dual Ethernet Ports Design
Supports a variety of network modes to meet your different needs.

Higher bandwidth for high-definition cameras.
320 Mbps Video Access Bandwidth
High video access bandwidth ensures your NVR manages more cameras with high resolutions.Based on laboratory testing using VIGI cameras, VIGI NVR can manage up to 32 HD cameras.

Smart Video Coding by H.265+
Compresses the video size without sacrificing video quality, easing the network load and saving disk space.

Security for every hour and every day.
4 SATA (1 up to 10TB)
Automatically and continuously stores up to 40 TB of footage from connected cameras to secure your data for quick, convenient access.

Space-saving and easy installation.
Rack Mounting
Just simply plug your NVR into the rack and connect it to the appropriate power and communication cables. Then, it is ready to go. This will give more convenience for many industrial and commercial applications.

No need to check long compatibility lists.
ONVIF Ensures Compatibility
Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility

One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
Products specifications
Features
Rack mountingYes
Buzzer offYes
Product colourBlack
Weight & dimensions
Width440 mm
Depth330 mm
Height44 mm
Weight4 kg
Package width440 mm
Package depth528 mm
Package height100 mm
Package weight5.22 kg
Operational conditions
Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90%
Power
Power consumption (max)48 W
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Ports & interfaces
Ethernet LAN (RJ-45) ports2
Ethernet LAN data rates10,100,1000 Mbit/s
HDMI ports quantity1
VGA (D-Sub) output ports1
USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
Line-inYes
Audio output1
RS-232 ports1
Supported network protocolsUPnP, NTP, ONVIF, CGI
Performance
Video input channels32 channels
Alarm input channels16
Alarm output channels4
Number of simultaneously playbacked channels16 channels
Video recording modes720p, 1080p
Maximum resolution3840 x 2160 pixels
Supported resolutions3840 x 2160, 1920 x 1080, 1680 x 1050, 1440 x 900, 1280 x 1024, 1280 x 720, 1024 x 768
Video motion detectionYes
Video loss detectionYes
Video formats supportedH.264, H.264+, H.265, H.265+
Backup functionYes
Playback modesDigital zoom, Fast play, Forward, Full screen, Pause, Play, Stop
Input bandwidth320 Mbit/s
Output bandwidth320 Mbit/s
Recording modesManual, Schedule
Audio system2-way
Packaging content
Cables includedAC, Power
Quick installation guideYes
System requirements
Mobile operating systems supportedAndroid, iOS
Browser supportedChrome (57+), Firefox (52+), Edge (91+)
Hard drive
HDD capacity0 GB
Number of HDDs supported4
Maximum storage capacity10 TB
HDD interfaceSATA
*
*
*
Products specifications
Features
Rack mountingYes
Buzzer offYes
Product colourBlack
Weight & dimensions
Width440 mm
Depth330 mm
Height44 mm
Weight4 kg
Package width440 mm
Package depth528 mm
Package height100 mm
Package weight5.22 kg
Operational conditions
Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90%
Power
Power consumption (max)48 W
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Ports & interfaces
Ethernet LAN (RJ-45) ports2
Ethernet LAN data rates10,100,1000 Mbit/s
HDMI ports quantity1
VGA (D-Sub) output ports1
USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
Line-inYes
Audio output1
RS-232 ports1
Supported network protocolsUPnP, NTP, ONVIF, CGI
Performance
Video input channels32 channels
Alarm input channels16
Alarm output channels4
Number of simultaneously playbacked channels16 channels
Video recording modes720p, 1080p
Maximum resolution3840 x 2160 pixels
Supported resolutions3840 x 2160, 1920 x 1080, 1680 x 1050, 1440 x 900, 1280 x 1024, 1280 x 720, 1024 x 768
Video motion detectionYes
Video loss detectionYes
Video formats supportedH.264, H.264+, H.265, H.265+
Backup functionYes
Playback modesDigital zoom, Fast play, Forward, Full screen, Pause, Play, Stop
Input bandwidth320 Mbit/s
Output bandwidth320 Mbit/s
Recording modesManual, Schedule
Audio system2-way
Packaging content
Cables includedAC, Power
Quick installation guideYes
System requirements
Mobile operating systems supportedAndroid, iOS
Browser supportedChrome (57+), Firefox (52+), Edge (91+)
Hard drive
HDD capacity0 GB
Number of HDDs supported4
Maximum storage capacity10 TB
HDD interfaceSATA
