Sorry - this product is no longer available

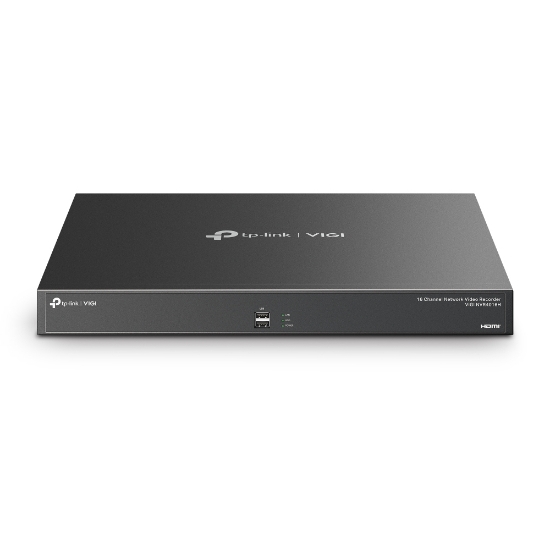

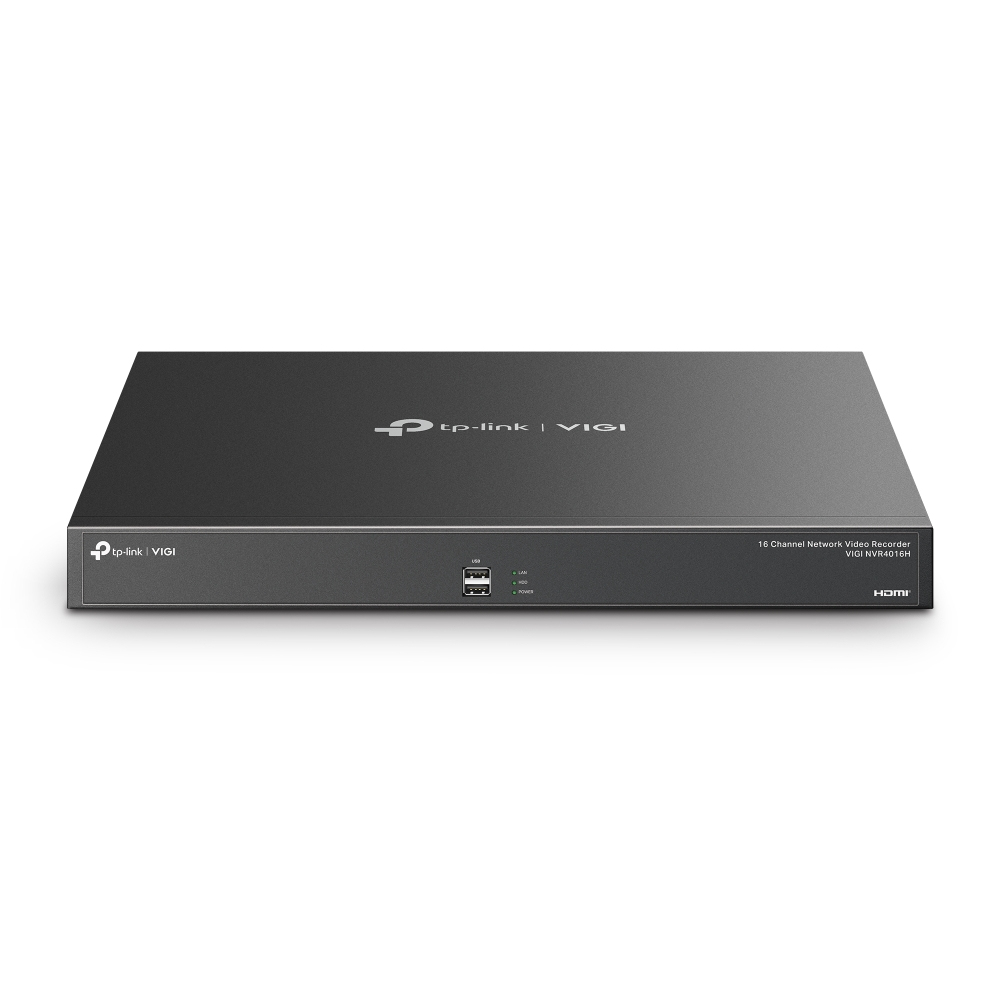

TP-Link VIGI NVR4016H network video recorder Black

Be the first to review this product
TP-Link VIGI NVR4016H. Video input channels: 16 channels, Maximum resolution: 3840 x 2160 pixels, Number of simultaneously playbacked channels: 16 channels. Maximum storage capacity: 64 TB, HDD interface: SATA. Ethernet LAN data rates: 10,100,1000 Mbit/s, Supported network protocols: UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP,.... Product colour: Black. Power consumption (max): 45 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz
Manufacturer: TP-Link
SKU: VIGI NVR4016H
Vendor: Aspects
Security Never Shuts Down
16 Channel Network Video Recorder

Feature-Packed Ports for SMB Surveillance

Dual Ethernet Ports Design

Multi-Address Mode
Allows for the implementation of two different gateways

Network Fault-Tolerance
Creates a safeguard or redundancy for your data

Port Aggregation
Realizes bandwidth stack and mutual backup

Auto Initialize for Quick Configuration
Just click “Auto Initialize” to set up basic IPC and hard disk parameters, greatly reducing your configuration time.
  • ✔ Legal warranty via the seller
  • ✔ 30 days to change your mind — free returns
  • ✔ Free delivery from €25
€708.75 incl tax
increase decrease
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Security Never Shuts Down
16 Channel Network Video Recorder

Feature-Packed Ports for SMB Surveillance

Dual Ethernet Ports Design

Multi-Address Mode
Allows for the implementation of two different gateways

Network Fault-Tolerance
Creates a safeguard or redundancy for your data

Port Aggregation
Realizes bandwidth stack and mutual backup

Auto Initialize for Quick Configuration
Just click “Auto Initialize” to set up basic IPC and hard disk parameters, greatly reducing your configuration time.
Products specifications
Features
Rack mountingYes
Reset buttonYes
Buzzer offYes
Product colourBlack
Weight & dimensions
Width440 mm
Depth330 mm
Height44 mm
Weight4 kg
Package width440 mm
Package depth528 mm
Package height100 mm
Package weight5 kg
Operational conditions
Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90%
Storage temperature (T-T)-40 - 70 °C
Storage relative humidity (H-H)10 - 90%
Power
Power consumption (max)45 W
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Output current1.5 A
Technical details
Compliance certificatesBSMI, CE, Federal Communications Commission (FCC), KC, UKCA, VCCI
Ports & interfaces
Ethernet LAN (RJ-45) ports2
Ethernet LAN data rates10,100,1000 Mbit/s
HDMI ports quantity2
VGA (D-Sub) output ports1
USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
Audio RCA inputs1
Audio RCA outputs1
eSATA ports quantity1
eSATAYes
RS-232 ports1
Supported network protocolsUPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP
Performance
Video input channels16 channels
Alarm input channels16
Alarm output channels4
Number of simultaneously playbacked channels16 channels
Video recording modes720p, 1080p
Maximum resolution3840 x 2160 pixels
Supported resolutions3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
Video motion detectionYes
Video loss detectionYes
Audio formats supportedG.711, G.711u, G.726
Video formats supportedH.264, H.264+, H.265, H.265+
Backup functionYes
Playback modesDigital zoom, Fast play, Forward, Full screen, Pause, Play, Stop
Input bandwidth320 Mbit/s
Output bandwidth320 Mbit/s
Recording modesManual, Schedule
Audio system2-way
Packaging content
Packaging content1x Lock Plate; 1x Wall Plate; 2x Distance Washers; 2x Screws 4.2x16; 2x Vertical Plate incl. Hook; 8x Screws M6x12; 8x Washers 6x19x1
System requirements
Mobile operating systems supportedAndroid, iOS
Browser supportedChrome (57+), Firefox (52+), Edge (91+)
Hard drive
HDD capacity0 GB
Number of HDDs supported4
Maximum storage capacity64 TB
HDD interfaceSATA
*
*
*
Products specifications
Features
Rack mountingYes
Reset buttonYes
Buzzer offYes
Product colourBlack
Weight & dimensions
Width440 mm
Depth330 mm
Height44 mm
Weight4 kg
Package width440 mm
Package depth528 mm
Package height100 mm
Package weight5 kg
Operational conditions
Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90%
Storage temperature (T-T)-40 - 70 °C
Storage relative humidity (H-H)10 - 90%
Power
Power consumption (max)45 W
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Output current1.5 A
Technical details
Compliance certificatesBSMI, CE, Federal Communications Commission (FCC), KC, UKCA, VCCI
Ports & interfaces
Ethernet LAN (RJ-45) ports2
Ethernet LAN data rates10,100,1000 Mbit/s
HDMI ports quantity2
VGA (D-Sub) output ports1
USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
Audio RCA inputs1
Audio RCA outputs1
eSATA ports quantity1
eSATAYes
RS-232 ports1
Supported network protocolsUPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP
Performance
Video input channels16 channels
Alarm input channels16
Alarm output channels4
Number of simultaneously playbacked channels16 channels
Video recording modes720p, 1080p
Maximum resolution3840 x 2160 pixels
Supported resolutions3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
Video motion detectionYes
Video loss detectionYes
Audio formats supportedG.711, G.711u, G.726
Video formats supportedH.264, H.264+, H.265, H.265+
Backup functionYes
Playback modesDigital zoom, Fast play, Forward, Full screen, Pause, Play, Stop
Input bandwidth320 Mbit/s
Output bandwidth320 Mbit/s
Recording modesManual, Schedule
Audio system2-way
Packaging content
Packaging content1x Lock Plate; 1x Wall Plate; 2x Distance Washers; 2x Screws 4.2x16; 2x Vertical Plate incl. Hook; 8x Screws M6x12; 8x Washers 6x19x1
System requirements
Mobile operating systems supportedAndroid, iOS
Browser supportedChrome (57+), Firefox (52+), Edge (91+)
Hard drive
HDD capacity0 GB
Number of HDDs supported4
Maximum storage capacity64 TB
HDD interfaceSATA
