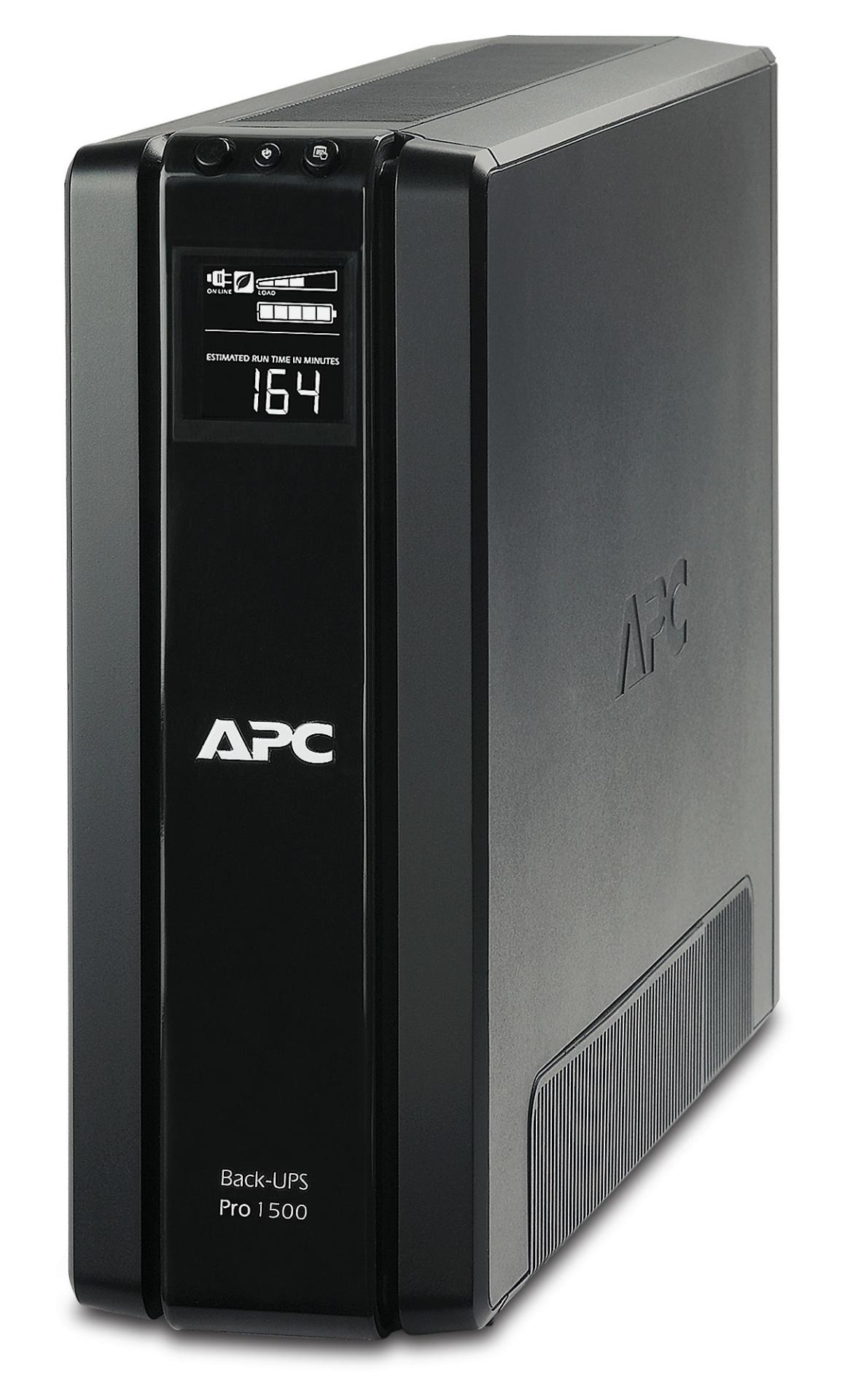

The Back-UPS Pro series offers your home and business guaranteed power protection for high performance computer systems, routers/modems, external storage devices, game consoles and other electronics.
Abundant backup power, autoshutdown software and protection from damaging surges and spikes are coupled with the Back-UPS Pro's energy saving features, voltage regulation, LCD display and other premium features to make these the perfect units to protect your data and keep you available.
Abundant backup power, autoshutdown software and protection from damaging surges and spikes are coupled with the Back-UPS Pro's energy saving features, voltage regulation, LCD display and other premium features to make these the perfect units to protect your data and keep you available.
Products specifications
| Features | |
| UPS topology | Line-Interactive |
| Output power capacity | 1.5 kVA |
| Output power | 865 W |
| Waveform | Sine |
| Input operation voltage (min) | 156 V |
| Input operation voltage (max) | 300 V |
| Input frequency | 50/60 Hz |
| Output frequency regulation | 50/60 Hz |
| Surge energy rating | 441 J |
| Hold time (min) | 10 ms |
| Hold time (max) | 12 ms |
| Efficiency | 98.9% |
| Noise level | 45 dB |
| Surge protection | Yes |
| Surge protection features | Digital Subscriber Line (DSL), Fax, Modem, Network |
| Audible alarm(s) | Yes |
| Weight & dimensions | |
| Width | 112 mm |
| Depth | 382 mm |
| Height | 301 mm |
| Weight | 13 kg |
| Other features | |
| Battery type | APCRBC124 |
| Nominal output voltage | 230 V |
| Nominal input voltage | 230 V |
| Suitable for use in country/location | Europe |
| Logistics data | |
| Products per pallet | 20 pc(s) |
| Harmonized System (HS) code | 85078000 |
| Packaging data | |
| Warranty card | Yes |
| Software CD | Yes |
| Bundled software | PowerChute Personal Edition |
| Package width | 235 mm |
| Package depth | 490 mm |
| Package height | 390 mm |
| Package weight | 13.8 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | BSI 1363, CE, NEMKO, REACH, TUV-GS |
| Ports & interfaces | |
| AC outlet types | Type F |
| Power plug | Type F |
| AC outlets quantity | 6 AC outlet(s) |
| Number of type F outputs | 6 |
| USB port | Yes |
| Design | |
| Form factor | Tower |
| Cable length | 1.83 m |
| Product colour | Black |
| Display type | LCD |
| Packaging content | |
| Cables included | Phone (RJ-11), USB cable |
| Manual | Yes |
| Battery | |
| Battery capacity | 187 VAh |
| Typical backup time at full load | 3.7 min |
| Typical backup time at half load | 12.3 min |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 8 h |
| Hot-swap battery | Yes |
| Automatic battery test | Yes |
| Cold start | Yes |
| Sustainability | |
| Sustainability certificates | ENERGY STAR, Green Premium |
*
*
*
