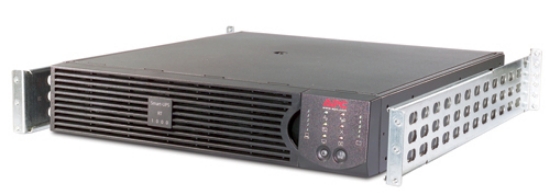

High availability, ruggedized power protection for shipboard and other transportation applications.
Products specifications
| Features | |
| Output power capacity | 1 kVA |
| Output power | 700 W |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 280 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 420 J |
| Efficiency | 88% |
| Crest factor | 3:1 |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Noise level | 55 dB |
| Weight & dimensions | |
| Width | 85 mm |
| Depth | 483 mm |
| Height | 432 mm |
| Weight | 23 kg |
| Other features | |
| Dimensions (WxDxH) | 85 x 483 x 432 mm |
| Nominal output voltage | 230 V |
| Nominal input voltage | 230 V |
| Package dimensions (WxDxH) | 630 x 594 x 286 mm |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Packaging data | |
| Package weight | 27.8 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, DNV, EN 50091-1, EN 50091-2, EN 55022 Cl. A, EN 60950, EN 61000-3-2. |
| Ports & interfaces | |
| AC outlet types | C13 coupler |
| AC outlets quantity | 8 AC outlet(s) |
| Number of output IEC jumpers | 2 |
| RS-232 ports | 1 |
| Design | |
| Form factor | Rackmount |
| Rack capacity | 2U |
| Cable length | 2.5 m |
| Product colour | Black |
| LED indicators | Yes |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 3 h |
*
*
*
Products specifications
| Features | |
| Output power capacity | 1 kVA |
| Output power | 700 W |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 280 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 420 J |
| Efficiency | 88% |
| Crest factor | 3:1 |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Noise level | 55 dB |
| Weight & dimensions | |
| Width | 85 mm |
| Depth | 483 mm |
| Height | 432 mm |
| Weight | 23 kg |
| Other features | |
| Dimensions (WxDxH) | 85 x 483 x 432 mm |
| Nominal output voltage | 230 V |
| Nominal input voltage | 230 V |
| Package dimensions (WxDxH) | 630 x 594 x 286 mm |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Packaging data | |
| Package weight | 27.8 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, DNV, EN 50091-1, EN 50091-2, EN 55022 Cl. A, EN 60950, EN 61000-3-2. |
| Ports & interfaces | |
| AC outlet types | C13 coupler |
| AC outlets quantity | 8 AC outlet(s) |
| Number of output IEC jumpers | 2 |
| RS-232 ports | 1 |
| Design | |
| Form factor | Rackmount |
| Rack capacity | 2U |
| Cable length | 2.5 m |
| Product colour | Black |
| LED indicators | Yes |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 3 h |
