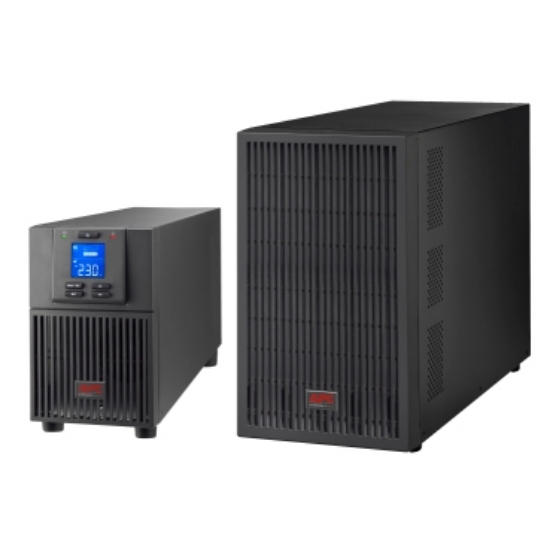

APC SRV3KIL-E. Output power capacity: 3 kVA, Output power: 2700 W, Waveform: Sine. Power plug: C20 coupler. Battery technology: Sealed Lead Acid (VRLA), Battery voltage: 72 V, Battery recharge time: 5.5 h. Product colour: Black, International Protection (IP) code: IP20. Width: 425 mm, Depth: 425 mm, Height: 336 mm
Products specifications
| Features | |
| Output power capacity | 3 kVA |
| Output power | 2700 W |
| Waveform | Sine |
| Input operation voltage (min) | 105 V |
| Input operation voltage (max) | 300 V |
| Input frequency | 40 - 70 Hz |
| Output operation voltage (min) | 230 V |
| Output frequency | 50/60 Hz |
| Surge energy rating | 600 J |
| Response time | 4 ms |
| Heat dissipation | 910 BTU/h |
| Crest factor | 3:1 |
| Noise level | 50 dB |
| Weight & dimensions | |
| Width | 425 mm |
| Depth | 425 mm |
| Height | 336 mm |
| Weight | 46.2 kg |
| Logistics data | |
| Warranty period | 2 year(s) |
| Packaging data | |
| Package width | 565 mm |
| Package depth | 565 mm |
| Package height | 465 mm |
| Package weight | 49.9 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Ports & interfaces | |
| Power plug | C20 coupler |
| USB port | Yes |
| Design | |
| Product colour | Black |
| International Protection (IP) code | IP20 |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 72 V |
| Battery recharge time | 5.5 h |
*
*
*
