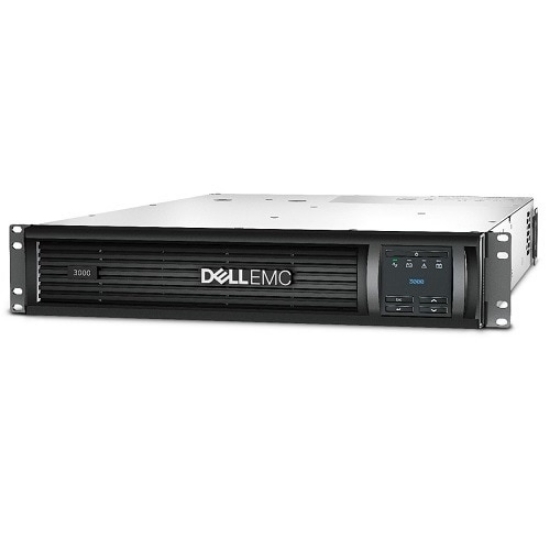

In addition to legendary reliability and manageability, Smart-UPS have extremely high efficiency at low, medium and high load levels making them ideal for today's multi-core or virtualized servers that have varying load consumption. Rack mounted Smart-UPS are ideal for powering Blade or density optimized servers in a distributed power protection environment as the primary or redundant protection. Smart-UPS models have long been considered the benchmark for all network and server UPS's. Smart-UPS feature a 16-segment LED display, extended range automatic voltage regulation (AVR), and pure sine wave output on battery.
Products specifications
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 3 kVA |
| Output power | 2700 W |
| Waveform | Sine |
| Input operation voltage (min) | 150 V |
| Input operation voltage (max) | 300 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (max) | 230 V |
| Output frequency | 50/60 Hz |
| Automatic Voltage Regulation (AVR) | Yes |
| Surge energy rating | 459 J |
| Emergency Power Off (EPO) | Yes |
| Audible alarm(s) | Yes |
| Auto-restart | Yes |
| Weight & dimensions | |
| Width | 480 mm |
| Depth | 683 mm |
| Height | 86 mm |
| Weight | 44.3 kg |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Ports & interfaces | |
| USB port | Yes |
| Serial interface | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Design | |
| Form factor | Rackmount |
| Rack capacity | 2U |
| Cable length | 2.4 m |
| Product colour | Black |
| Display type | LCD |
| Packaging content | |
| Rack mount kit | Yes |
| Battery | |
| Automatic battery test | Yes |
| Cold start | Yes |
*
*
*
