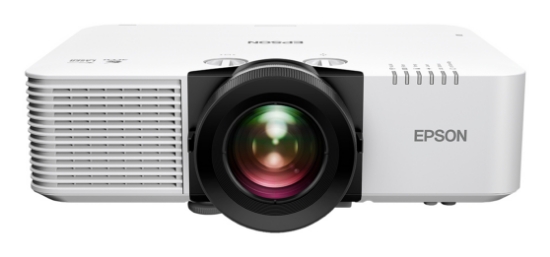

Designed for compact spaces, the EB-L690SE short-throw offers 6,000 lumens of bright WUXGA resolution with 4K Enhancement, HDR and advanced installation features. With up to 30,000 hours of maintenance-free projection in Eco mode, lens shift, 1.4x zoom and corner focus, it’s ideal for professional applications. Flexible control options are available via HDBaseT, LAN and more.
Awe-inspiring immersive short throw projector
Create stunning, shadow-free presentations in compact spaces with a short throw ratio of 0.5–0.7:1, built-in lens shift, and WUXGA resolution with 4K Enhancement. With 1.4x optical zoom, corner focus, and display sizes up to 500", this high-performance display is perfect for immersive applications. Its compact design, low noise, and sleek white chassis ensure crystal-clear images in any setting, all at an affordable price.
Flexible installation for professional setups
Designed for easy installation, the EB-L690SE can be quickly configured for optimal performance in any room layout. Features like lens shift, horizontal and vertical keystone correction, and 360° projection ensure precise image positioning. Options such as split-screen capabilities, edge blending, and geometry correction, along with the optional ELPEC01 camera and Epson Projector Professional Tool, enable fast setup and calibration, enhancing flexibility for complex setups.
Stream, share, and connect with ease
With optional wireless connectivity, a USB-A port for PC-free operation, and HDBaseT/HDMI daisy chaining, the EB-L690SE enhances installation flexibility and convenience.
Smart control for seamless experience
The EB-L690SE streamlines large-scale deployments with NFC functionality and the Epson Projector Config Tool. The intuitive OSD menu, coupled with Epson’s EPMC solution, enables effortless cloud monitoring and management. Compatible with Crestron XiO Cloud, it offers centralised control for seamless operation.
Peace of mind with high durability and support
Engineered for long-lasting performance, the EB-L690SE features fit-and-forget laser technology, backed by a 3-year warranty. It minimises maintenance needs, reduces downtime, and offers peace of mind with Epson’s renowned after-sales support.
Environmentally friendly design
Built with sustainability in mind, our projectors are manufactured using 100% renewable electricity* and packaged in 100% recyclable cardboard. With low maintenance and energy consumption and benefits from end-of-life recycling and energy recovery services across Europe.
Awe-inspiring immersive short throw projector
Create stunning, shadow-free presentations in compact spaces with a short throw ratio of 0.5–0.7:1, built-in lens shift, and WUXGA resolution with 4K Enhancement. With 1.4x optical zoom, corner focus, and display sizes up to 500", this high-performance display is perfect for immersive applications. Its compact design, low noise, and sleek white chassis ensure crystal-clear images in any setting, all at an affordable price.
Flexible installation for professional setups
Designed for easy installation, the EB-L690SE can be quickly configured for optimal performance in any room layout. Features like lens shift, horizontal and vertical keystone correction, and 360° projection ensure precise image positioning. Options such as split-screen capabilities, edge blending, and geometry correction, along with the optional ELPEC01 camera and Epson Projector Professional Tool, enable fast setup and calibration, enhancing flexibility for complex setups.
Stream, share, and connect with ease
With optional wireless connectivity, a USB-A port for PC-free operation, and HDBaseT/HDMI daisy chaining, the EB-L690SE enhances installation flexibility and convenience.
Smart control for seamless experience
The EB-L690SE streamlines large-scale deployments with NFC functionality and the Epson Projector Config Tool. The intuitive OSD menu, coupled with Epson’s EPMC solution, enables effortless cloud monitoring and management. Compatible with Crestron XiO Cloud, it offers centralised control for seamless operation.
Peace of mind with high durability and support
Engineered for long-lasting performance, the EB-L690SE features fit-and-forget laser technology, backed by a 3-year warranty. It minimises maintenance needs, reduces downtime, and offers peace of mind with Epson’s renowned after-sales support.
Environmentally friendly design
Built with sustainability in mind, our projectors are manufactured using 100% renewable electricity* and packaged in 100% recyclable cardboard. With low maintenance and energy consumption and benefits from end-of-life recycling and energy recovery services across Europe.
Products specifications
| Features | |
| Interactive | No |
| Noise level (economic mode) | 26 dB |
| HDCP | Yes |
| Preset modes | Cinema, Dynamic, Presentation |
| Noise level | 36 dB |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 368 mm |
| Height | 151 mm |
| Weight | 9.3 kg |
| Operational conditions | |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Power | |
| Power source | AC |
| Power consumption (typical) | 362 W |
| Power consumption (standby) | 0.4 W |
| Power consumption (max) | 415 W |
| Power consumption (economy mode) | 250 W |
| AC input frequency | 50/60 Hz |
| AC adapter output voltage | 100 - 240 V |
| Technical details | |
| Warranty period | 3 year(s) |
| Ports & interfaces | |
| HDMI version | 2.3 |
| HDBaseT port | Yes |
| USB 2.0 ports quantity | 3 |
| USB 2.0 Type-A ports quantity | 2 |
| USB 2.0 Type-B ports quantity | 1 |
| Serial interface type | RS-232C |
| HDMI ports quantity | 2 |
| DVI port | No |
| Network | |
| Ethernet LAN | Yes |
| Design | |
| Market positioning | Education |
| Product type | Short throw projector |
| Product colour | White |
| Placement | Ceiling, Desktop |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Packaging content | |
| Remote control included | Yes |
| Batteries included | Yes |
| Multimedia | |
| Built-in speaker(s) | Yes |
| RMS rated power | 10 W |
| Storage | |
| Card reader integrated | No |
| Lens system | |
| Focus | Manual |
| Focal length range | 7.54 - 10.55 mm |
| Aperture range (F-F) | 1.8 - 2 |
| Zoom capability | Yes |
| Zoom type | Manual |
| Throw ratio | 0.50 - 1.70:1 |
| Horizontal lens shift range | -20 - 20% |
| Vertical lens shift range | -50 - 50% |
| Projector | |
| Screen size compatibility | 2540 - 12700 mm (100 - 500") |
| Projection distance | 1.09 - 7.84 m |
| Projection distance (wide) | 1.1 - 5.6 m |
| Projection distance (tele) | 1.5 - 7.8 m |
| Projector brightness | 6000 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 5000000:1 |
| Native aspect ratio | 16:10 |
| Number of colours | 1.07 billion colours |
| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -30 - 30° |
| Light source | |
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
| Video | |
| Analog signal format system | Not supported |
| Full HD | Yes |
| 3D | No |
| Video colour modes | Cinema, DICOM simulation mode, Dynamic, Multi-projection, Natural, Presentation |
*
*
*
