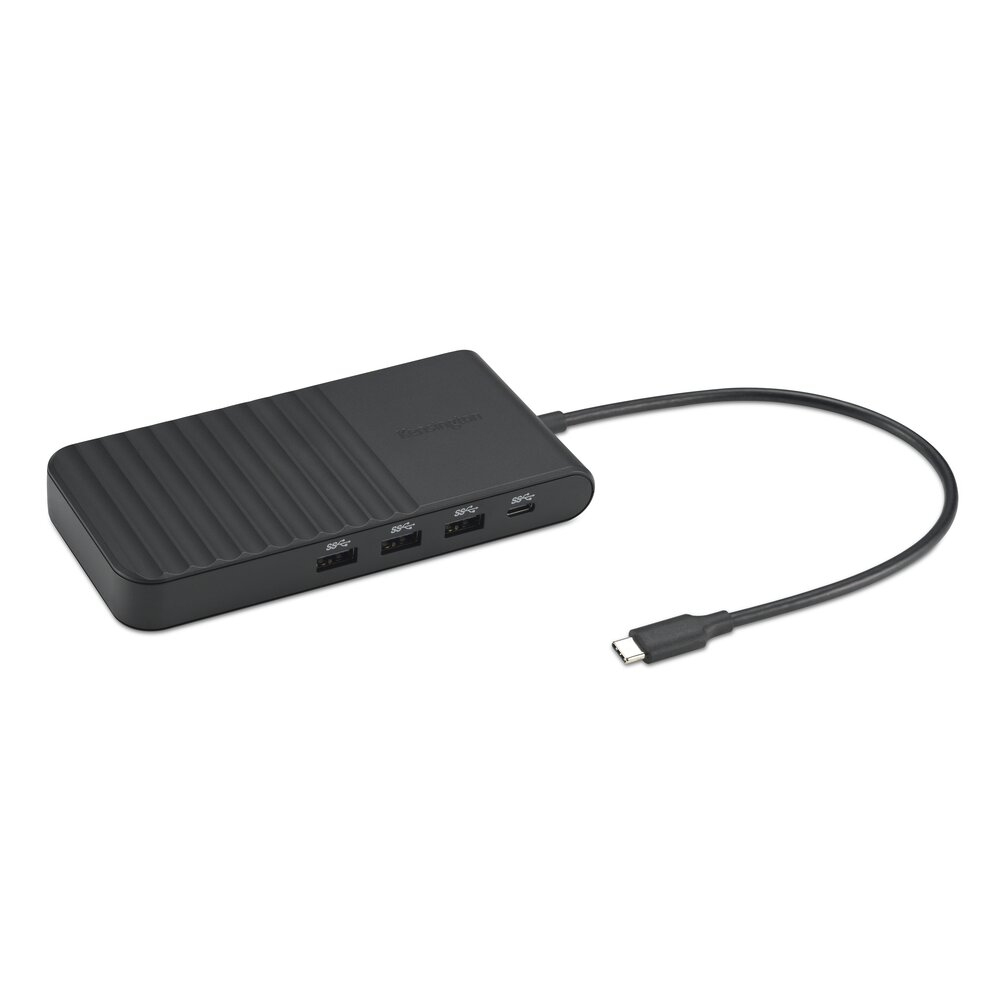

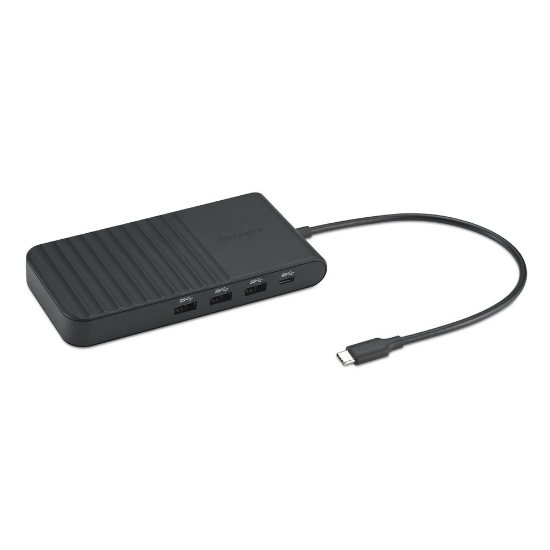

Professionals with visually demanding workflows benefit from triple monitor support wherever they are working. Most mobile docking stations are limited to single or dual monitor configurations, leaving desktop docks as the only connectivity option. The UH1500P EQ USB-C® 5Gbps Triple Video Driverless Mobile Dock supports up to three external displays and allows you to travel with less weight and clutter. Offering a smart and sustainability-focused 9-in-1 design, UH1500P uses your laptop’s USB-C® power adapter or battery for charging to eliminate an additional power brick and provides multiple ports to streamline file transfers without the need for additional adapters or dongles.
Triple Video for Windows
Extend the visual productivity of your mobile workstation to support up to 3 x 1080p @ 60Hz, 2 x 4K @ 60Hz for Windows devices and 1 x 4K @ 60Hz for both Windows and MacBook devices.
Universal Compatibility
Supports USB-C® based devices (Thunderbolt™ 4 & 5, USB4® and USB-C® Alt Mode) running Windows 10 or later, macOS 11* or later, iPadOS 13* or later and Samsung DeX®. * iPadOS or macOS supports only a single 4K @ 60Hz in extended mode.
USB-C® Driverless Solution
No need to download, install or update software - an ideal USB-C® plug-and-play solution.
Sustainability Focused
The plastic in this product contains at least 63% post-consumer recycled (PCR) content** and is delivered in Forest Stewardship Council (FSC®) certified packaging. ** Does not include cable.
Up to 85W Power Pass-Through
Plug your laptop’s USB-C® power adapter (85W or greater) into the dock for pass-through power to the laptop, or power the dock and connected devices using the laptop’s battery when travelling.
9-in-1 Design with 5 x USB Ports
Optimise peripheral connectivity with 3 x USB-A 3.2 Gen1 ports, 2 x USB-C® ports (one for power-pass through and one for device charging), 2 x HDMI®, 1 x DP and 1 x Gigabit Ethernet port.
Sleek, Compact Design
Easily fits into your travel backpack or carrying case for productivity on the go. Includes a 170mm (6.7”) USB-C® cable for connecting to your host device.
Triple Video for Windows
Extend the visual productivity of your mobile workstation to support up to 3 x 1080p @ 60Hz, 2 x 4K @ 60Hz for Windows devices and 1 x 4K @ 60Hz for both Windows and MacBook devices.
Universal Compatibility
Supports USB-C® based devices (Thunderbolt™ 4 & 5, USB4® and USB-C® Alt Mode) running Windows 10 or later, macOS 11* or later, iPadOS 13* or later and Samsung DeX®. * iPadOS or macOS supports only a single 4K @ 60Hz in extended mode.
USB-C® Driverless Solution
No need to download, install or update software - an ideal USB-C® plug-and-play solution.
Sustainability Focused
The plastic in this product contains at least 63% post-consumer recycled (PCR) content** and is delivered in Forest Stewardship Council (FSC®) certified packaging. ** Does not include cable.
Up to 85W Power Pass-Through
Plug your laptop’s USB-C® power adapter (85W or greater) into the dock for pass-through power to the laptop, or power the dock and connected devices using the laptop’s battery when travelling.
9-in-1 Design with 5 x USB Ports
Optimise peripheral connectivity with 3 x USB-A 3.2 Gen1 ports, 2 x USB-C® ports (one for power-pass through and one for device charging), 2 x HDMI®, 1 x DP and 1 x Gigabit Ethernet port.
Sleek, Compact Design
Easily fits into your travel backpack or carrying case for productivity on the go. Includes a 170mm (6.7”) USB-C® cable for connecting to your host device.
Products specifications
| Weight & dimensions | |
| Width | 150 mm |
| Depth | 71 mm |
| Height | 21 mm |
| Weight | 154 g |
| Logistics data | |
| Products per master (outer) case | 10 pc(s) |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 180 mm |
| Package depth | 130 mm |
| Package height | 35 mm |
| Package weight | 180 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Power | |
| Power source type | USB |
| USB cable length | 0.17 m |
| Technical details | |
| Compliance certificates | CB, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA, VCCI |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 85 W |
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Microphone in | No |
| HDCP | Yes |
| HDCP version | 2.3 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Performance | |
| Card reader integrated | No |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 3840 x 2160 pixels |
| Number of displays supported | 3 |
| Product colour | Black |
| Plug and Play | Yes |
| Country of origin | China |
| Packaging content | |
| Warranty card | Yes |
| Quick start guide | Yes |
| Software | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Mac operating systems supported | Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia |
| Mobile operating systems supported | iPadOS 13, iPadOS 14, iPadOS 17.1.1, iPadOS 17.4, iPadOS 17.5 |
*
*
*
Products specifications
| Weight & dimensions | |
| Width | 150 mm |
| Depth | 71 mm |
| Height | 21 mm |
| Weight | 154 g |
| Logistics data | |
| Products per master (outer) case | 10 pc(s) |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 180 mm |
| Package depth | 130 mm |
| Package height | 35 mm |
| Package weight | 180 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Power | |
| Power source type | USB |
| USB cable length | 0.17 m |
| Technical details | |
| Compliance certificates | CB, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA, VCCI |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 85 W |
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Microphone in | No |
| HDCP | Yes |
| HDCP version | 2.3 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Performance | |
| Card reader integrated | No |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 3840 x 2160 pixels |
| Number of displays supported | 3 |
| Product colour | Black |
| Plug and Play | Yes |
| Country of origin | China |
| Packaging content | |
| Warranty card | Yes |
| Quick start guide | Yes |
| Software | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Mac operating systems supported | Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia |
| Mobile operating systems supported | iPadOS 13, iPadOS 14, iPadOS 17.1.1, iPadOS 17.4, iPadOS 17.5 |
