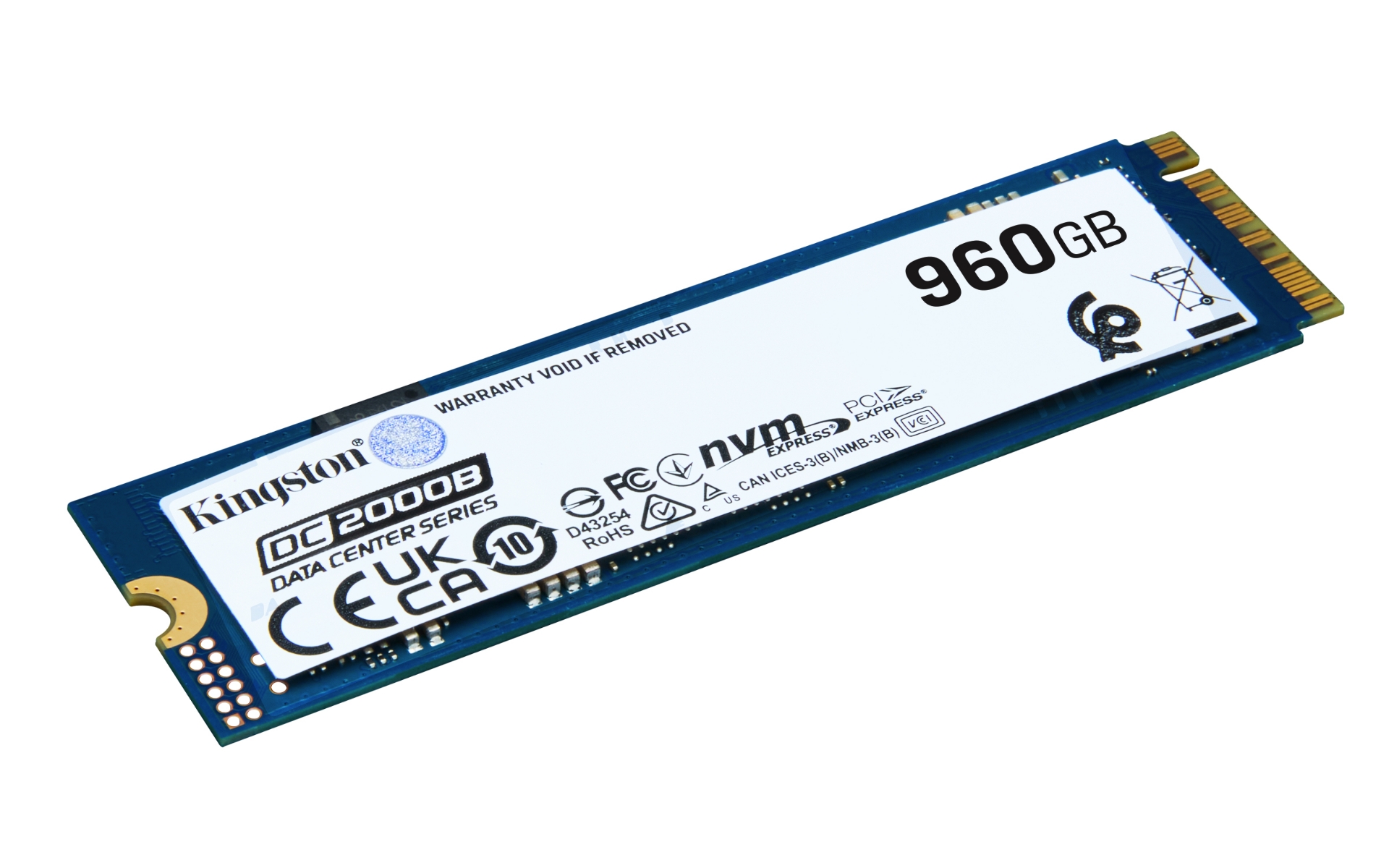

Kingston Technology 960G DC2000B PCIe 4.0 M.2 2280 Enterprise SSD

Kingston Technology 960G DC2000B PCIe 4.0 M.2 2280 Enterprise SSD. SSD capacity: 960 GB, SSD form factor: M.2, Read speed: 7000 MB/s, Write speed: 1300 MB/s, Component for: Server
Manufacturer: Kingston
SKU: SEDC2000BM8/960G
Vendor: Aspects
Enterprise class for server applications
Kingston’s DC2000B SSD is a high-performance boot drive designed for data centers using the latest Gen 4x4 PCIe interface with 3D TLC NAND. With low latency, IOPS consistency and hardware-based power loss protection, it ensures reliability and efficiency. Available in capacities of up to 960GB, it's ideal for enterprise server boot and caching applications.

Kingston DC2000B is a high-performance PCIe 4.0 NVMe M.2 SSD using a Gen 4x4 PCIe controller and 3D TLC NAND. Ideally suited for use in high-volume rack-mount servers as an internal boot drive(s) to preserve valuable front-loading drive bays, as well as for use in purpose-built systems where a high-performance M.2 SSD is needed that includes hardware-based on-board power loss protection (PLP). New for DC2000B is an integrated aluminium heatsink that offers broader thermal compatibility for a wide range of systems. DC2000B delivers low latency and excellent IO consistency to handle various workloads from boot drive applications to high-speed application caching. DC2000B is rated at 0.4 DWPD write endurance and carries a 5-year warranty."

PCIe 4.0 NVMe performance
Utilises PCIe Gen 4x4 lanes for high-performance speeds.

On-board power loss protection (PLP)
Reduce the possibility of data loss and/or corruption due to unexpected power-off.

Low latency and IOPS consistency
Firmware optimised to deliver low latency and IO consistency for high duty cycle workloads.

Designed for data center environments
Optimised to meet the demands of server boot applications with low latency and IO consistency as the key design criteria.
  • Legal warranty via the seller
  • 30 days to change your mind — free returns
  • Free delivery from €25
€213.11 incl tax
Lowest price in the last 30 days: $211.88
increase decrease
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Enterprise class for server applications
Kingston’s DC2000B SSD is a high-performance boot drive designed for data centers using the latest Gen 4x4 PCIe interface with 3D TLC NAND. With low latency, IOPS consistency and hardware-based power loss protection, it ensures reliability and efficiency. Available in capacities of up to 960GB, it's ideal for enterprise server boot and caching applications.

Kingston DC2000B is a high-performance PCIe 4.0 NVMe M.2 SSD using a Gen 4x4 PCIe controller and 3D TLC NAND. Ideally suited for use in high-volume rack-mount servers as an internal boot drive(s) to preserve valuable front-loading drive bays, as well as for use in purpose-built systems where a high-performance M.2 SSD is needed that includes hardware-based on-board power loss protection (PLP). New for DC2000B is an integrated aluminium heatsink that offers broader thermal compatibility for a wide range of systems. DC2000B delivers low latency and excellent IO consistency to handle various workloads from boot drive applications to high-speed application caching. DC2000B is rated at 0.4 DWPD write endurance and carries a 5-year warranty."

PCIe 4.0 NVMe performance
Utilises PCIe Gen 4x4 lanes for high-performance speeds.

On-board power loss protection (PLP)
Reduce the possibility of data loss and/or corruption due to unexpected power-off.

Low latency and IOPS consistency
Firmware optimised to deliver low latency and IO consistency for high duty cycle workloads.

Designed for data center environments
Optimised to meet the demands of server boot applications with low latency and IO consistency as the key design criteria.
Products specifications
Features
SSD capacity960 GB
SSD form factorM.2
InterfacePCI Express 4.0
NVMeYes
Memory type3D TLC
Component forServer
M.2 SSD size2280 (22 x 80 mm)
Read speed7000 MB/s
Write speed1300 MB/s
Random read (4KB)540000 IOPS
Random write (4KB)47000 IOPS
Read latency70 µs
Write latency20 µs
PCI Express interface data lanesx4
S.M.A.R.T. supportYes
H/W PLP functionYes
Mean time between failures (MTBF)2000000 h
Drive writes per day (DWPD)0.4
TBW rating700
Weight & dimensions
Width22 mm
Depth80 mm
Height8.9 mm
Weight11 g
Other features
Cooling typeHeatsink
Logistics data
Country of originChina, Taiwan
Master (outer) case width135.9 mm
Master (outer) case length203.2 mm
Master (outer) case height69.8 mm
Master (outer) case gross weight292.62 g
Products per master (outer) case6 pc(s)
Packaging data
Package width129.5 mm
Package depth14.2 mm
Package height184.2 mm
Package weight35.77 g
Operational conditions
Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-40 - 85 °C
Non-operating vibration20 G
Power
Power consumption (read)3.36 W
Power consumption (write)7.8 W
Average power consumption (read)3.26 W
Average power consumption (write)7.36 W
*
*
*
