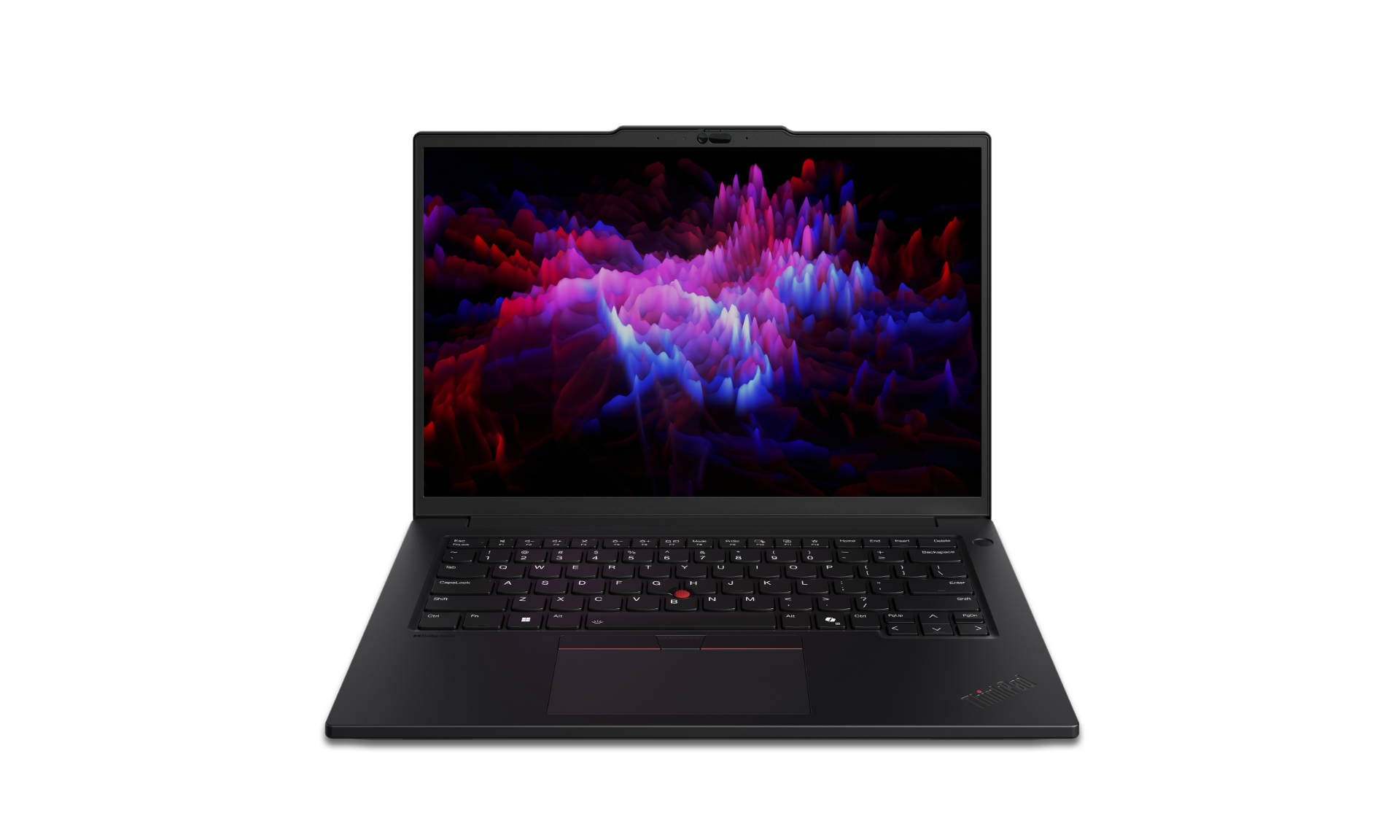

Lenovo ThinkPad P14s Gen 5 (Intel). Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra 7, Processor model: 155H. Display diagonal: 36.8 cm (14.5"), HD type: WUXGA, Display resolution: 1920 x 1200 pixels. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel Arc Graphics, Discrete graphics card model: NVIDIA RTX 500 Ada. Operating system installed: Windows 11 Pro. Product colour: Black
Products specifications
| Weight & dimensions | |
| Width | 325.5 mm, 325.5 mm |
| Depth | 227.6 mm, 227.6 mm |
| Height | 18.5 mm, 18.5 mm |
| Weight | 1.61 kg, 1.61 kg |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 °C, 5 - 35 °C |
| Storage temperature (T-T) | 5 - 43 °C, 5 - 43 °C |
| Operating relative humidity (H-H) | 8 - 95%, 8 - 95% |
| Storage relative humidity (H-H) | 5 - 95%, 5 - 95% |
| Maximum shipping altitude | 3048 m, 3048 m |
| Power | |
| AC adapter power | 135 W, 135 W |
| AC adapter frequency | 50/60 Hz, 50/60 Hz |
| AC adapter input voltage | 100 - 240 V, 100 - 240 V |
| USB Type-C charging port | Yes, Yes |
| USB Power Delivery (USB PD) | Yes, Yes |
| Certificates | |
| Certification | ENERGY STAR,TCO,EPEAT Gold,RoHS, ENERGY STAR,TCO,EPEAT Gold,RoHS |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2, 2 |
| Ethernet LAN (RJ-45) ports | 1, 1 |
| HDMI ports quantity | 1, 1 |
| HDMI version | 2.1, 2.1 |
| Thunderbolt 4 ports quantity | 2, 2 |
| Intel® Thunderbolt 4 | Yes, Yes |
| Combo headphone/mic port | Yes, Yes |
| USB Sleep-and-Charge | Yes, Yes |
| Network | |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax), Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax), Wi-Fi 6E (802.11ax) |
| Mobile network connection | No, No |
| Antenna type | 2x2, 2x2 |
| WLAN controller model | Intel Wi-Fi 6E AX211, Intel Wi-Fi 6E AX211 |
| WLAN controller manufacturer | Intel, Intel |
| Ethernet LAN | Yes, Yes |
| Ethernet LAN data rates | 100,1000 Mbit/s, 100,1000 Mbit/s |
| Bluetooth | Yes, Yes |
| Bluetooth version | 5.3, 5.3 |
| Near Field Communication (NFC) | No, No |
| WWAN | Not installed, Not installed |
| Design | |
| Colour name | Black, Black |
| Product type | Laptop, Laptop |
| Product colour | Black, Black |
| Form factor | Clamshell, Clamshell |
| Housing material | Aluminium, Aluminium |
| Performance | |
| Motherboard chipset | Intel SoC, Intel SoC |
| Display | |
| Display diagonal | 36.8 cm (14.5"), 36.8 cm (14.5") |
| Display resolution | 1920 x 1200 pixels, 1920 x 1200 pixels |
| Touchscreen | No, No |
| HD type | WUXGA, WUXGA |
| Panel type | IPS, IPS |
| LED backlight | Yes, Yes |
| Native aspect ratio | 16:10, 16:10 |
| Anti-glare screen | Yes, Yes |
| Display brightness | 300 cd/m², 300 cd/m² |
| RGB colour space | NTSC, NTSC |
| Colour gamut | 45%, 45% |
| Maximum refresh rate | 60 Hz, 60 Hz |
| Packaging content | |
| AC adapter included | Yes, Yes |
| Battery | |
| Battery technology | Lithium Polymer (LiPo), Lithium Polymer (LiPo) |
| Battery capacity | 57 Wh, 57 Wh |
| Keyboard | |
| Pointing device | ThinkPad UltraNav, ThinkPad UltraNav |
| Numeric keypad | No, No |
| Keyboard backlit | Yes, Yes |
| Keyboard language | English, English |
| Keyboard layout | QWERTY |
| Security | |
| Cable lock slot | Yes, Yes |
| Cable lock slot type | Kensington, Kensington |
| Fingerprint reader | Yes, Yes |
| Smart card reader | Yes, Yes |
| Windows Hello | Yes, Yes |
| Trusted Platform Module (TPM) | Yes, Yes |
| Trusted Platform Module (TPM) version | 2.0, 2.0 |
| Audio | |
| Audio chip | Realtek ALC3287, Realtek ALC3287 |
| Number of built-in speakers | 2, 2 |
| Speaker power | 2 W, 2 W |
| Built-in microphone | Yes, Yes |
| Number of microphones | 2, 2 |
| Processor | |
| Processor manufacturer | Intel, Intel |
| Processor family | Intel Core Ultra 7, Intel Core Ultra 7 |
| Processor generation | Intel® Core™ Ultra (Series 1), Intel® Core™ Ultra (Series 1) |
| Processor model | 155H, 155H |
| Processor cores | 16, 16 |
| Processor threads | 22, 22 |
| Processor boost frequency | 4.8 GHz, 4.8 GHz |
| Performance cores | 6, 6 |
| Efficient cores | 8, 8 |
| Low Power Efficient-cores | 2, 2 |
| Performance-core Max Turbo Frequency | 4.8 GHz, 4.8 GHz |
| Efficient-core Max Turbo Frequency | 3.8 GHz, 3.8 GHz |
| Low Power Efficient-core Max Turbo Frequency | 2.5 GHz, 2.5 GHz |
| Performance-core base frequency | 1.4 GHz, 1.4 GHz |
| Efficient-core base frequency | 0.9 GHz, 0.9 GHz |
| Low Power Efficient-core Base Frequency | 700 MHz, 700 MHz |
| Processor cache | 24 MB, 24 MB |
| Processor cache type | Smart Cache, Smart Cache |
| Processor base power | 28 W, 28 W |
| Maximum turbo power | 115 W, 115 W |
| Memory | |
| Internal memory | 16 GB, 16 GB |
| Internal memory type | DDR5-SDRAM, DDR5-SDRAM |
| Memory clock speed | 5600 MHz, 5600 MHz |
| Memory form factor | SO-DIMM, SO-DIMM |
| Memory layout (slots x size) | 1 x 16 GB, 1 x 16 GB |
| Memory slots | 2x SO-DIMM, 2x SO-DIMM |
| Maximum internal memory | 96 GB, 96 GB |
| Storage | |
| Total storage capacity | 512 GB, 512 GB |
| Storage media | SSD, SSD |
| Total SSDs capacity | 512 GB, 512 GB |
| Number of SSDs installed | 1, 1 |
| SSD capacity | 512 GB, 512 GB |
| SSD interface | PCI Express 4.0, PCI Express 4.0 |
| NVMe | Yes, Yes |
| SSD form factor | M.2, M.2 |
| Optical drive type | No, No |
| Card reader integrated | No, No |
| Graphics | |
| Discrete GPU manufacturer | NVIDIA, NVIDIA |
| Discrete graphics card model | NVIDIA RTX 500 Ada, NVIDIA RTX 500 Ada |
| Discrete graphics card memory | 4 GB, 4 GB |
| Discrete graphics memory type | GDDR6, GDDR6 |
| On-board graphics card | Yes, Yes |
| On-board GPU manufacturer | Intel, Intel |
| Discrete graphics card | Yes, Yes |
| On-board graphics card family | Intel Arc Graphics, Intel Arc Graphics |
| On-board graphics card model | Intel Arc Graphics, Intel Arc Graphics |
| Software | |
| Operating system architecture | 64-bit, 64-bit |
| Operating system installed | Windows 11 Pro, Windows 11 Pro |
| Operating system language | English, French, German, Dutch, Italian |
| Camera | |
| Front camera resolution (numeric) | 5 MP, 5 MP |
| Infrared (IR) camera | Yes, Yes |
| Privacy camera | Yes, Yes |
| Privacy type | Privacy shutter, Privacy shutter |
| Neural processor unit (NPU) | |
| Neural processor unit (NPU) | Intel AI Boost, Intel AI Boost |
| Maximum frequency NPU | 1.4 GHz, 1.4 GHz |
| Sparsity support | Yes, Yes |
| Windows Studio effects support | Yes, Yes |
| AI datatype support on NPU | FP16, FP32, Int8, FP16, FP32, Int8 |
| AI software frameworks supported by NPU | DirectML, ONNX RT, OpenVINO, Windows ML, DirectML, ONNX RT, OpenVINO, Windows ML |
  *
  *
  *
