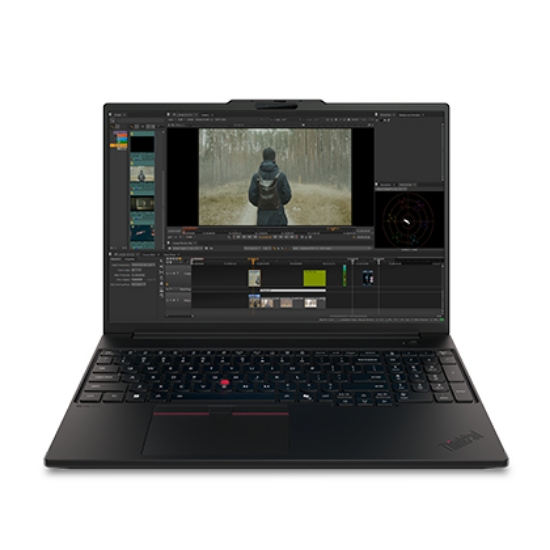

Lenovo ThinkPad P16s Gen 5 (Intel). Product type: Mobile workstation, Form factor: Clamshell. Processor family: Intel Core Ultra 9, Processor model: 386H. Display diagonal: 40.6 cm (16"), HD type: WUXGA, Display resolution: 1920 x 1200 pixels, Touchscreen. Internal memory: 64 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel® Graphics. Operating system installed: Windows 11 Pro. Product colour: Black
Products specifications
| Weight & dimensions | |
| Width | 357.9 mm |
| Depth | 247.9 mm |
| Height (front) | 1.15 cm |
| Height (rear) | 1.81 cm |
| Weight | 1.79 kg |
| Power | |
| AC adapter power | 140 W |
| USB Type-C charging port | Yes |
| USB Power Delivery (USB PD) | Yes |
| Certificates | |
| Certification | ENERGY STAR,TCO,EPEAT Gold,RoHS |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| Combo headphone/mic port | Yes |
| USB Sleep-and-Charge | Yes |
| Network | |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Mobile network connection | No |
| Antenna type | 2x2 |
| WLAN controller manufacturer | Intel |
| Ethernet LAN | Yes |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Near Field Communication (NFC) | No |
| WWAN | Upgradable |
| Design | |
| Product type | Mobile workstation |
| Product colour | Black |
| Form factor | Clamshell |
| Housing material | Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |
| Display back cover material | Aluminium |
| Performance | |
| Motherboard chipset | Intel SoC |
| Display | |
| Display diagonal | 40.6 cm (16") |
| Display resolution | 1920 x 1200 pixels |
| Touchscreen | Yes |
| HD type | WUXGA |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Anti-glare screen | Yes |
| Display brightness | 500 cd/m² |
| RGB colour space | sRGB |
| Colour gamut | 100% |
| Maximum refresh rate | 60 Hz |
| Packaging content | |
| AC adapter included | Yes |
| Battery | |
| Battery capacity | 90 Wh |
| Keyboard | |
| Pointing device | ThinkPad UltraNav |
| Numeric keypad | Yes |
| Keyboard backlit | Yes |
| Keyboard language | English |
| Security | |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Fingerprint reader | Yes |
| Smart card reader | No |
| Windows Hello | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Audio | |
| Audio chip | Realtek ALC722-CG |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Built-in microphone | Yes |
| Number of microphones | 2 |
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 9 |
| Processor generation | Intel® Core™ Ultra (Series 3) |
| Processor model | 386H |
| Processor cores | 16 |
| Processor threads | 16 |
| Processor boost frequency | 4.9 GHz |
| Performance cores | 4 |
| Efficient cores | 8 |
| Low Power Efficient-cores | 4 |
| Performance-core Max Turbo Frequency | 4.9 GHz |
| Efficient-core Max Turbo Frequency | 3.7 GHz |
| Low Power Efficient-core Max Turbo Frequency | 3.5 GHz |
| Performance-core base frequency | 2.1 GHz |
| Efficient-core base frequency | 1.6 GHz |
| Low Power Efficient-core Base Frequency | 1600 MHz |
| Processor cache | 18 MB |
| Processor cache type | Smart Cache |
| Processor base power | 25 W |
| Maximum turbo power | 80 W |
| Memory | |
| Internal memory | 64 GB |
| Internal memory type | LPDDR5x-SDRAM |
| Memory clock speed | 7467 MHz |
| Maximum internal memory | 96 GB |
| Storage | |
| Total storage capacity | 1 TB |
| Storage media | SSD |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Optical drive type | No |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
| Graphics | |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card model | NVIDIA RTX PRO 2000 Blackwell |
| Discrete graphics card memory | 8 GB |
| Discrete graphics memory type | GDDR7 |
| On-board graphics card | Yes |
| On-board GPU manufacturer | Intel |
| Discrete graphics card | Yes |
| On-board graphics card family | Intel Graphics |
| On-board graphics card model | Intel Graphics |
| Software | |
| Operating system language | English, French, German, Dutch, Italian |
| Operating system installed | Windows 11 Pro |
| Bundled software | Intel Connectivity Performance Suite + Lenovo AI Now |
| Camera | |
| Front camera | Yes |
| Front camera resolution (numeric) | 5 MP |
| Infrared (IR) camera | Yes |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
| Neural processor unit (NPU) | |
| Neural processor unit (NPU) | Intel AI Boost |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI software frameworks supported by NPU | OpenVINO, Windows ML, ONNX RT, WebNN |
| NPU performance up to | 50 TOPs |
| GPU performance up to | 40 TOPs |
*
*
*
