IDEAL FOR COUNTLESS APPLICATIONS

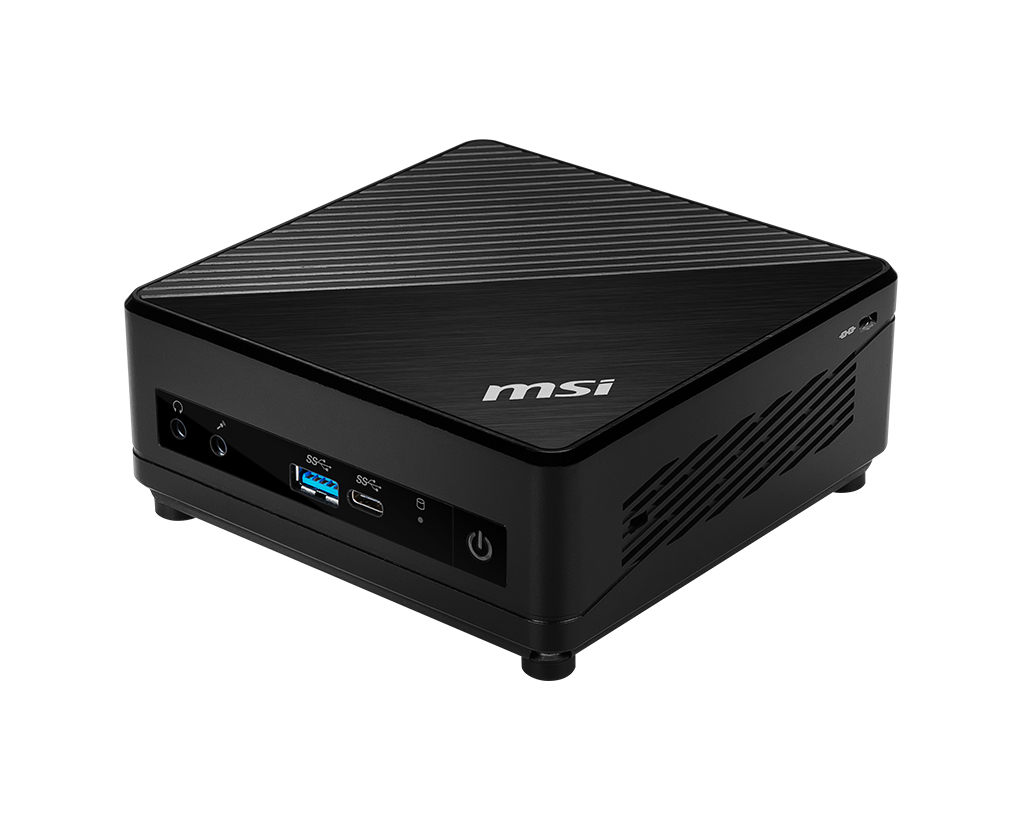

The MSI Cubi 5 is a small and powerful mini-desktop. It is suited to serve as HTPC at home, all-around media PC at home, at the office or for any commercial project.
FREE FROM LIMITATIONS
Intel® Core™ i7 processor (Comet Lake), delivering computing capability which will keep you in the flow, wherever you go.
HAND PALM-SIZED PC
MSI Cubi 5 is the smallest mini PC in its kind. With a 0.66 liter case that still provides all the elements of a desktop-worthy PC.
MOUNTABLE TO A MONITOR
Cubi 5 is designed with a mini size and supports standard VESA-mount. Mount the Cubi 5 to the back of a monitor and make the PC completely invisible.
SUPPORT EXTERNAL POWER SWITCH
Making Power Computer much easier. Cubi 5 is designed to support external power switch.
Located computer in a hard to reach area , this is a convenient switch on the desk and hitting it rather than bend down to turn the computer on.
EASY TO UPGRADE
Only remove 4 screws at the bottom cover to gain access and replace the M.2 SSD, memory modules and 2.5” HDD/SSD storage slots. It’s just that simple.
QUIET, ENERGY-EFFICIENT DESIGN
MSI Cubi 5 has an excellent thermal design and low noise fan, resulting in a low noise level of only 23.6 dB of idle mode.
USB 3.2 GEN 1 TYPE-C WITH REVERSIBLE DESIGN
Get all the performance benefits from USB 3.2 Gen1 combined with the convenience of the USB Type-C connector. This reversible connector allows for effortless connecting of USB devices.
DO MORE WORK SIMULTANEOUSLY
Are you watching a lot of webpages and applications on a small monitor? With the HDMI and DP ports,MSI Cubi 5 can support dual monitors, you can do and view more.
The MSI Cubi 5 is a small and powerful mini-desktop. It is suited to serve as HTPC at home, all-around media PC at home, at the office or for any commercial project.
FREE FROM LIMITATIONS
Intel® Core™ i7 processor (Comet Lake), delivering computing capability which will keep you in the flow, wherever you go.
HAND PALM-SIZED PC
MSI Cubi 5 is the smallest mini PC in its kind. With a 0.66 liter case that still provides all the elements of a desktop-worthy PC.
MOUNTABLE TO A MONITOR
Cubi 5 is designed with a mini size and supports standard VESA-mount. Mount the Cubi 5 to the back of a monitor and make the PC completely invisible.
SUPPORT EXTERNAL POWER SWITCH
Making Power Computer much easier. Cubi 5 is designed to support external power switch.
Located computer in a hard to reach area , this is a convenient switch on the desk and hitting it rather than bend down to turn the computer on.
EASY TO UPGRADE
Only remove 4 screws at the bottom cover to gain access and replace the M.2 SSD, memory modules and 2.5” HDD/SSD storage slots. It’s just that simple.
QUIET, ENERGY-EFFICIENT DESIGN
MSI Cubi 5 has an excellent thermal design and low noise fan, resulting in a low noise level of only 23.6 dB of idle mode.
USB 3.2 GEN 1 TYPE-C WITH REVERSIBLE DESIGN
Get all the performance benefits from USB 3.2 Gen1 combined with the convenience of the USB Type-C connector. This reversible connector allows for effortless connecting of USB devices.
DO MORE WORK SIMULTANEOUSLY
Are you watching a lot of webpages and applications on a small monitor? With the HDMI and DP ports,MSI Cubi 5 can support dual monitors, you can do and view more.
Products specifications
| Weight & dimensions | |
| Width | 124 mm |
| Depth | 124 mm |
| Height | 53.7 mm |
| Weight | 550 g |
| Package weight | 1.4 kg |
| Logistics data | |
| Harmonized System (HS) code | 84715000 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 90% |
| Power | |
| Power supply | 65 W |
| Ports & interfaces | |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| DVI port | No |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| DC-in jack | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN controller model | Intel Dual Band Wireless-AC 9462 |
| Antenna type | 1x1 |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Design | |
| Chassis type | Mini PC |
| Placement supported | Horizontal |
| VESA mounting | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Performance | |
| Audio chip | Realtek ALC887 |
| Audio output channels | 2.1 channels |
| Product type | Mini PC |
| Display | |
| Display included | No |
| Packaging content | |
| VESA mount included | Yes |
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 10th gen Intel® Core™ i5 |
| Processor model | i5-10210U |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 4.2 GHz |
| Processor frequency | 1.6 GHz |
| Processor socket | BGA 1528 |
| Processor cache | 6 MB |
| Processor cache type | Smart Cache |
| System bus rate | 4 GT/s |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Comet Lake |
| Thermal Design Power (TDP) | 15 W |
| Configurable TDP-up frequency | 2.1 GHz |
| Configurable TDP-up | 25 W |
| Configurable TDP-down | 10 W |
| Configurable TDP-down frequency | 0.8 GHz |
| Tjunction | 100 °C |
| PCI Express slots version | 3.0 |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x4, 2x2, 1x2+2x1, 4x1 |
| Number of processors installed | 1 |
| Maximum internal memory supported by processor | 64 GB |
| Memory types supported by processor | DDR4-SDRAM, LPDDR3-SDRAM |
| Memory clock speeds supported by processor | 2666,2133 MHz |
| Memory bandwidth supported by processor (max) | 41.66 GB/s |
| Memory | |
| Internal memory | 8 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR4-SDRAM |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 2666 MHz |
| Storage | |
| Total storage capacity | 256 GB |
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| SSD interface | PCI Express |
| SSD form factor | M.2 |
| Card reader integrated | No |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel® UHD Graphics |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
| Maximum on-board graphics card memory | 32 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x9B41 |
| Number of execution units | 24 |
| Software | |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 10 Pro |
| Processor special features | |
| Intel 64 | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Embedded options available | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel Clear Video Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel TSX-NI | No |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Secure Key | Yes |
| Intel® OS Guard | Yes |
| Intel Trusted Execution Technology | No |
| Execute Disable Bit | Yes |
| Intel Flex Memory Access | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Processor package size | 46 x 24 mm |
| Supported instruction sets | SSE4.1, SSE4.2, AVX 2.0 |
| CPU configuration (max) | 1 |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 195436 |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
*
*
*
