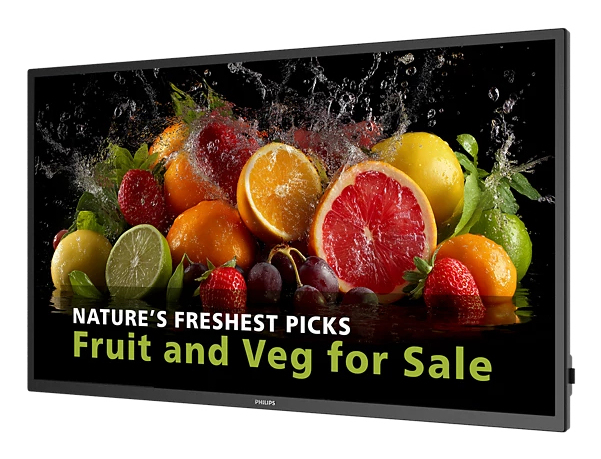

Philips Signage 5000 Series
Go beyond the ordinary. Captivate audiences and elevate their experience with the Philips Signage 5000. Powered by Android 14 for smooth integrations, this versatile 24/7 display steps up to deliver exceptional performance in any setting.
24/7 – working for your content around the clock.
With 500 cd/m2 brightness for better visibility under bright lights or even in sunlight, the Philips Signage 5000 Series is designed to be used 24/7, making it a great selection for travel and transportation hubs, retail centres, food and beverage locations, and more.
Install in portrait or landscape orientations.
Extend your display into the future with our modular approach. Bringing opportunities for longer product lifetime with easily detached and replaced components, plus a firm focus on sustainability, with reduced WEEE disposal.
Android 14 professional System on Chip.
Powered by Android 14, your Philips Signage 5050 display is designed on a professional platform with trusted connectivity and security built in. Optimised for native Android apps, it enables you to install web apps and software directly onto the display, eliminating the need for an external media player.
Integrated HTML5 Chromium-based browser.
Connect and control your content via the cloud with our integrated HTML5, Chromium-based browser. Design your content online and connect a single display, or your entire network, either landscape or portrait. Simply connect to the Internet via an RJ45 cable.
Philips Wave ready for remote device management.
Unlock the power, versatility and intelligence inside your Philips Signage 5000 displays remotely with Wave. This evolutionary cloud platform puts you fully in control, with simplified installation and setup, monitoring and controlling displays, upgrading firmware, managing playlists and setting power schedules, saving you time, energy and environmental impact.
Go beyond the ordinary. Captivate audiences and elevate their experience with the Philips Signage 5000. Powered by Android 14 for smooth integrations, this versatile 24/7 display steps up to deliver exceptional performance in any setting.
24/7 – working for your content around the clock.
With 500 cd/m2 brightness for better visibility under bright lights or even in sunlight, the Philips Signage 5000 Series is designed to be used 24/7, making it a great selection for travel and transportation hubs, retail centres, food and beverage locations, and more.
Install in portrait or landscape orientations.
Extend your display into the future with our modular approach. Bringing opportunities for longer product lifetime with easily detached and replaced components, plus a firm focus on sustainability, with reduced WEEE disposal.
Android 14 professional System on Chip.
Powered by Android 14, your Philips Signage 5050 display is designed on a professional platform with trusted connectivity and security built in. Optimised for native Android apps, it enables you to install web apps and software directly onto the display, eliminating the need for an external media player.
Integrated HTML5 Chromium-based browser.
Connect and control your content via the cloud with our integrated HTML5, Chromium-based browser. Design your content online and connect a single display, or your entire network, either landscape or portrait. Simply connect to the Internet via an RJ45 cable.
Philips Wave ready for remote device management.
Unlock the power, versatility and intelligence inside your Philips Signage 5000 displays remotely with Wave. This evolutionary cloud platform puts you fully in control, with simplified installation and setup, monitoring and controlling displays, upgrading firmware, managing playlists and setting power schedules, saving you time, energy and environmental impact.
Products specifications
| Weight & dimensions | |
| Display width | 726.5 mm |
| Display depth | 65.1 mm |
| Display height | 245.4 mm |
| Display weight | 5.7 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Power | |
| Power consumption (typical) | 33 W |
| Energy efficiency class (SDR) | F |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Technical details | |
| Compliance certificates | CB, CE, RoHS |
| Ports & interfaces | |
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| USB port | Yes |
| USB ports quantity | 1 |
| USB version | 2.0/3.2 Gen 2 (3.1 Gen 2) |
| USB connector type | Micro-USB B, USB Type-C |
| Ethernet LAN (RJ-45) ports | 1 |
| Number of antenna connectors | 1 |
| RS-232 interface | Yes |
| RS-232C | Yes |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Design | |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100,200 x 200 mm |
| Bezel width (bottom) | 1.72 cm |
| Bezel width (side) | 1.19 cm |
| Bezel width (top) | 1.19 cm |
| Performance | |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 18 |
| On Screen Display (OSD) languages | Arabic, Simplified Chinese, Traditional Chinese, Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Norwegian, Polish, Portuguese, Russian, Swedish, Turkish |
| Mean time between failures (MTBF) | 50000 h |
| Display | |
| Panel type | ADS |
| Display diagonal | 81.3 cm (32") |
| Display technology | LCD |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 500 cd/m² |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Contrast ratio (dynamic) | 500000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.36375 x 0.36375 mm |
| Display diagonal (metric) | 80.01 cm |
| Haze rate | 25% |
| Packaging content | |
| Cables included | AC, IR sensor, RS-232 |
| Audio | |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
| Computer system | |
| Computer system | Yes |
| Computer system type | System on Chip (SoC) |
| Built-in processor | Yes |
| Processor manufacturer | ARM |
| Processor model | A53 |
| Processor cores | 8 |
| Internal memory | 4 GB |
| On-board graphics card model | Mali-G52 MC3 |
| Internal storage capacity | 32 GB |
| Operating system installed | Android |
| Operating system version | 14 |
| Video formats supported | AVI, H.263, H.264, H.265, MP4, MPEG, MPEG4, VP8, WEBM |
| Audio formats supported | AAC, HEAAC / MPEG |
| Image formats supported | BMP, JPEG, PNG |
*
*
*
