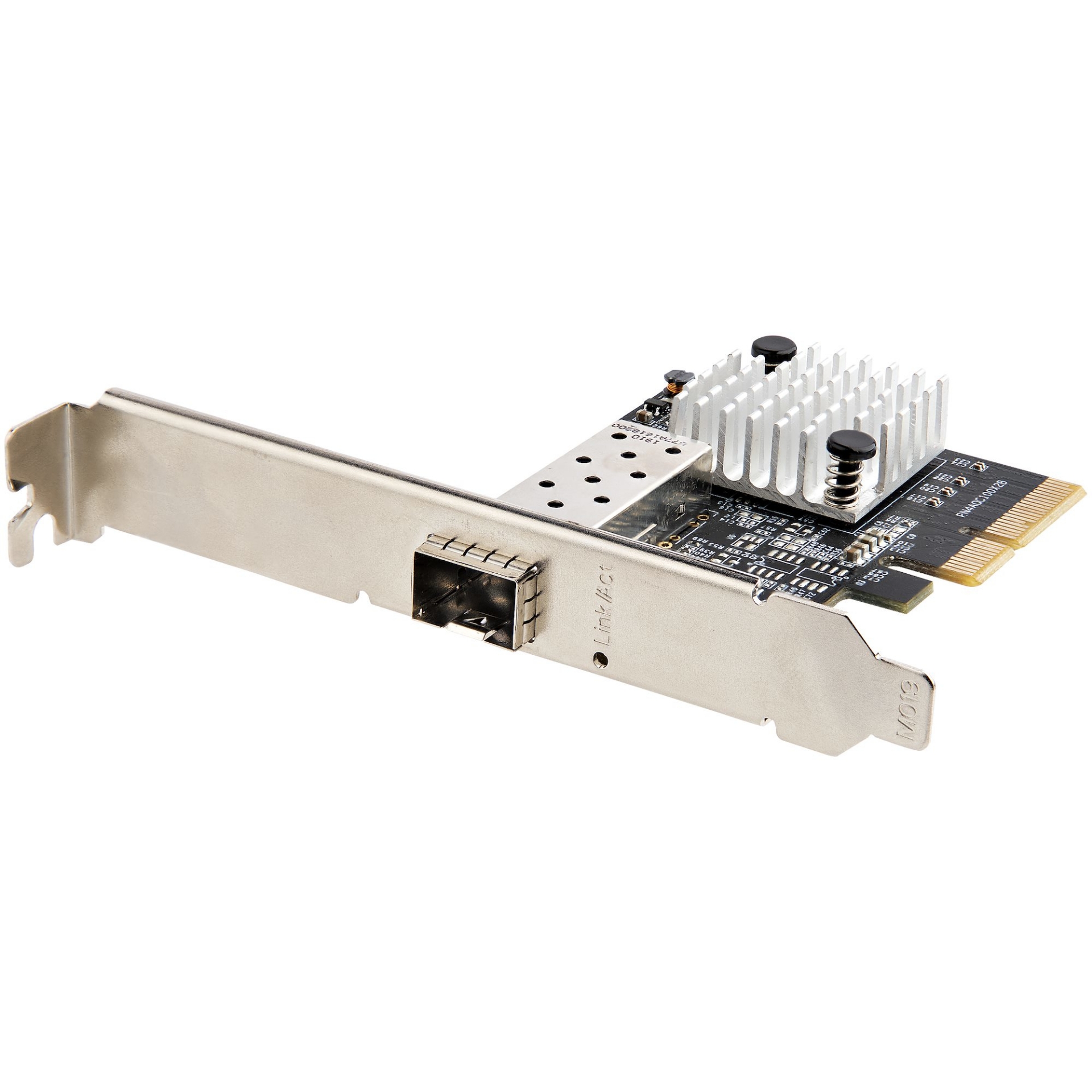

PCI Express SFP+ Card | 10 Gbps | Open SFP+ Slot | Fiber, Copper & DAC | PCIe 3.0 x4
Increase your network speed
This PCIe network card lets you take advantage of improved bandwidth in data-intensive applications such as multimedia streaming and large file transfers. This fiber NIC offers data transfer rates of up to 10Gbps which improve speeds and reduces load times.
Scalable network connection
Featuring an open SFP+ slot, you have the flexibility to make changes as needed just by swapping the module in use, whether it is fiber, copper, or direct attach cables (DAC). The card complies with MSA, allowing use with modules from StarTech.com or 3rd parties that support MSA.
Enhance your existing hardware
The 10Gb network card easily connects via an available x4 PCI Express 3.0 expansion slot. The card is shipped with a standard-profile bracket and includes a low-profile bracket for installation in various types of computer chassis. It supports a wide variety of OSes including Windows and Linux.
The PEX10GSFP is backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
Products specifications
| Width | 18 mm |
| Depth | 94 mm |
| Height | 121 mm |
| Weight | 55 g |
| Flow control support | Yes |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 310 mm |
| Master (outer) case length | 355 mm |
| Master (outer) case height | 235 mm |
| Products per master (outer) case | 20 pc(s) |
| Package width | 210 mm |
| Package depth | 145 mm |
| Package height | 35 mm |
| Package weight | 145 g |
| Operating temperature (T-T) | 5 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Compliance certificates | CE, RoHS |
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Fiber |
| Fiber optic connector | SFP+ |
| PCI version | 3.0 |
| Maximum data transfer rate | 20000 Mbit/s |
| Networking standards | IEEE 802.1Q, IEEE 802.3ad, IEEE 802.3x |
| Full duplex | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| VLAN tagging | Yes |
| Fiber mode structure | Multi-mode, Single-mode |
| Component for | PC |
| Product colour | Black |
| Internal | Yes |
| Chipset | Aquantia AQC100S |
| Mounting brackets included | Yes |
| Quick installation guide | Yes |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
