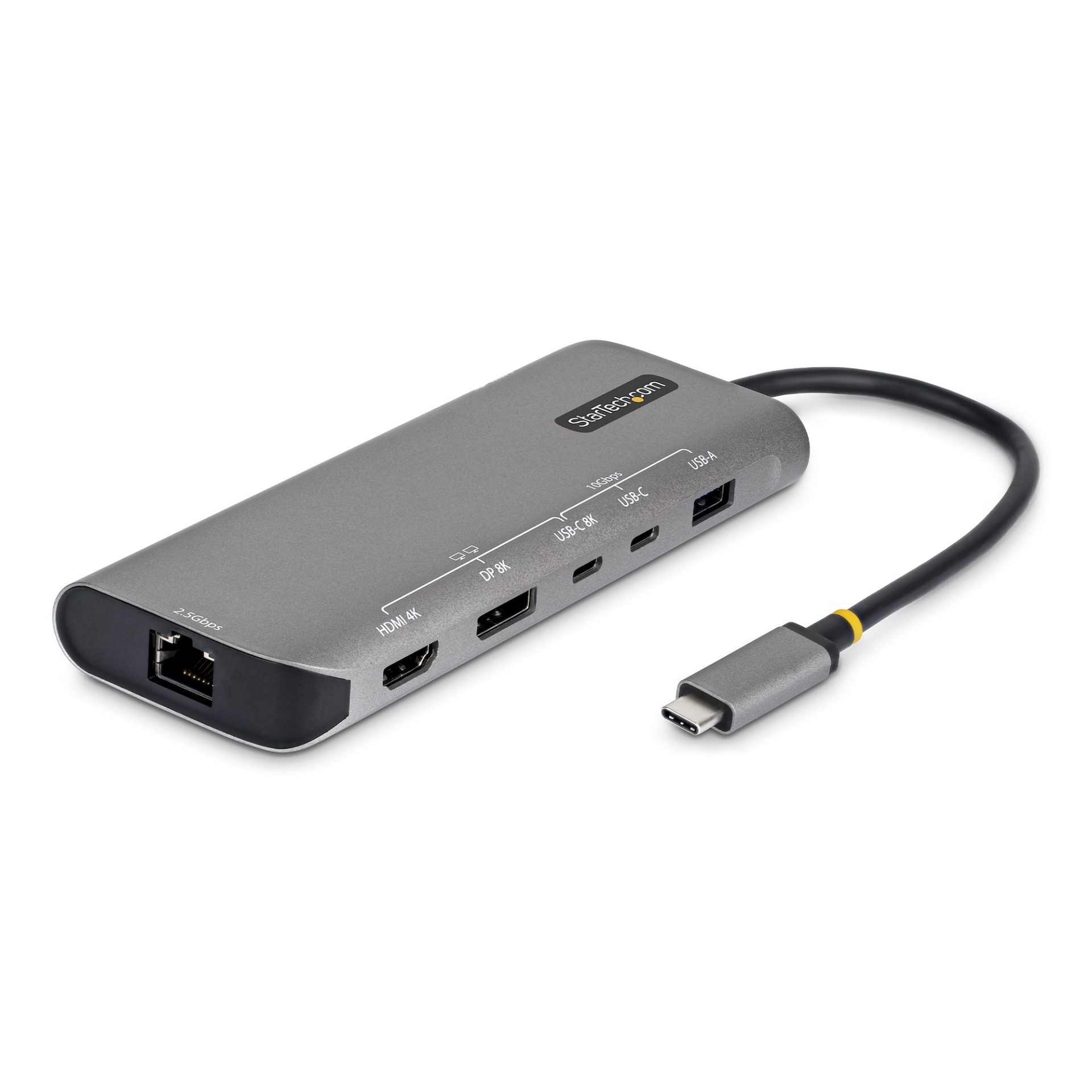

Driverless Dual 4K on Mac without the Thunderbolt 4 cost
Run dual 4K displays and high-speed peripherals from a single USB4 connection, simplifying mixed-device deployments for IT teams.
Drive Dual 4K Workspaces Without Complexity
Use USB4 bandwidth and native video output to support up to two 4K 144Hz displays via HDMI, DisplayPort, or USB-C. Standardize dual-monitor desk setups across Windows and macOS without extra drivers or software. Ideal for hot desks or workstations needing consistent multi-monitor performance.
Power Demanding Devices and AI Workloads
Deliver up to 140W USB-C Power Delivery passthrough to keep high-performance laptops and AI-ready systems fully powered. Maintain host port availability while users run intensive tasks reducing downtime and increasing productivity.
Expand Devices and Accelerate Network Throughput
Add USB-C and USB-A 10Gbps ports for modern and legacy peripherals, with a flexible data or video USB-C port. Connect to 2.5GbE for faster file transfers across shared storage or cloud environments helping teams move large assets quickly and stay productive.
Run dual 4K displays and high-speed peripherals from a single USB4 connection, simplifying mixed-device deployments for IT teams.
Drive Dual 4K Workspaces Without Complexity
Use USB4 bandwidth and native video output to support up to two 4K 144Hz displays via HDMI, DisplayPort, or USB-C. Standardize dual-monitor desk setups across Windows and macOS without extra drivers or software. Ideal for hot desks or workstations needing consistent multi-monitor performance.
Power Demanding Devices and AI Workloads
Deliver up to 140W USB-C Power Delivery passthrough to keep high-performance laptops and AI-ready systems fully powered. Maintain host port availability while users run intensive tasks reducing downtime and increasing productivity.
Expand Devices and Accelerate Network Throughput
Add USB-C and USB-A 10Gbps ports for modern and legacy peripherals, with a flexible data or video USB-C port. Connect to 2.5GbE for faster file transfers across shared storage or cloud environments helping teams move large assets quickly and stay productive.
Products specifications
| Weight & dimensions | |
| Width | 55 mm |
| Depth | 141 mm |
| Height | 17 mm |
| Weight | 200 g |
| Other features | |
| Chipset | Realtek - RTS5453H, Realtek - RTS5452H, Realtek - RTS5252E, Realtek - RTL8156BG, Monolithic - MP4247, VIA - VL600, VIA - VL822, VIA - VL162, Terminus - FE8.1, Intel - JHL8140 |
| Logistics data | |
| Products per master (outer) case | 70 pc(s) |
| Master (outer) case width | 473 mm |
| Master (outer) case length | 331 mm |
| Master (outer) case height | 440 mm |
| Packaging data | |
| Package width | 200 mm |
| Package depth | 120 mm |
| Package height | 30 mm |
| Package weight | 175 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Power | |
| Power source type | USB |
| Output voltage | 5 V |
| Power consumption (max) | 30 W |
| USB cable length | 0.2 m |
| Technical details | |
| Compliance certificates | RoHS, Federal Communications Commission (FCC) |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Host interface | USB4 |
| USB 2.0 Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.2 |
| USB Power Delivery up to | 140 W |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Microphone in | No |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Wake-on-LAN ready | Yes |
| Full duplex | Yes |
| Performance | |
| Card reader integrated | No |
| Data transfer rate | 40 Gbit/s |
| HD type | 8K Ultra HD |
| Maximum digital resolution | 7680 x 4320 pixels |
| Maximum refresh rate | 240 Hz |
| Product colour | Grey |
| UASP support | Yes |
| Housing material | Aluminium |
| Mean time between failures (MTBF) | 40669 h |
| Packaging content | |
| User guide | Yes |
| Software | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Mac operating systems supported | Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia, Mac OS 26 Tahoe |
| Linux operating systems supported | Ubuntu 24.04 LTS |
| Other operating systems supported | ChromeOS |
*
*
*
