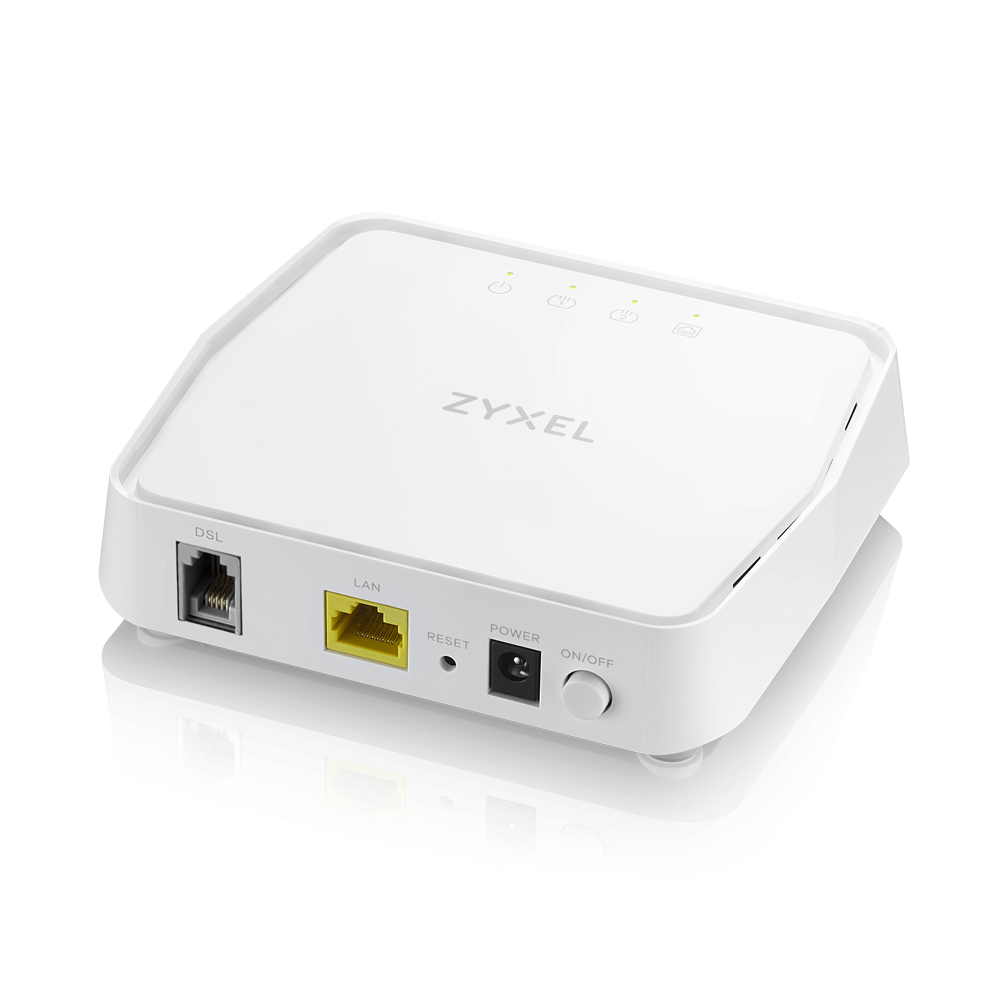

The Zyxel VMG4005-B Series is a VDSL2 17a Bonding and 35b Single Line Bridge is a VDSL bonding bridge which provides excellent premium-class line speeds of up to 200Mbps with 17a bonding or 300Mbps with 35b single line for broadband services to extend the coverage and performance for enhanced user experience.
For ISP/Telco needs, the VMG4005-B Series supports rate and line status monitoring and management while users can enjoy not only high-speed VDSL services, but also broadband multimedia applications such as interactive gaming, video streaming and real-time audio much easier than ever.
Bonded VDSL2 with Vector
The Zyxel VMG4005-B Series VDSL2 17a Bonding and 35b Single Line Bridge supports VDSL2 bonding with vectoring of up to profile 17a and 35b. Vectoring supports reduce cross-talk for up to 150% for improved performance and range for operators.
Comprehensive Routing with IPv6, QoS and Firewall
Zyxel offers excellent routing capabilities designed to meet service provider needs. The Zyxel VMG4005-B Series VDSL2 17a Bonding and 35b Single Line Bridge continues this legacy with full IPv4 support, IPv6/IPv4 Dual Stack and IPv6 Rapid Deployment (RD) for a strong foundation to implement advanced features including quality of service (QoS) functionality to categorize incoming and outgoing traffics in addition to a stateful packet inspection (SPI) firewall for end-user security.
TR-069 remote management
With TR-069 standard management specifications, the service providers are able to manage, configure and diagnose the client devices remotely without manual intervention of end-users. This unique feature not only offers a true “plug-and-play” experience, but also reduces the complexity of deployment and therefore saves operation and maintenance costs for service providers.
For ISP/Telco needs, the VMG4005-B Series supports rate and line status monitoring and management while users can enjoy not only high-speed VDSL services, but also broadband multimedia applications such as interactive gaming, video streaming and real-time audio much easier than ever.
Bonded VDSL2 with Vector
The Zyxel VMG4005-B Series VDSL2 17a Bonding and 35b Single Line Bridge supports VDSL2 bonding with vectoring of up to profile 17a and 35b. Vectoring supports reduce cross-talk for up to 150% for improved performance and range for operators.
Comprehensive Routing with IPv6, QoS and Firewall
Zyxel offers excellent routing capabilities designed to meet service provider needs. The Zyxel VMG4005-B Series VDSL2 17a Bonding and 35b Single Line Bridge continues this legacy with full IPv4 support, IPv6/IPv4 Dual Stack and IPv6 Rapid Deployment (RD) for a strong foundation to implement advanced features including quality of service (QoS) functionality to categorize incoming and outgoing traffics in addition to a stateful packet inspection (SPI) firewall for end-user security.
TR-069 remote management
With TR-069 standard management specifications, the service providers are able to manage, configure and diagnose the client devices remotely without manual intervention of end-users. This unique feature not only offers a true “plug-and-play” experience, but also reduces the complexity of deployment and therefore saves operation and maintenance costs for service providers.
Products specifications
| Weight & dimensions | |
| Width | 130 mm |
| Depth | 120 mm |
| Height | 32 mm |
| Weight | 173 g |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Packaging data | |
| Package width | 245 mm |
| Package depth | 142 mm |
| Package height | 42 mm |
| Package weight | 380 g |
| Package type | Box |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
| Power | |
| Input current | 1 A |
| Management features | |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| Firmware upgradeable | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| RJ-11 ports quantity | 1 |
| DC-in jack | Yes |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q |
| Ethernet interface type | Gigabit Ethernet |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| VLAN support | Yes |
| Traffic control | Yes |
| Design | |
| Product colour | White |
| LED indicators | LAN, Power |
| On/off switch | Yes |
| Packaging content | |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Security | |
| Firewall | Yes |
| MAC address filtering | Yes |
| DoS attack prevention | Yes |
| System event log | Yes |
| Protocols | |
| Management protocols | Web/HTTP |
| DHCP client | Yes |
| DHCP server | Yes |
| WAN connection | |
| Ethernet WAN | No |
| DSL WAN | Yes |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| DSL features | |
| Internal modem | Yes |
| VDSL | Yes |
| VDSL2 | Yes |
| Downstream data rate | 300 Mbit/s |
*
*
*
Products specifications
| Weight & dimensions | |
| Width | 130 mm |
| Depth | 120 mm |
| Height | 32 mm |
| Weight | 173 g |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Packaging data | |
| Package width | 245 mm |
| Package depth | 142 mm |
| Package height | 42 mm |
| Package weight | 380 g |
| Package type | Box |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
| Power | |
| Input current | 1 A |
| Management features | |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| Firmware upgradeable | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| RJ-11 ports quantity | 1 |
| DC-in jack | Yes |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q |
| Ethernet interface type | Gigabit Ethernet |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| VLAN support | Yes |
| Traffic control | Yes |
| Design | |
| Product colour | White |
| LED indicators | LAN, Power |
| On/off switch | Yes |
| Packaging content | |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Security | |
| Firewall | Yes |
| MAC address filtering | Yes |
| DoS attack prevention | Yes |
| System event log | Yes |
| Protocols | |
| Management protocols | Web/HTTP |
| DHCP client | Yes |
| DHCP server | Yes |
| WAN connection | |
| Ethernet WAN | No |
| DSL WAN | Yes |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| DSL features | |
| Internal modem | Yes |
| VDSL | Yes |
| VDSL2 | Yes |
| Downstream data rate | 300 Mbit/s |
