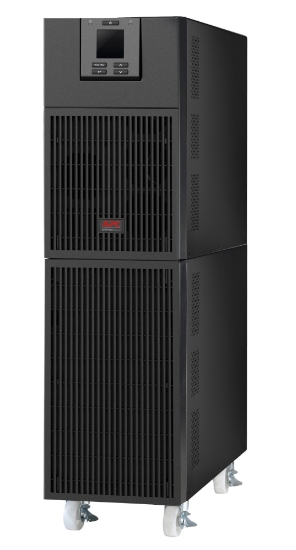

APC Easy UPS SRV 6000VA 230V
Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS power overload or fault.
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
EPO
Attach the device to an Emergency Power Off (EPO) system so that power can be turned off in an emergency situation.
Input power factor correction
Minimizes installation costs by enabling the use of smaller generators and cabling.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
LCD graphics display
Text and mimic diagrams that display modes of operation, system parameters and alarms.
Serial connectivity
Provides management of the UPS via a serial port.
USB connectivity
Provides management of the UPS via a USB port (not available on all models).
Products specifications
| UPS topology | Double-conversion (Online) |
| Output power capacity | 6 kVA |
| Output power | 6000 W |
| Input operation voltage (min) | 110 V |
| Input operation voltage (max) | 300 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 600 J |
| Efficiency | 94% |
| Crest factor | 3:1 |
| Emergency Power Off (EPO) | Yes |
| Socket circuit breaker | Yes |
| Width | 190 mm |
| Depth | 374 mm |
| Height | 685 mm |
| Weight | 5.4 kg |
| Harmonized System (HS) code | 85078000 |
| Warranty card | Yes |
| Software CD | Yes |
| Package width | 291 mm |
| Package depth | 495 mm |
| Package height | 910 mm |
| Package weight | 66 kg |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| RS-232 ports | 1 |
| Form factor | Tower |
| Product colour | Black |
| Display type | LCD |
| Cables included | Input power cable, Output power cable, RS-232, USB cable |
| Manual | Yes |
| Battery capacity | 7 Ah |
| Battery capacity | 192 VAh |
| Battery voltage | 12 V |
