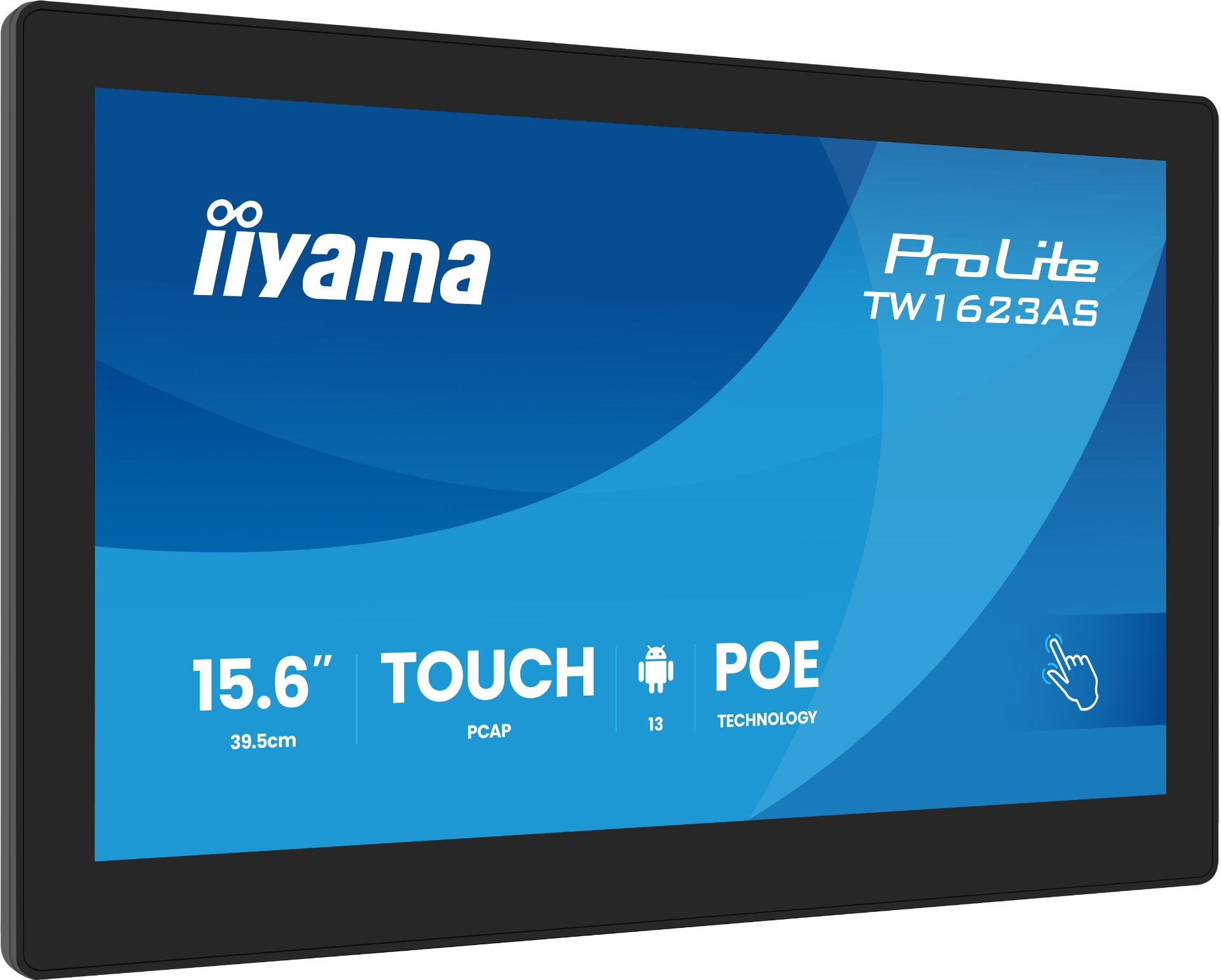

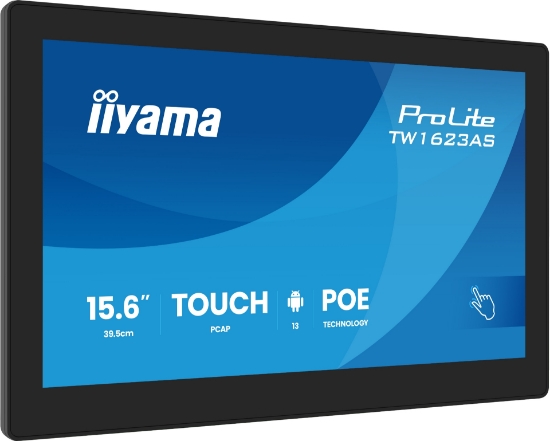

Picture of iiyama 15.6” PCAP 10pt touchscreen PC with Android, PoE Technology and iiSignage²

iiyama 15.6” PCAP 10pt touchscreen PC with Android, PoE Technology and iiSignage²

Name: iiyama 15.6” PCAP 10pt touchscreen PC with Android, PoE Technology and iiSignage²
SKU: TW1623AS-B3P
Price: 395.83 EUR
Availability: InStock

iiyama 15.6” PCAP 10pt touchscreen PC with Android, PoE Technology and iiSignage². Product design: Interactive flat panel. Display diagonal: 39.6 cm (15.6"), Display technology: LED, Display resolution: 1920 x 1080 pixels, Display brightness: 450 cd/m², HD type: Full HD, Touchscreen. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android. Product colour: Black

Manufacturer: Iiyama

SKU: TW1623AS-B3P

Vendor: Aspects

The ProLite TW1623AS-B3P is a smart and intuitive 15.6" touch panel PC, designed for high-traffic environments such as meeting rooms, info points, or hospitality spaces. Its 10-point PCAP touch technology ensures smooth and precise interaction. Powered by Android 13, and equipped with powerful hardware, it allows easy installation of apps directly on the device - making it a all-in-one solution. Thanks to Power over Ethernet (PoE), both power and data are delivered through a single cable, simplifying installation and reducing additional cables. With a built-in microphone and speakers, the TW1623AS-B3P delivers seamless, modern interaction in any smart space. Additionally, it integrates effortlessly with iiSignage² , iiyama’s Content Management System (CMS), giving you full control over your messages and advertising, in landscape portrait and face-up position.

✔ Legal warranty via the seller
✔ 30 days to change your mind — free returns
✔ Free delivery from €25

€395.83 incl tax

increase decrease

Overview
Specifications
Contact Us

Products specifications

Weight & dimensions
Display width	387 mm
Display depth	30.5 mm
Display height	244 mm
Display weight	1.5 kg
Width (with stand)	387 mm
Depth (with stand)	30.5 mm
Height (with stand)	244 mm
Weight (with stand)	1.5 kg
Other features
Quick start guide	Yes
Audio input	Mini Jack
Bluetooth	Yes
Bluetooth version	5.2
Viewable size, horizontal	34.4 cm
Viewable size, vertical	19.4 cm
Power supply type	External
Cable management	Yes
Packaging data
Package width	477 mm
Package depth	477 mm
Package height	298 mm
Package weight	2.45 kg
Power
Power consumption (typical)	9 W
Power consumption (standby)	0.5 W
Power consumption (off)	0.3 W
Certificates
Certification	CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA
Ports & interfaces
HDMI ports quantity	1
Mini HDMI ports quantity	1
USB port	Yes
USB ports quantity	3
USB version	2.0
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Microphone in	Yes
Card reader integrated	Yes
Compatible memory cards	SD
Design
Product design	Interactive flat panel
Placement supported	Indoor
Orientation	Horizontal/Vertical
Product colour	Black
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Fingerprint resistant	Yes
Performance
Purpose	Commercial
On Screen Display (OSD)	Yes
Operating hours (hours/days)	24/7
HDCP	Yes
Display
Panel type	IPS
Display diagonal	39.6 cm (15.6")
Display technology	LED
Display resolution	1920 x 1080 pixels
Display brightness	450 cd/m²
HD type	Full HD
Touchscreen	Yes
Touchscreen technology	Projected capacitive system
Number of simultaneous touchpoints	10
Multi-touch	Yes
Native aspect ratio	16:9
Response time	30 ms
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	170°
Viewing angle, vertical	170°
Display number of colours	16.7 million colours
Pixel pitch	0.1792 x 0.1792 mm
Active display area (W x H)	344.2 x 193.6 mm
Display diagonal (metric)	39.5 cm
Colour depth	8 bit
Surface hardness	6H
Glass thickness	1.8 mm
Packaging content
Power adapter included	Yes
Audio
Built-in speaker(s)	Yes
Number of built-in speakers	2
RMS rated power	4 W
Computer system
Computer system	Yes
Built-in processor	Yes
Processor manufacturer	Rockchip
Processor family	ARM Rockchip
Processor model	RK3568
Processor architecture	ARM Cortex-A55
Processor frequency	2 GHz
Processor cores	4
Internal memory	4 GB
Internal storage capacity	32 GB
Operating system installed	Android
Operating system version	13
