4G and 3 LAN Ports, Hassle-free Deployment

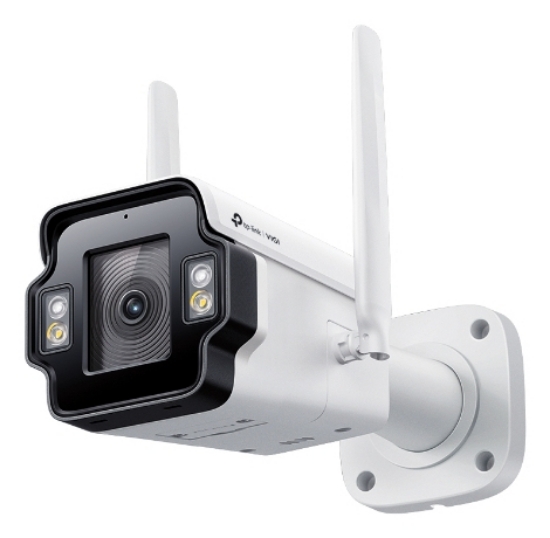

4MP Outdoor Full-Color 4G Bullet Network Camera
3 LAN Ports Meet Minimal Deployment Effort
InSight S345-4G offers industry-first three LAN ports, enabling simultaneous connectivity for up to three devices as you need. It is ideal for coupling with solar power systems to eliminate additional wiring deployments.
Human & Vehicle Classification
Distinguish humans and vehicles from other objects and receive more accurate event notifications.
LightPro Night Vision Technology
The VIGI LightPro Night Vision Technology intelligently switches between IR night vision and full-color night vision by detecting people or vehicles. This allows the camera to capture clearer and more critical details with the white light on, and to reduce light pollution and energy consumption with the IR light on at most time, effectively adapting to a broader range of scenarios.
Smart Video Enhancement Technology
True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.△
Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.
Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.
4MP Outdoor Full-Color 4G Bullet Network Camera
3 LAN Ports Meet Minimal Deployment Effort
InSight S345-4G offers industry-first three LAN ports, enabling simultaneous connectivity for up to three devices as you need. It is ideal for coupling with solar power systems to eliminate additional wiring deployments.
Human & Vehicle Classification
Distinguish humans and vehicles from other objects and receive more accurate event notifications.
LightPro Night Vision Technology
The VIGI LightPro Night Vision Technology intelligently switches between IR night vision and full-color night vision by detecting people or vehicles. This allows the camera to capture clearer and more critical details with the white light on, and to reduce light pollution and energy consumption with the IR light on at most time, effectively adapting to a broader range of scenarios.
Smart Video Enhancement Technology
True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.△
Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.
Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.
Products specifications
| Weight & dimensions | |
| Width | 122 mm |
| Height | 101 mm |
| Length | 256 mm |
| Weight | 1.09 kg |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Power | |
| Power source type | DC |
| Power consumption (max) | 9.7 W |
| Power consumption (Power over Ethernet (PoE)) | 10.7 W |
| DC output voltage | 12 |
| Management features | |
| Web-based management | Yes |
| Web browser | Yes |
| Cloud-managed | Yes |
| Reset button | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 3 |
| DC-in jack | Yes |
| Network | |
| Ethernet LAN | Yes |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| Wi-Fi | No |
| Bluetooth | No |
| SIM card slot | Yes |
| SIM card type | NanoSIM |
| Mobile network generation | 4G |
| 4G standard | LTE-TDD & LTE-FDD |
| Live view | Yes |
| Design | |
| Form factor | Bullet |
| Mounting type | Wall |
| Product colour | White |
| Housing material | Metal |
| Protection features | Waterproof |
| International Protection (IP) code | IP66 |
| Weatherproof | Yes |
| Performance | |
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| Maximum operating distance | 80 m |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Remote viewing | Yes |
| Antenna type | External |
| Antennas quantity | 2 |
| Dynamic range | 120 dB |
| Packaging content | |
| Number of cameras | 1 |
| Mounting kit | Yes |
| Screws included | Yes |
| Drilling template included | Yes |
| Manual | Yes |
| Security | |
| Built-in siren | Yes |
| Password protection | Yes |
| Video motion detection | Yes |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Detection distance | 120 m |
| Alert notification type | Push notification |
| Motion sensor | Yes |
| Mirror | Yes |
| Human and vehicle targets classification | Yes |
| Digest authentication | Yes |
| Audio | |
| Built-in speaker(s) | Yes |
| Audio system | 2-way |
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Audio formats supported | G.711 A-law |
| Sample rate | 8 kHz |
| Built-in microphone | Yes |
| Number of microphones | 1 |
| Bit rate range | 0 - 64 Kbit/s |
| Storage | |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 512 GB |
| Camera | |
| Minimum illumination | 0 lx |
| Lens viewing angle, horizontal | 80.4° |
| Lens viewing angle, vertical | 41.8° |
| Lens viewing angle, diagonal | 98.7° |
| Tilt angle range | 0 - 90° |
| Camera shutter speed | 1/3 to 1/10000 |
| Lens system | |
| Detect distance | 80 m |
| Observe distance | 33 m |
| Recognize distance | 16 m |
| Fixed focus | Yes |
| Maximum aperture number | 1.6 |
| Identify distance | 8 m |
| Fixed focal length | 4 mm |
| Video | |
| Maximum resolution | 2688 x 1520 pixels |
| Total megapixels | 4 MP |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440, 2688 x 1520 |
| Video recording | Yes |
| Image quality adjustment | Brightness, Contrast, Mirror, Saturation, Sharpness |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bit rate | Main Stream: 256 Kbps to 6 Mbps, Sub-Stream: 64 Kbps to 512 Kbps |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Image sensor | |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Night vision | |
| Night vision | Yes |
| LED type | IR/White |
*
*
*
