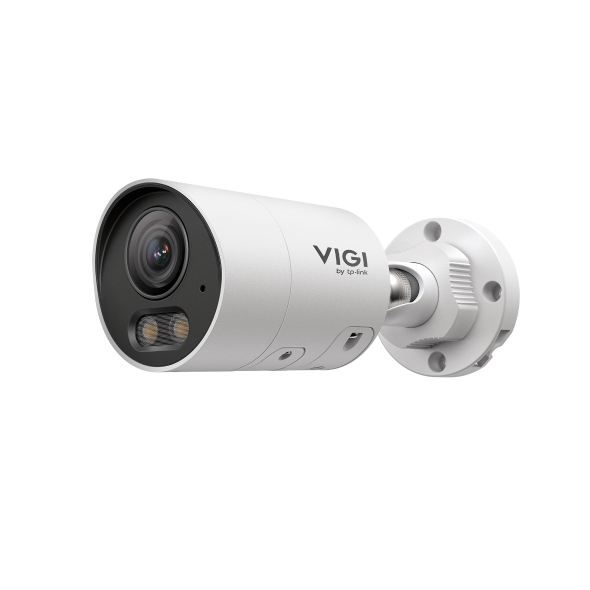

TP-Link InSight S345S Bullet IP security camera Outdoor 2688 x 1520 pixels Ceiling/Wall/Pole

TP-Link InSight S345S. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, Form factor: Bullet. Minimum illumination: 0.0005 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 95°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.79 mm (1 / 1.79"). Detect distance: 76 m, Observe distance: 29 m, Recognize distance: 14 m
Manufacturer: TP-Link
SKU: INSIGHT S345S(4MM)
Vendor: Aspects
See True Colors and Details in the Dark
Unveiling every detail in the dark, experiencing clarity and color as vivid as daylight — no extra fill lights needed.

Worry-Free Night Surveillance: Beyond IR & Full-Color
Eliminates general night vision issues like dark corners, glare, and color loss — enjoy worry-free nighttime monitoring.

See Vividly — Even No Extra Fill Lights Needed
Enables full-color imaging in low-light conditions without fill-in lighting, reducing both energy consumption and insect-triggered false alarms for a more eco-friendly solution.

People or Vehicle Triggered Intelligent IR-White Lights Reveal More in Total Darkness
In complete darkness with zero illumination, VIGI’s intelligent infrared-white lights will automatically activate white lights upon detecting people or vehicles, delivering vivid color imaging while deterring intruders.

VIGI AI Detection Technology
People & Vehicle Analytics: Search and filter to people or vehicle of interest based on many different attributes, like hair length, upper body color, vehicle type, making post-event search faster and easier.

Human & Vehicle Classification: Distinguish humans and vehicles from other objects, such as moving animals, falling leaves, changing lights, and receive more accurate event notifications.

Smart Video Enhancement Technology
True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.

Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.

3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.

White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.

Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.
  • Legal warranty via the seller
  • 30 days to change your mind — free returns
  • Free delivery from €25
€501.43 incl tax
Lowest price in the last 30 days: $501.43
increase decrease
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
See True Colors and Details in the Dark
Unveiling every detail in the dark, experiencing clarity and color as vivid as daylight — no extra fill lights needed.

Worry-Free Night Surveillance: Beyond IR & Full-Color
Eliminates general night vision issues like dark corners, glare, and color loss — enjoy worry-free nighttime monitoring.

See Vividly — Even No Extra Fill Lights Needed
Enables full-color imaging in low-light conditions without fill-in lighting, reducing both energy consumption and insect-triggered false alarms for a more eco-friendly solution.

People or Vehicle Triggered Intelligent IR-White Lights Reveal More in Total Darkness
In complete darkness with zero illumination, VIGI’s intelligent infrared-white lights will automatically activate white lights upon detecting people or vehicles, delivering vivid color imaging while deterring intruders.

VIGI AI Detection Technology
People & Vehicle Analytics: Search and filter to people or vehicle of interest based on many different attributes, like hair length, upper body color, vehicle type, making post-event search faster and easier.

Human & Vehicle Classification: Distinguish humans and vehicles from other objects, such as moving animals, falling leaves, changing lights, and receive more accurate event notifications.

Smart Video Enhancement Technology
True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.

Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.

3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.

White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.

Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.
Products specifications
Weight & dimensions
Diameter6.6 cm
Length191 mm
Weight600 g
Operational conditions
Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Power
Power source typeDC, PoE
DC output voltage12
Management features
Web browserYes
Cloud-managedYes
Ports & interfaces
Ethernet LAN (RJ-45) ports1
Network
Ethernet LANYes
Ethernet interface typeFast Ethernet
Supported network protocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP, RTMP
Wi-FiNo
BluetoothNo
Design
Form factorBullet
Mounting typeCeiling/Wall/Pole
Product colourWhite
Housing materialMetal
International Protection (IP) codeIP67
Performance
TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Infrared (IR) cut-off filterYes
Alarm input/outputYes
Dynamic range120 dB
Packaging content
Number of cameras1
Mounting kitYes
ManualYes
Sustainability
Compliance certificatesBSMI, CE, Federal Communications Commission (FCC), Industry Canada (IC), KC, VCCI
Security
Alarm input channels1
Alarm output channels1
Password protectionYes
Video motion detectionYes
Active tampering alarmYes
IP address filteringYes
HTTPS encryptionYes
Intelligent Video Surveillance (IVS) system featuresAbandoned object, Abnormal sound detection, Human detection, Intrusion, Line crossing detection, Region entrance detection, Region exiting detection, Scene change, Vehicle detection
Digest authenticationYes
Audio
Built-in speaker(s)Yes
Audio system2-way
Signal-to-Noise Ratio (SNR)52 dB
Built-in microphoneYes
Storage
Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size512 GB
Camera
Minimum illumination0.0005 lx
Angle of rotation360°
Lens viewing angle, horizontal95°
Lens viewing angle, vertical51°
Lens viewing angle, diagonal115°
Tilt angle range0 - 75°
Pan range0 - 360°
Camera shutter speed1/3 - 1/10000 s
Lens system
Number of lenses1
Detect distance76 m
Observe distance29 m
Recognize distance14 m
Maximum aperture number1
Identify distance7 m
Fixed focal length4 mm
Video
Maximum resolution2688 x 1520 pixels
Total megapixels4 MP
Video compression formatsH.264, H.264+, H.265, H.265+
Supported graphics resolutions320 x 240, 352 x 288, 640 x 360, 640 x 480 (VGA), 704 x 576, 848 x 480, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440, 2688 x 1520
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rateMain Stream: 256 Kbps - 6 Mbps; Sub-Stream: 64 Kbps - 1024 Kbps
Back Light Compensation (BLC)Yes
Highlight Compensation (HLC)Yes
Region of Interest (ROI) encodingYes
Smart IRYes
Image sensor
Optical sensor size25.4 / 1.79 mm (1 / 1.79")
Progressive scanYes
Sensor typeCMOS
Night vision
Night visionYes
Night vision distance30 m
LED typeIR/White
Number of illumination LEDs2
Infra-red wavelength850 nm
*
*
*
