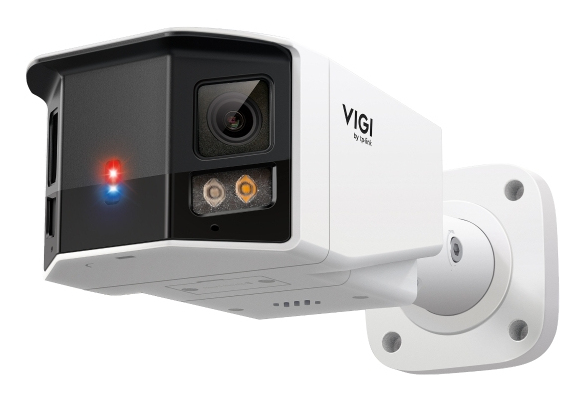

See the big picture, capture every detail. This 4K (8MP) dual‑lens stitched panoramic camera combines ultra‑low‑light ColorPro night vision, advanced analytics, and active audio‑visual deterrence to deliver broader coverage, clearer evidence, and smarter alerts for critical broader indoor and outdoor areas, like parking lots, public squares, and industrial perimeters.
Panoramic Coverage, Richer Details
Dual‑lens stitched panoramic imaging seamlessly fuses two lenses to expand the field of view, reduce blind spots, and cut the number of install points—lowering deployment costs.
4K (8MP) resolution paired with smart video enhancement boosts clarity and readability in backlight and low‑light scenes for more reliable evidence.
Color at Night for Stronger Evidence
Ultra‑low light ColorPro night vision delivers vivid color imaging in dark environments, preserving key identifiers like faces, apparel, and vehicle colors.
Smarter Detection, Precise Alerts
People & Vehicle Analytics and Human & Vehicle Classification distinguish targets to reduce false alarms; smart detection supports behaviors like intrusion, loitering, and line crossing to focus on real threats.
Red‑blue warning lights and sound alerts provide visible and audible deterrence for proactive prevention and faster on‑site intervention.
Easy Integration, Efficient Bandwidth
Audio and alarm interface enables linkage with external microphones, speakers, and sirens for a local response loop.
H.265+ compression maintains image quality while significantly reducing bandwidth and storage costs.
Built Tough for the Outdoors
IP67 weatherproofing and IK10 vandal-proof resistance ensure long‑term reliability in harsh environments with minimal maintenance.
Panoramic Coverage, Richer Details
Dual‑lens stitched panoramic imaging seamlessly fuses two lenses to expand the field of view, reduce blind spots, and cut the number of install points—lowering deployment costs.
4K (8MP) resolution paired with smart video enhancement boosts clarity and readability in backlight and low‑light scenes for more reliable evidence.
Color at Night for Stronger Evidence
Ultra‑low light ColorPro night vision delivers vivid color imaging in dark environments, preserving key identifiers like faces, apparel, and vehicle colors.
Smarter Detection, Precise Alerts
People & Vehicle Analytics and Human & Vehicle Classification distinguish targets to reduce false alarms; smart detection supports behaviors like intrusion, loitering, and line crossing to focus on real threats.
Red‑blue warning lights and sound alerts provide visible and audible deterrence for proactive prevention and faster on‑site intervention.
Easy Integration, Efficient Bandwidth
Audio and alarm interface enables linkage with external microphones, speakers, and sirens for a local response loop.
H.265+ compression maintains image quality while significantly reducing bandwidth and storage costs.
Built Tough for the Outdoors
IP67 weatherproofing and IK10 vandal-proof resistance ensure long‑term reliability in harsh environments with minimal maintenance.
Products specifications
| Weight & dimensions | |
| Width | 116 mm |
| Height | 90 mm |
| Length | 266 mm |
| Weight | 1.12 kg |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Power | |
| Power source type | DC, PoE |
| Power consumption (max) | 18 W |
| Power consumption (Power over Ethernet (PoE)) | 21 W |
| DC output voltage | 12 |
| Management features | |
| Web-based management | Yes |
| Web browser | Yes |
| Cloud-managed | Yes |
| Reset button | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Network | |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.3at |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| Wi-Fi | No |
| Bluetooth | No |
| SIM card slot | Yes |
| SIM card type | MicroSIM |
| Live view | Yes |
| Design | |
| Form factor | Bullet |
| Mounting type | Wall |
| Product colour | White |
| Housing material | Metal |
| Protection features | Waterproof |
| International Protection (IP) code | IP67 |
| IK code | IK10 |
| Weatherproof | Yes |
| Performance | |
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| Maximum operating distance | 76 m |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Remote viewing | Yes |
| Dynamic range | 120 dB |
| Packaging content | |
| Number of cameras | 1 |
| Mounting kit | Yes |
| Screws included | Yes |
| Drilling template included | Yes |
| Manual | Yes |
| Security | |
| Built-in siren | Yes |
| Password protection | Yes |
| Video motion detection | Yes |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Alert notification type | Push notification |
| Motion sensor | Yes |
| Mirror | Yes |
| Human and vehicle targets classification | Yes |
| Digest authentication | Yes |
| Audio | |
| Built-in speaker(s) | Yes |
| Audio system | 2-way |
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Audio formats supported | G.711 A-law |
| Sample rate | 8 kHz |
| Built-in microphone | Yes |
| Number of microphones | 1 |
| Bit rate range | 0 - 64 Kbit/s |
| Storage | |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 512 GB |
| Camera | |
| Minimum illumination | 0 lx |
| Lens viewing angle, horizontal | 180° |
| Lens viewing angle, vertical | 51° |
| Lens viewing angle, diagonal | 180° |
| Tilt angle range | 0 - 90° |
| Camera shutter speed | 1/3 to 1/10000 |
| Lens system | |
| Detect distance | 76 m |
| Observe distance | 29 m |
| Recognize distance | 14 m |
| Fixed focus | Yes |
| Fixed focal length | 5 mm |
| Video | |
| Maximum resolution | 5456 x 1520 pixels |
| Total megapixels | 8 MP |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Video recording | Yes |
| Image quality adjustment | Brightness, Contrast, Mirror, Saturation, Sharpness |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bit rate | Main Stream: 256 Kbps to 8 Mbps, Sub-Stream: 64 Kbps to 1024 Kbps |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Image sensor | |
| Optical sensor size | 25.4 / 1.79 mm (1 / 1.79") |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Night vision | |
| Night vision | Yes |
| LED type | IR/White |
| Panoramic camera | |
| Sensor type (panoramic camera) | CMOS |
*
*
*
